Monitoring System

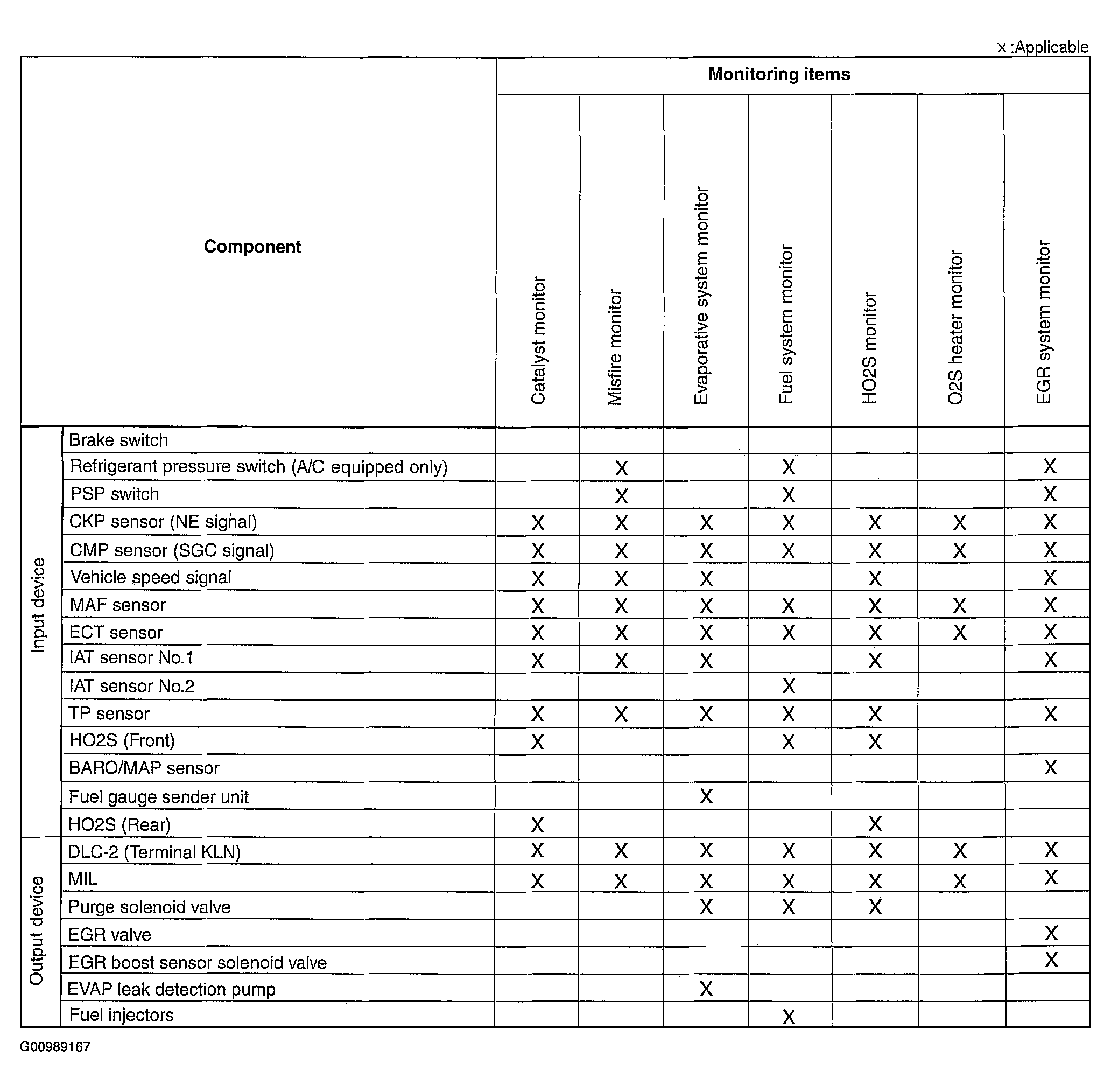

Fig 1: Control System Device & Control Relationship Chart - BP With TC (Monitoring System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
