DTC P1608: Pcm Internal Circuit Malfunction
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P1608: Pcm Internal Circuit Malfunction: Notes

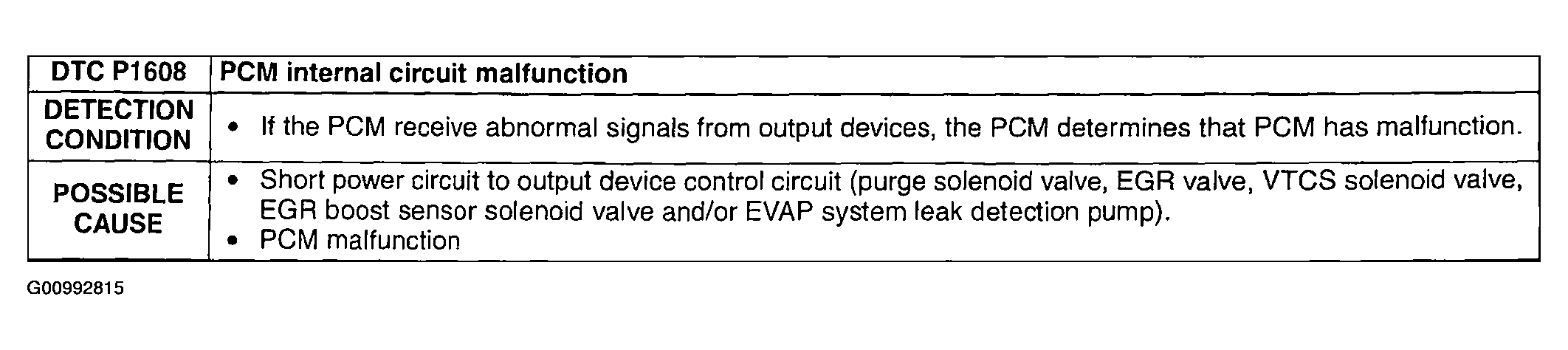

Fig 1: Possible Causes - DTC P1608 [BP, BP With TC
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
