DTC Table

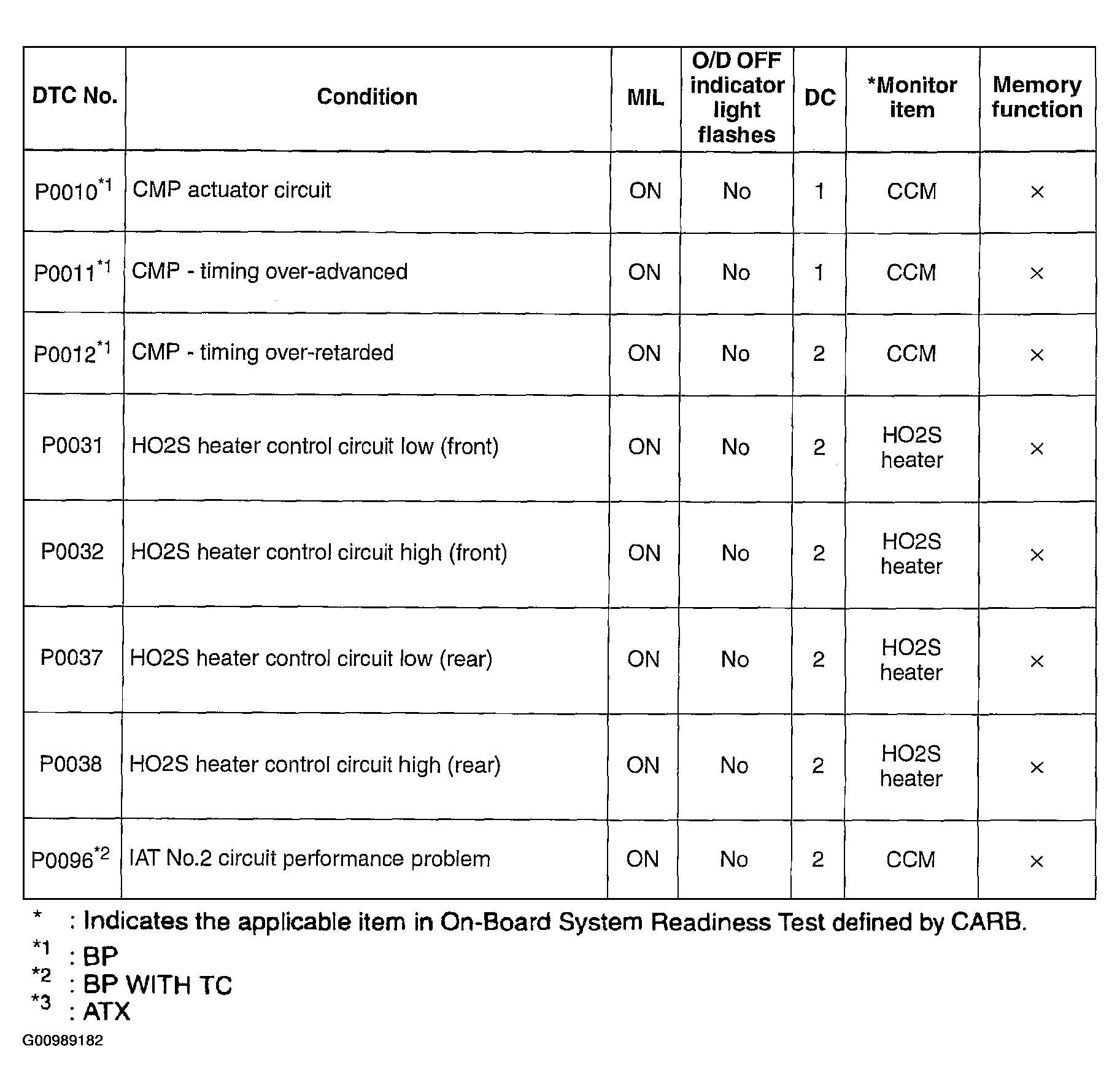

Fig 1: DTC Table [BP, BP With TC] (P0010-P0096)

G00989182

Courtesy of MAZDA MOTORS CORP.

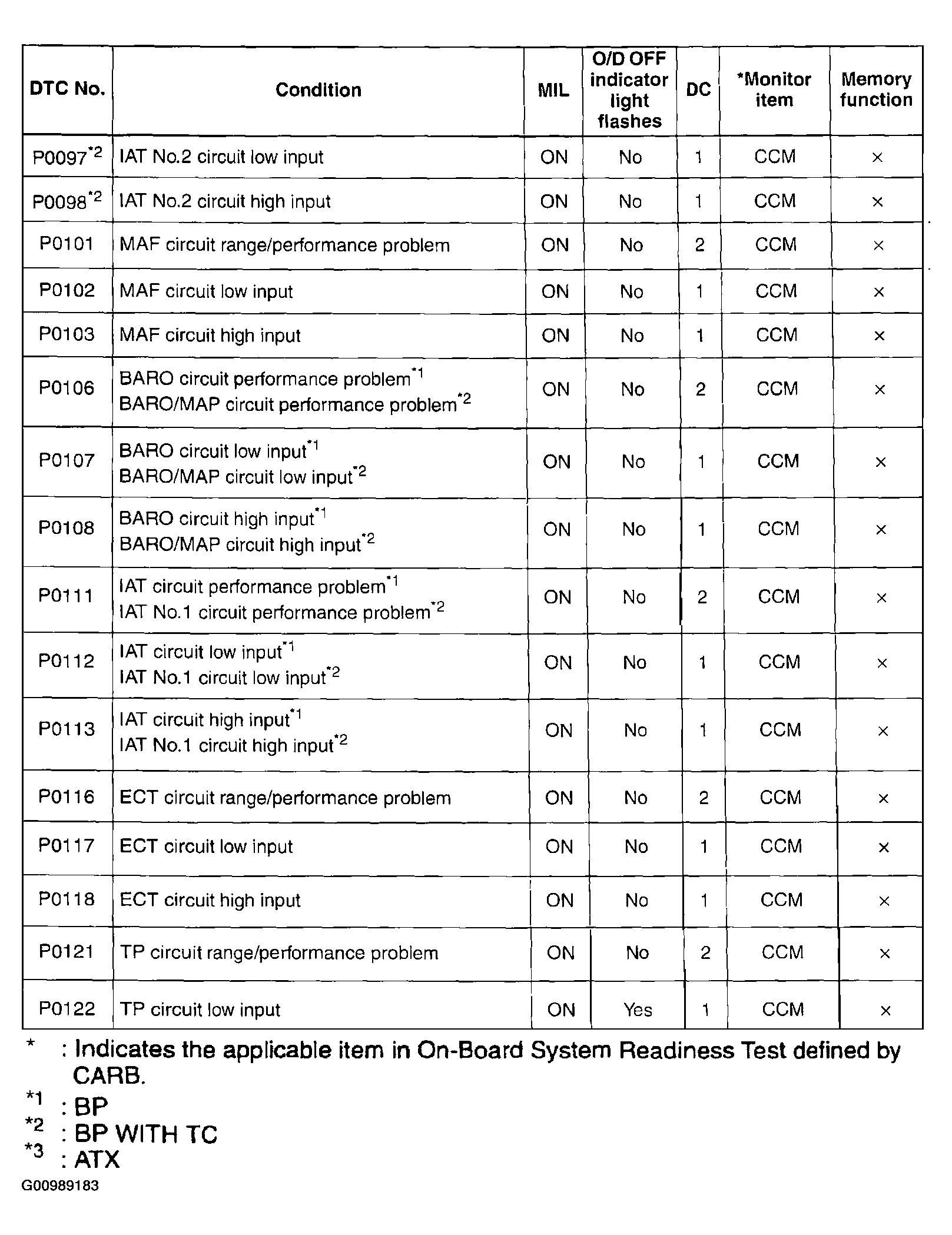

Fig 2: DTC Table [BP, BP With TC] (P0097-P0122)

G00989183

Courtesy of MAZDA MOTORS CORP.

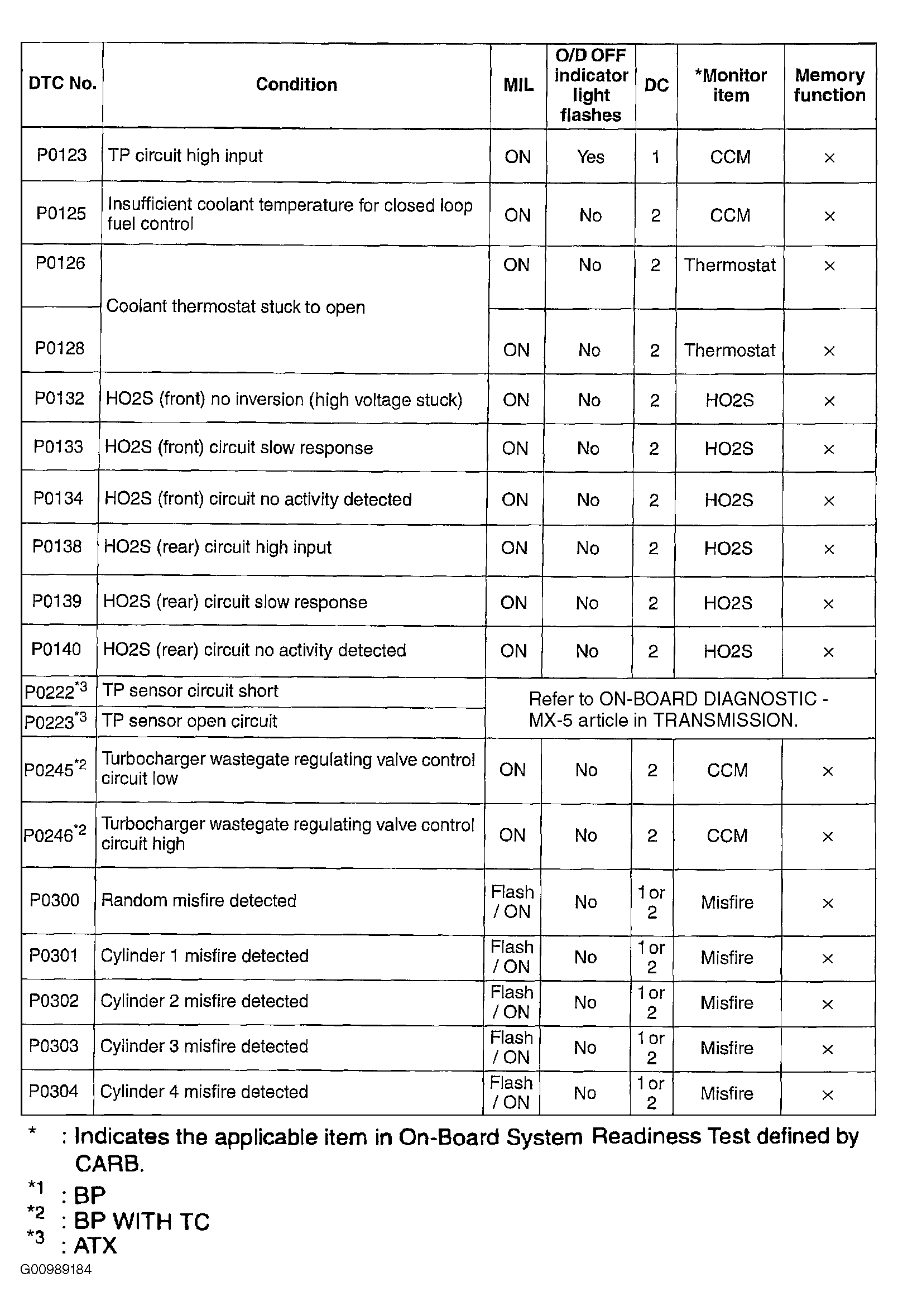

Fig 3: DTC Table [BP, BP With TC] (P0123-P0304)

G00989184

Courtesy of MAZDA MOTORS CORP.

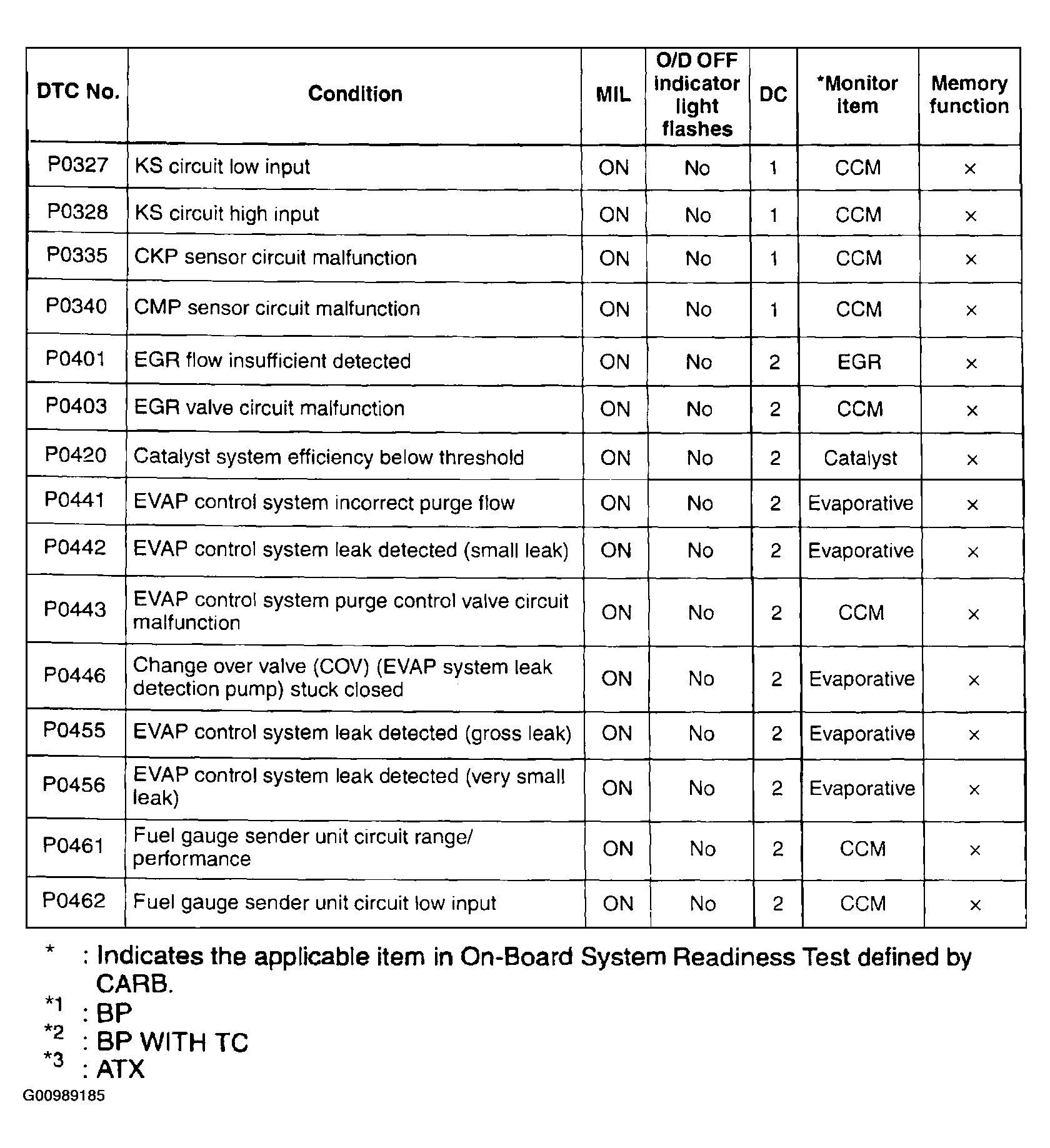

Fig 4: DTC Table [BP, BP With TC] (P0327-P0462)

G00989185

Courtesy of MAZDA MOTORS CORP.

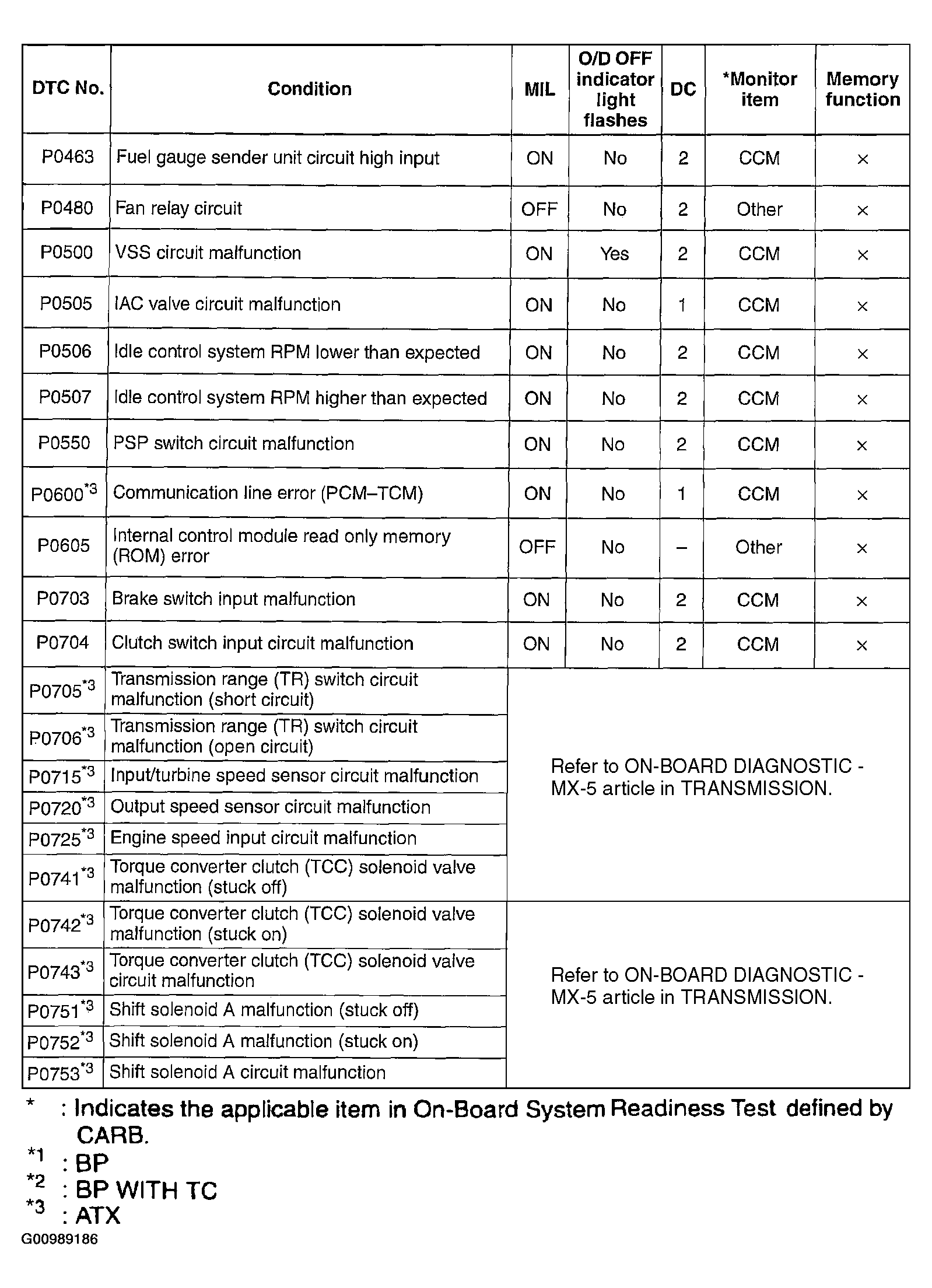

Fig 5: DTC Table [BP, BP With TC] (P0463-P0753)

G00989186

Courtesy of MAZDA MOTORS CORP.

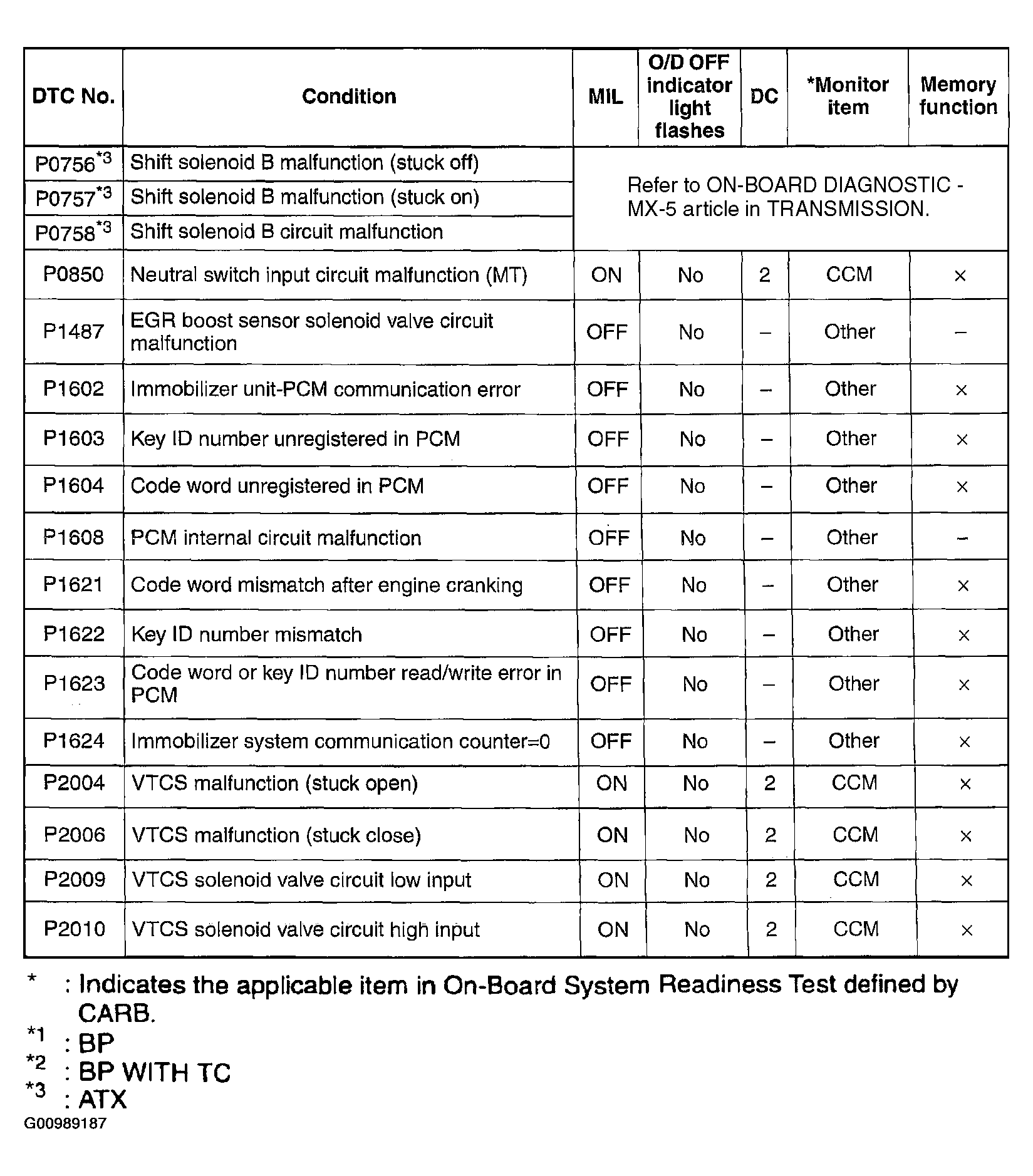

Fig 6: DTC Table [BP, BP With TC] (P0756-P2010)

G00989187

Courtesy of MAZDA MOTORS CORP.

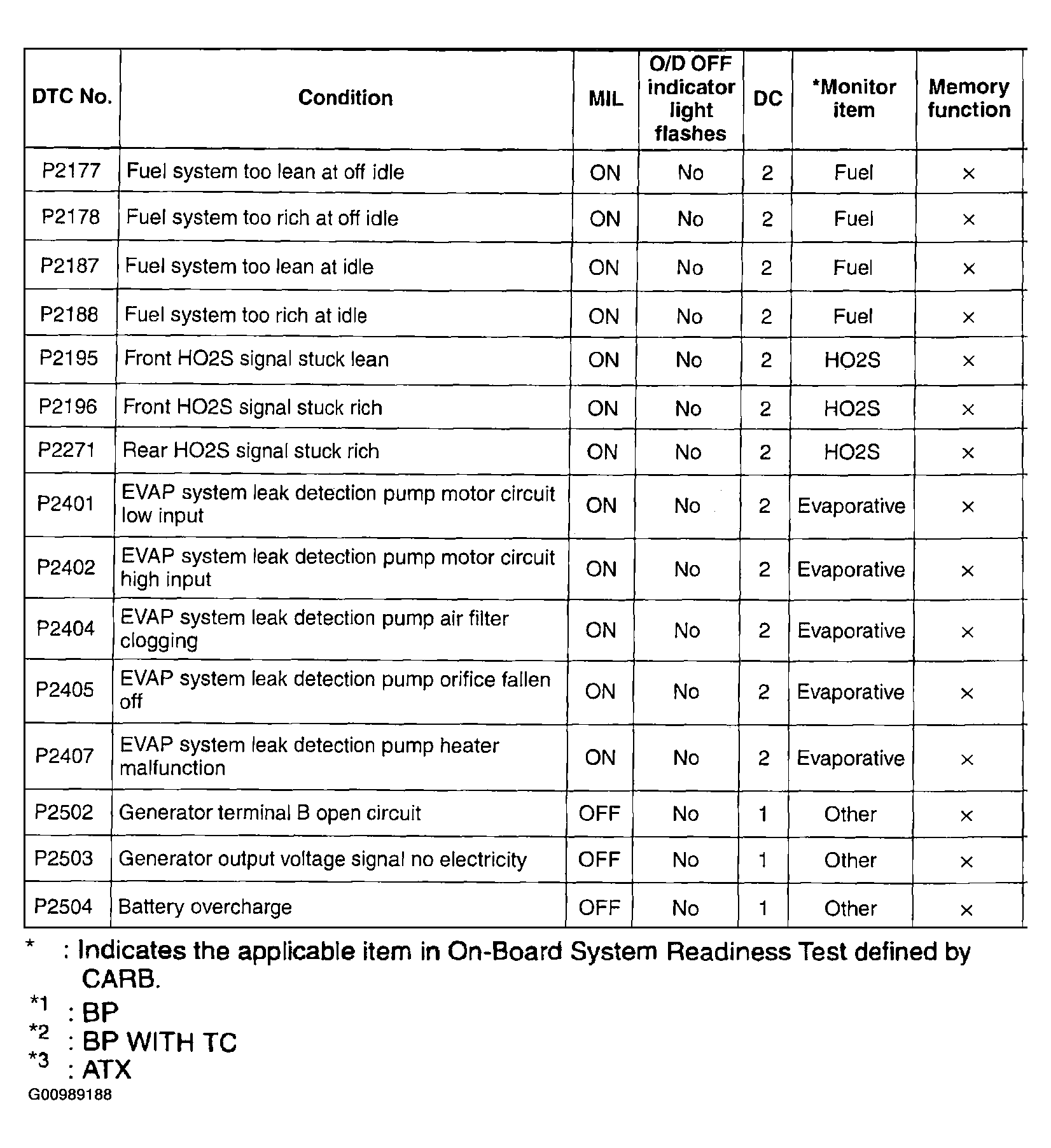

Fig 7: DTC Table [BP, BP With TC] (P2177-P2504)

G00989188

Courtesy of MAZDA MOTORS CORP.

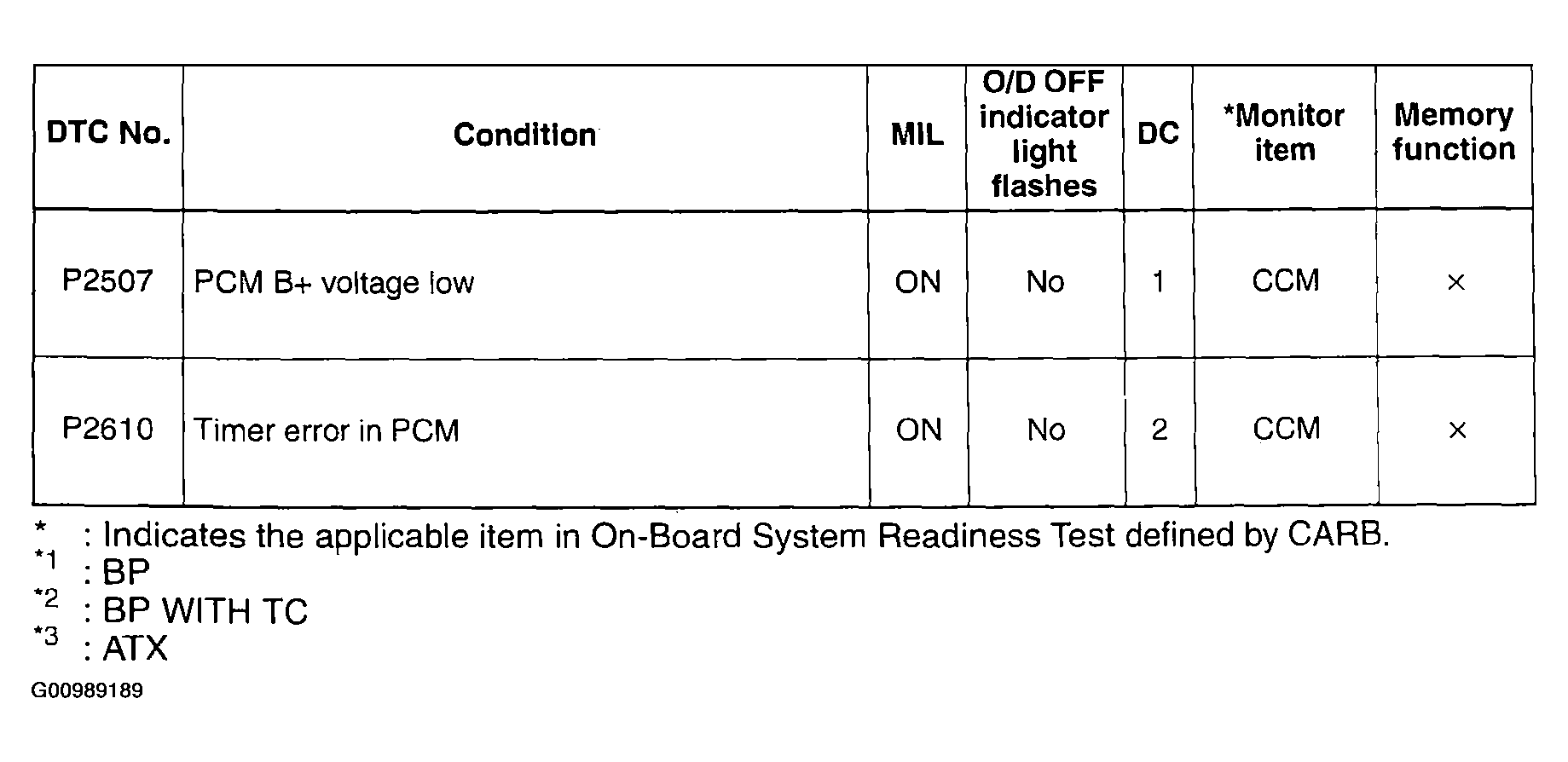

Fig 8: DTC Table [BP, BP With TC] (P2507-P2610)

G00989189

Courtesy of MAZDA MOTORS CORP.
