Engine Control System

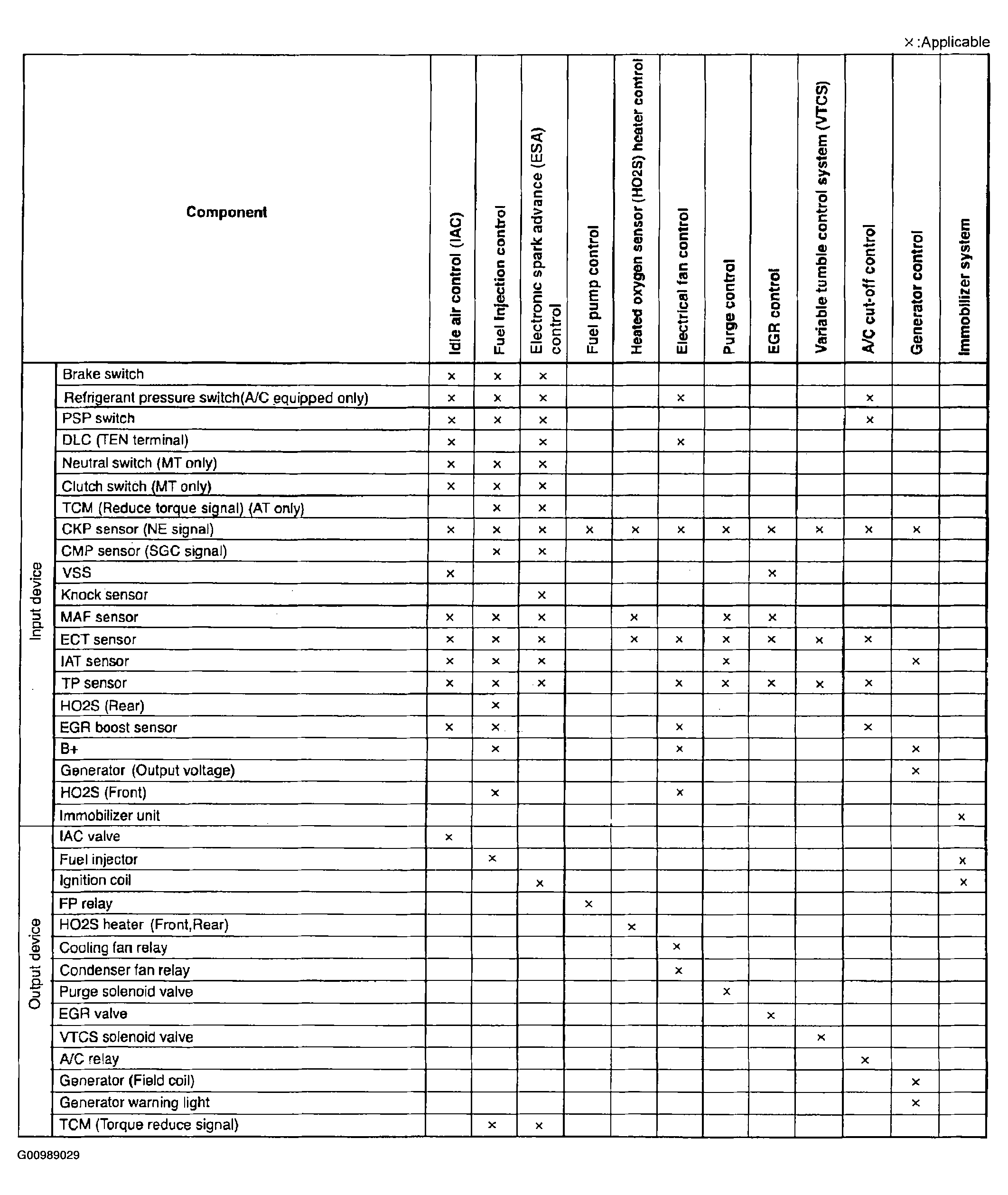

Fig 1: Control System Device & Control Relationship Chart [BP] - Engine Control System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
