Fuel Injector Operation Inspection

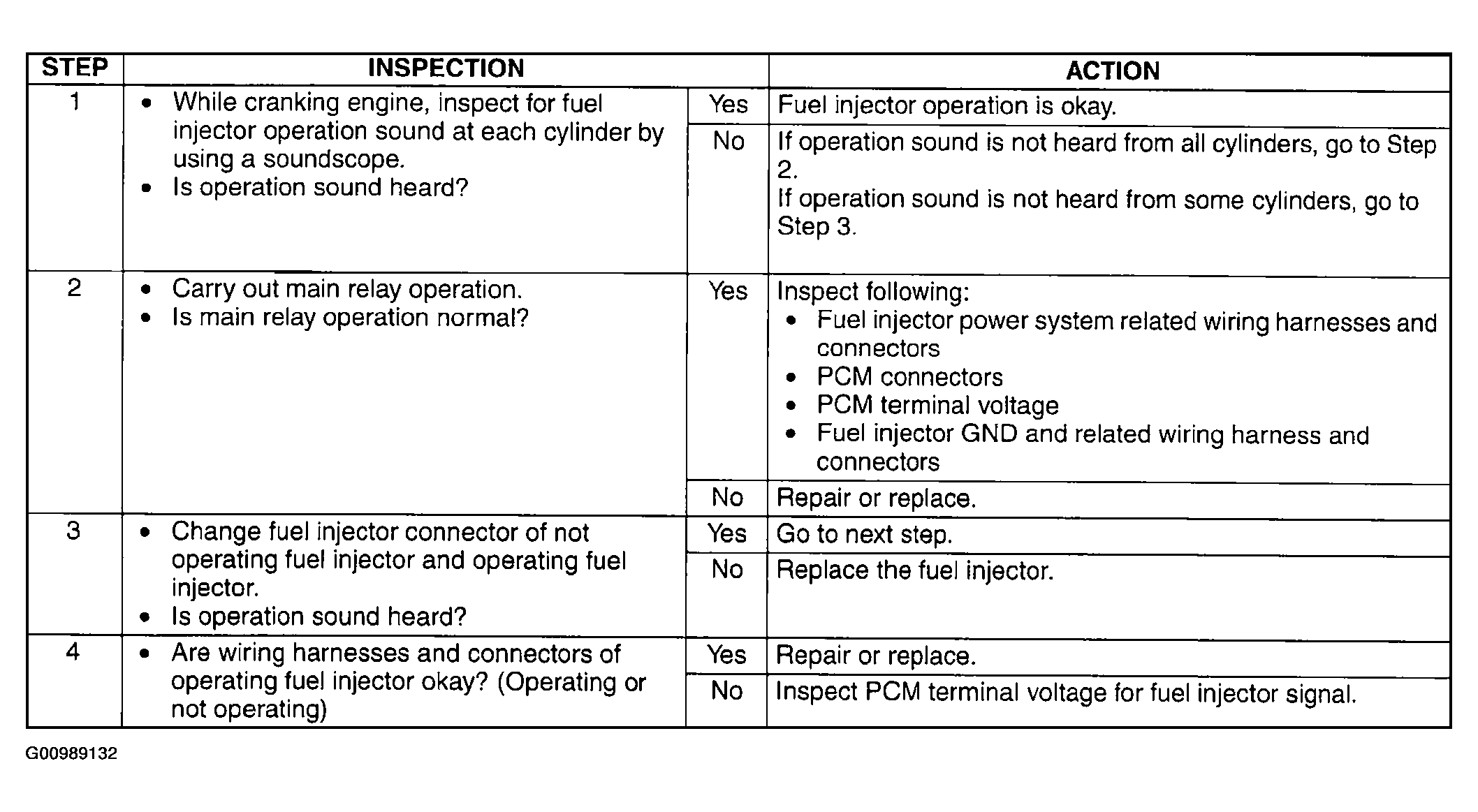

Fig 1: Identifying Fuel Injector Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
