Spark Test
- Disconnect the negative battery cable.
- Disconnect the FP RLY connector.
- Verify that each high-tension lead and connector is connected properly.

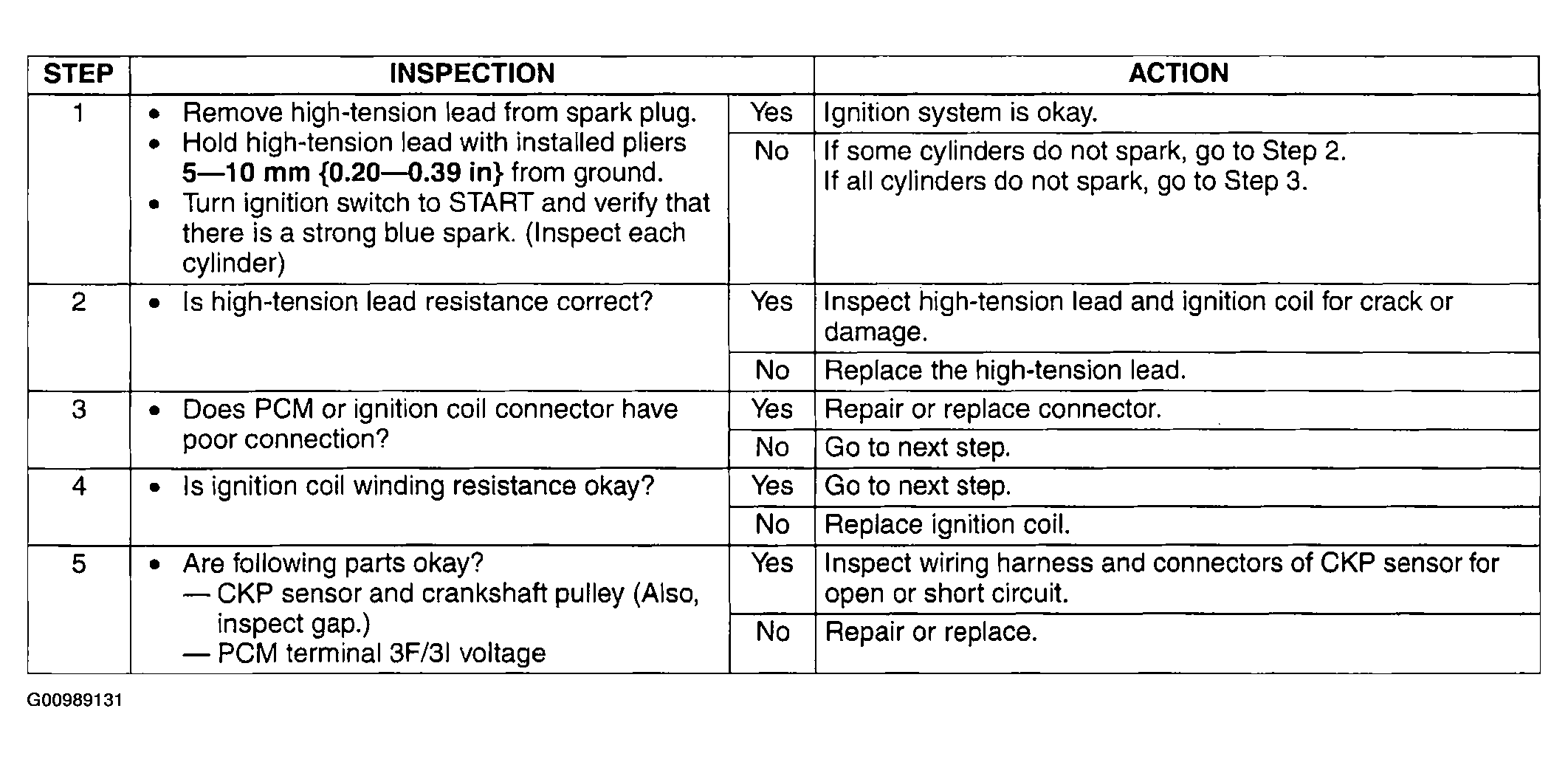

- Inspect the ignition system in the following procedure.WARNING:
- High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.
