Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

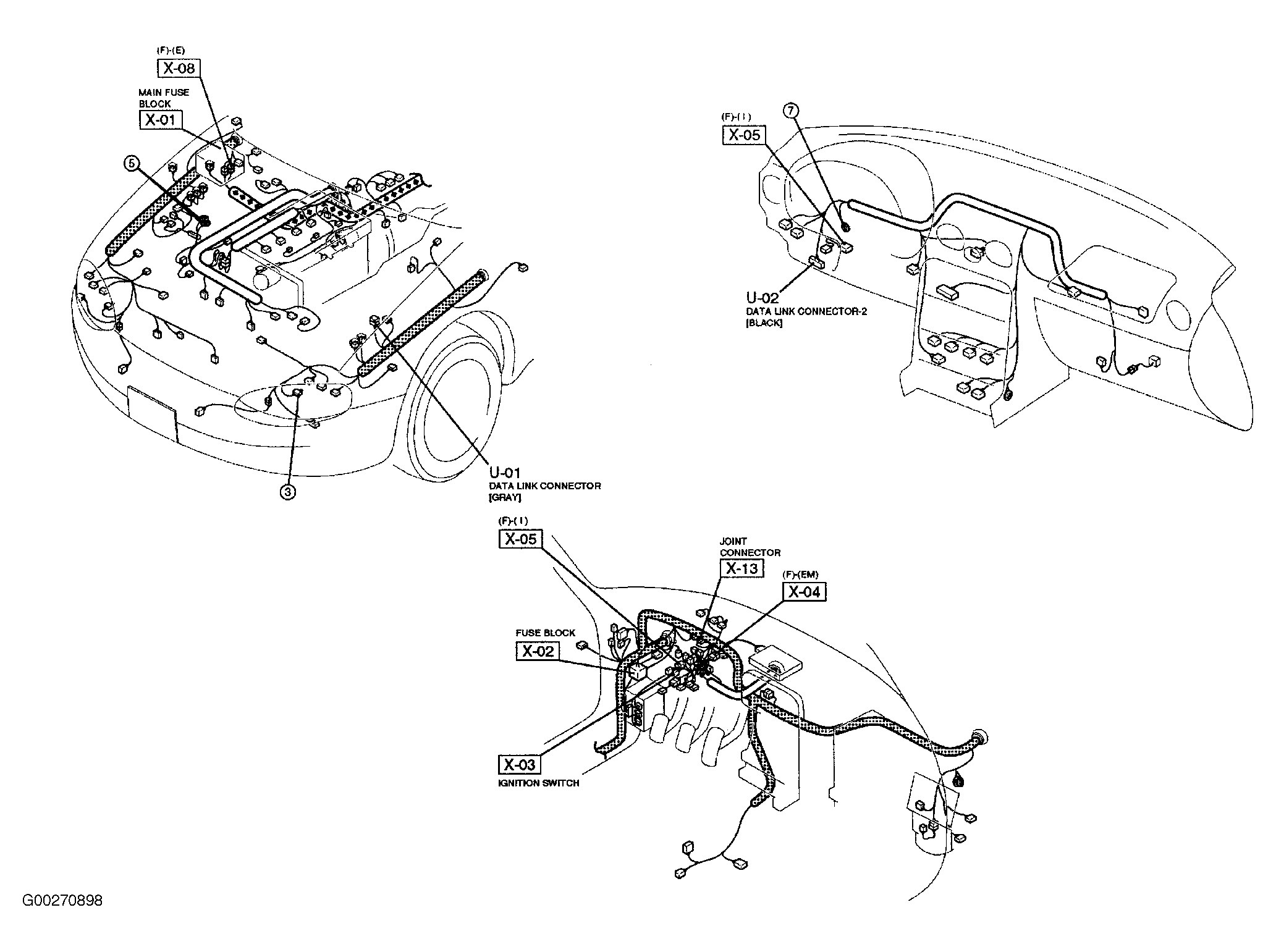

Fuse Block Behind left side of dash. See Figure .

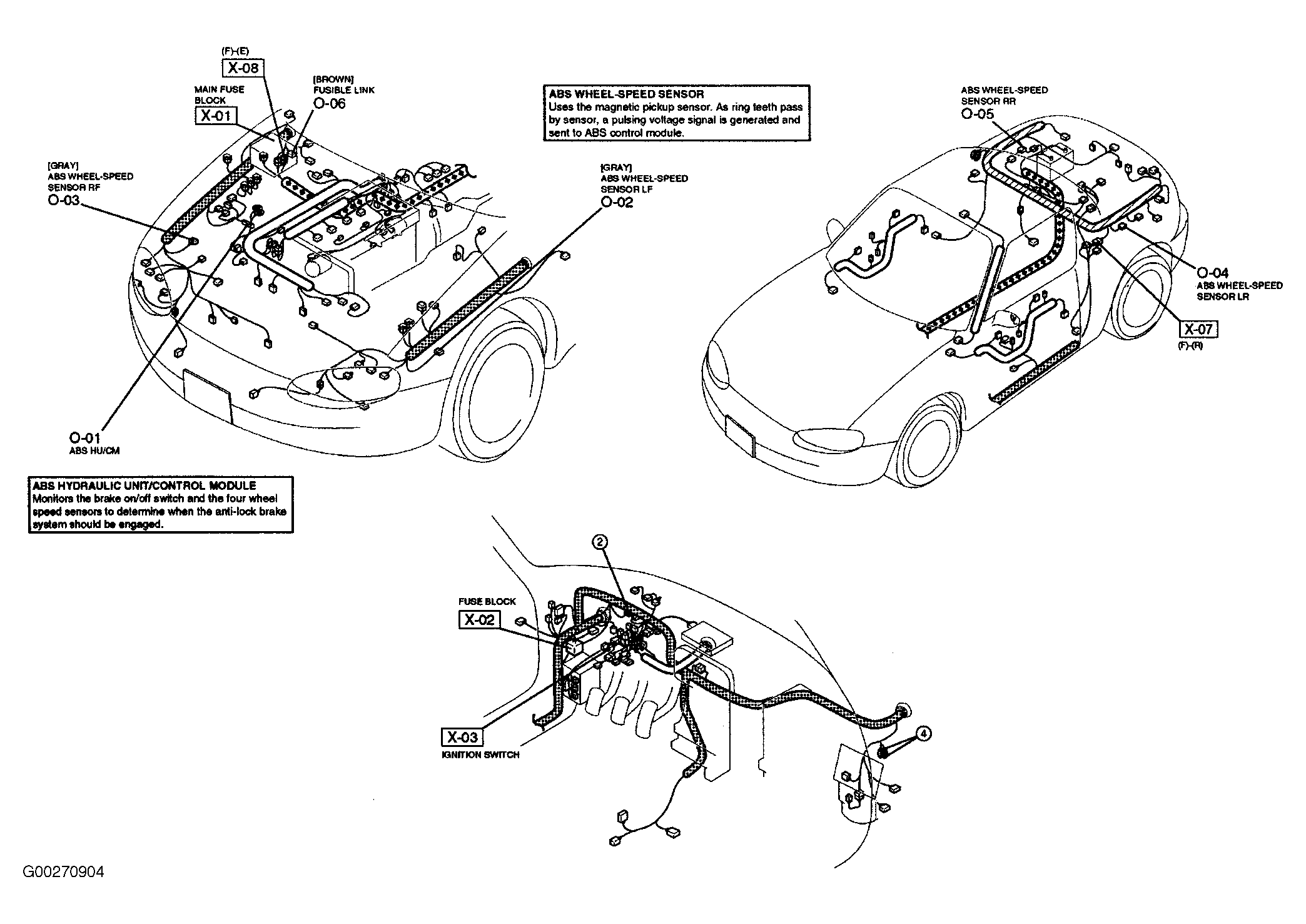

Fusible Link At right rear of engine compartment, behind main fuse block. See Figure .
Main Fuse At right rear of engine compartment.

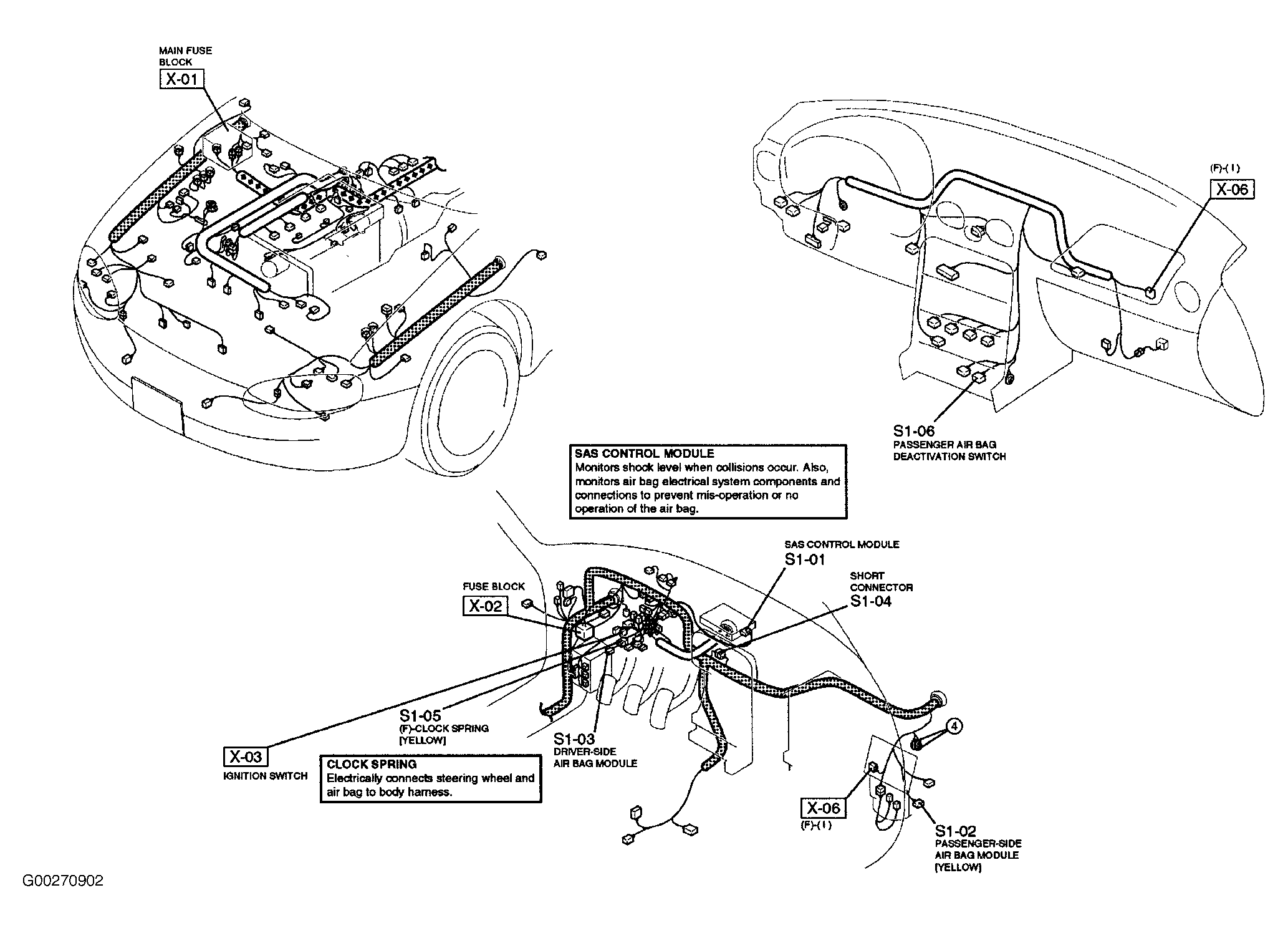

Main Fuse Block At right rear of engine compartment. See Figure .
Thermal Protector At left front of engine compartment.
