Panel Light Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF PANEL LIGHT CONTROL SWITCH

    Removal Order Component
    1 Panel light control switch (See Panel Light Control Switch Removal Note )
    2 Connector
  4. Install in the reverse order of removal.

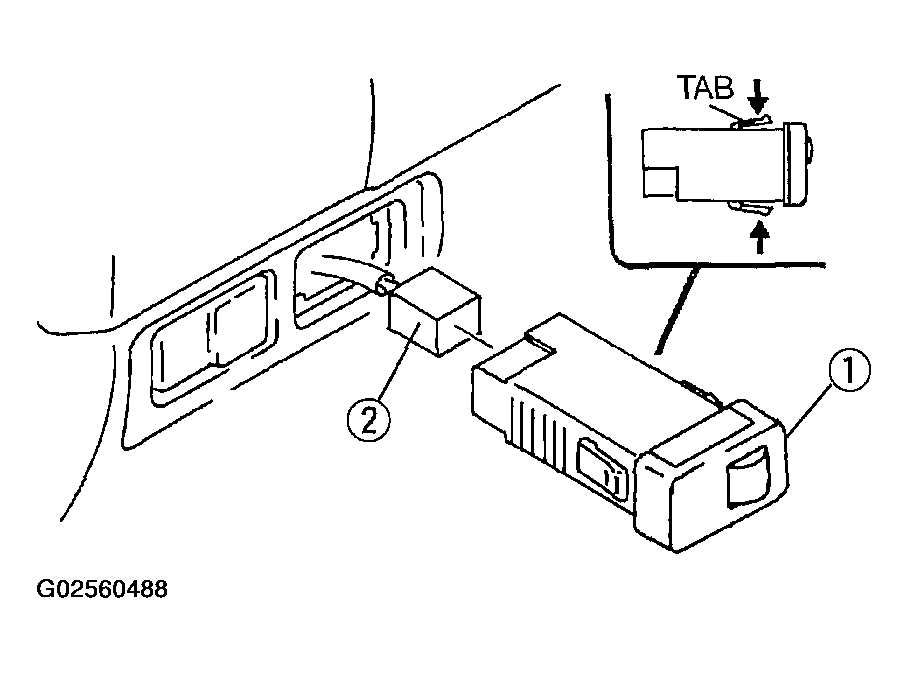

    Fig 1: Removing/Installing Panel Light Control Switch
    G02560488Courtesy of MAZDA MOTORS CORP.
