Outer Mirror Glass Disassembly Note

  1. Press area A of the mirror glass so that area B moves outward.

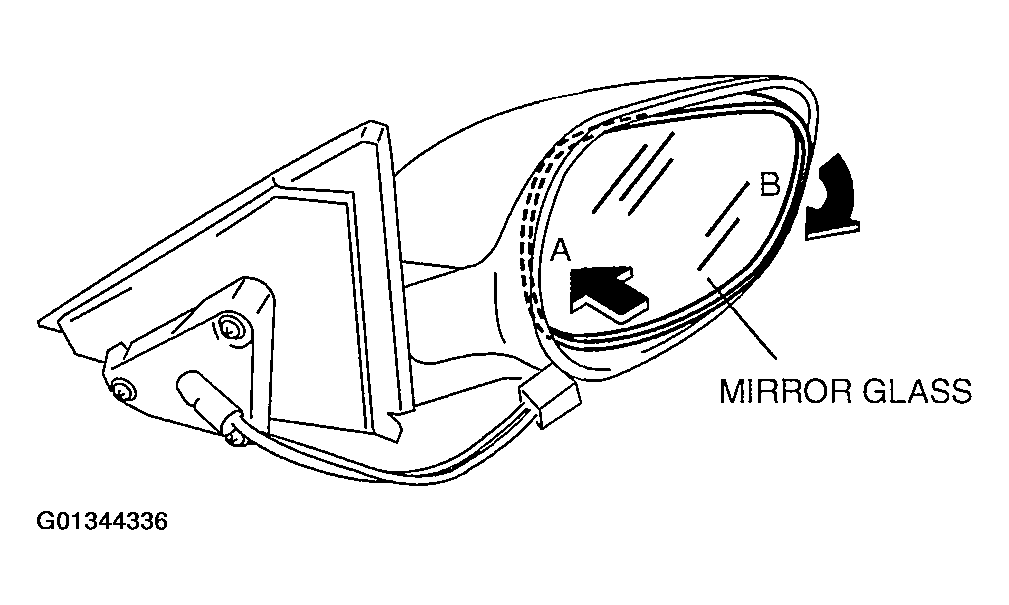

    Fig 1: Pressing Area A Of Mirror Glass So Area B Moves Outward
    G01344336Courtesy of MAZDA MOTORS CORP.
  2. Detach pin A while lifting up the inside of the mirror glass holder.

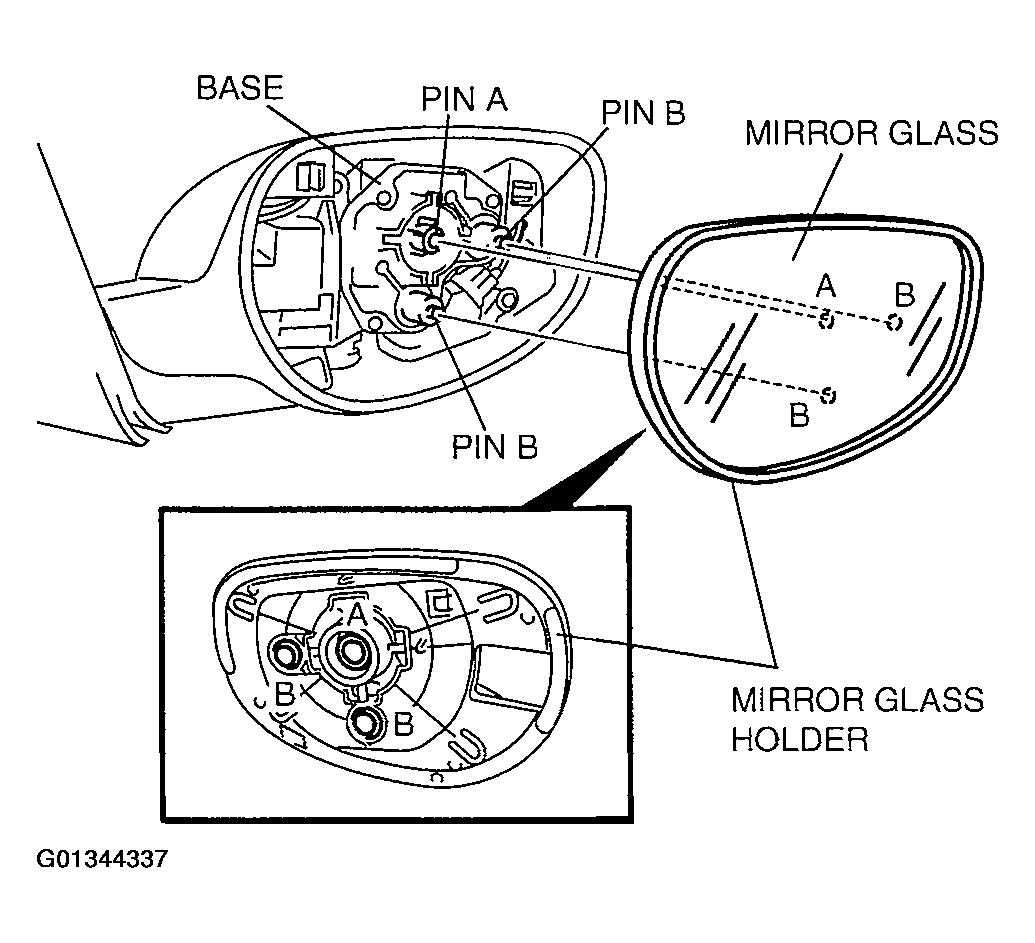

    Fig 2: Disassembling Outer Mirror Glass
    G01344337Courtesy of MAZDA MOTORS CORP.
  3. Pull out the mirror glass holder and detach pins B.
  4. Remove the mirror glass holder and the mirror glass as a single unit.
