Power Window Motor Inspection

Apply battery positive voltage to the power window motor terminals, and inspect the power window motor operation.

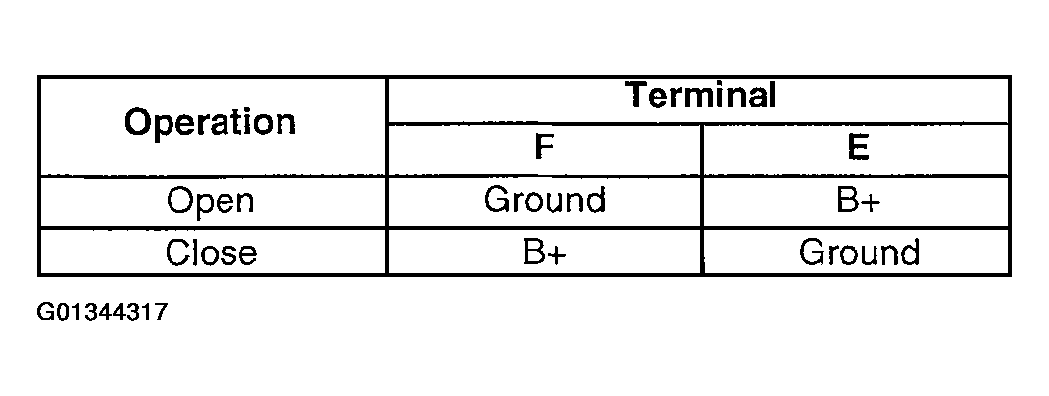

Fig 1: Inspecting Power Window Motor Connector Terminals
Courtesy of MAZDA MOTORS CORP.

If the power window motor does not operate as indicated, replace it.

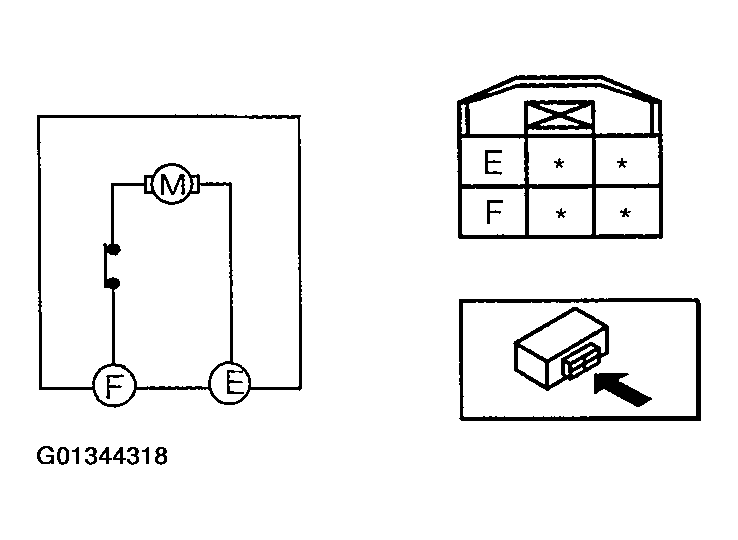

Fig 2: Inspecting Power Window Motor Connector
Courtesy of MAZDA MOTORS CORP.
