Pcm Removal/Installation
- When replacing the PCM, perform the following:
- Remove the battery cover. (See
BATTERY REMOVAL/INSTALLATION
.)

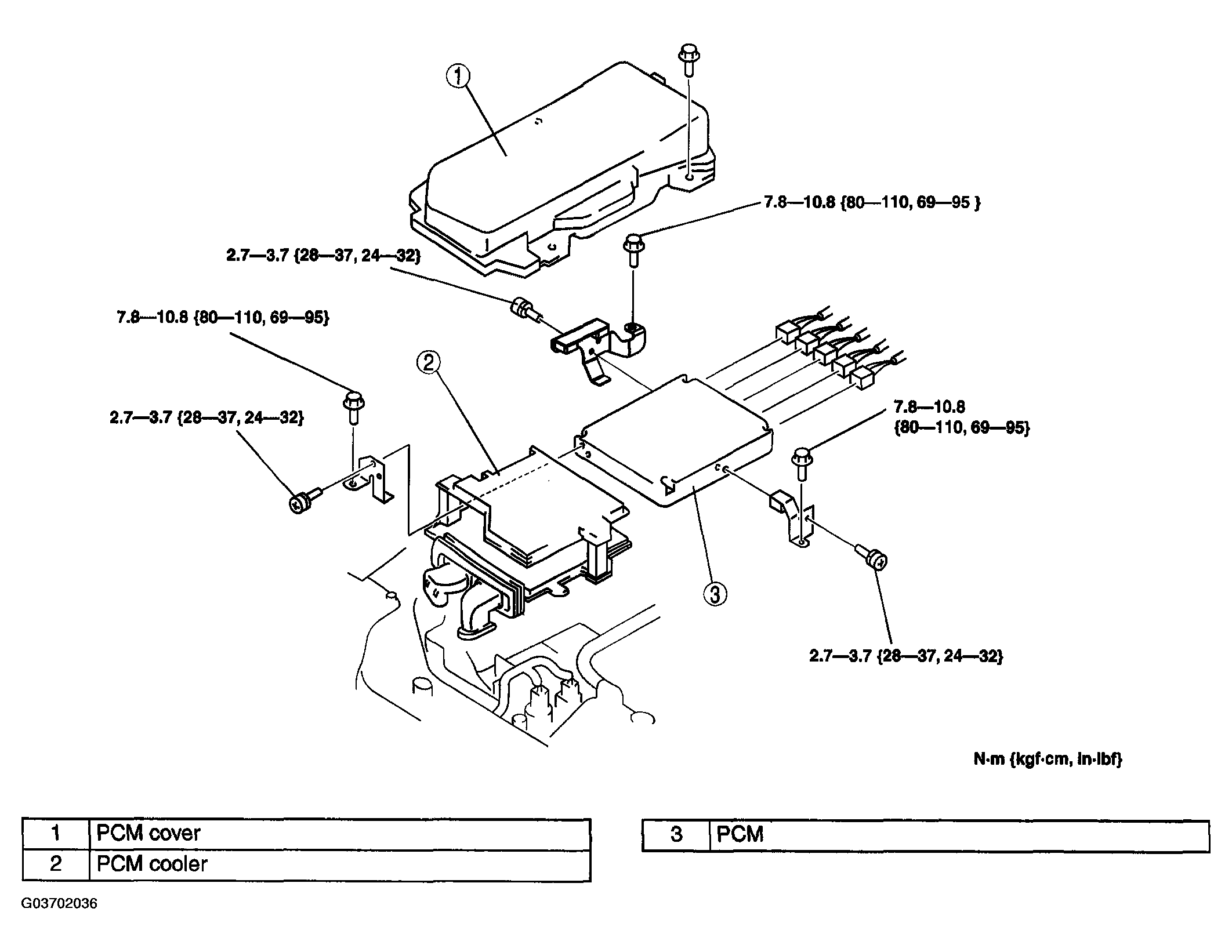

- Remove in the order indicated in the table.
- When replacing the PCM on the vehicles with the immobilizer system, perform the following:
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
