Circuit Open/Short Inspection: Notes

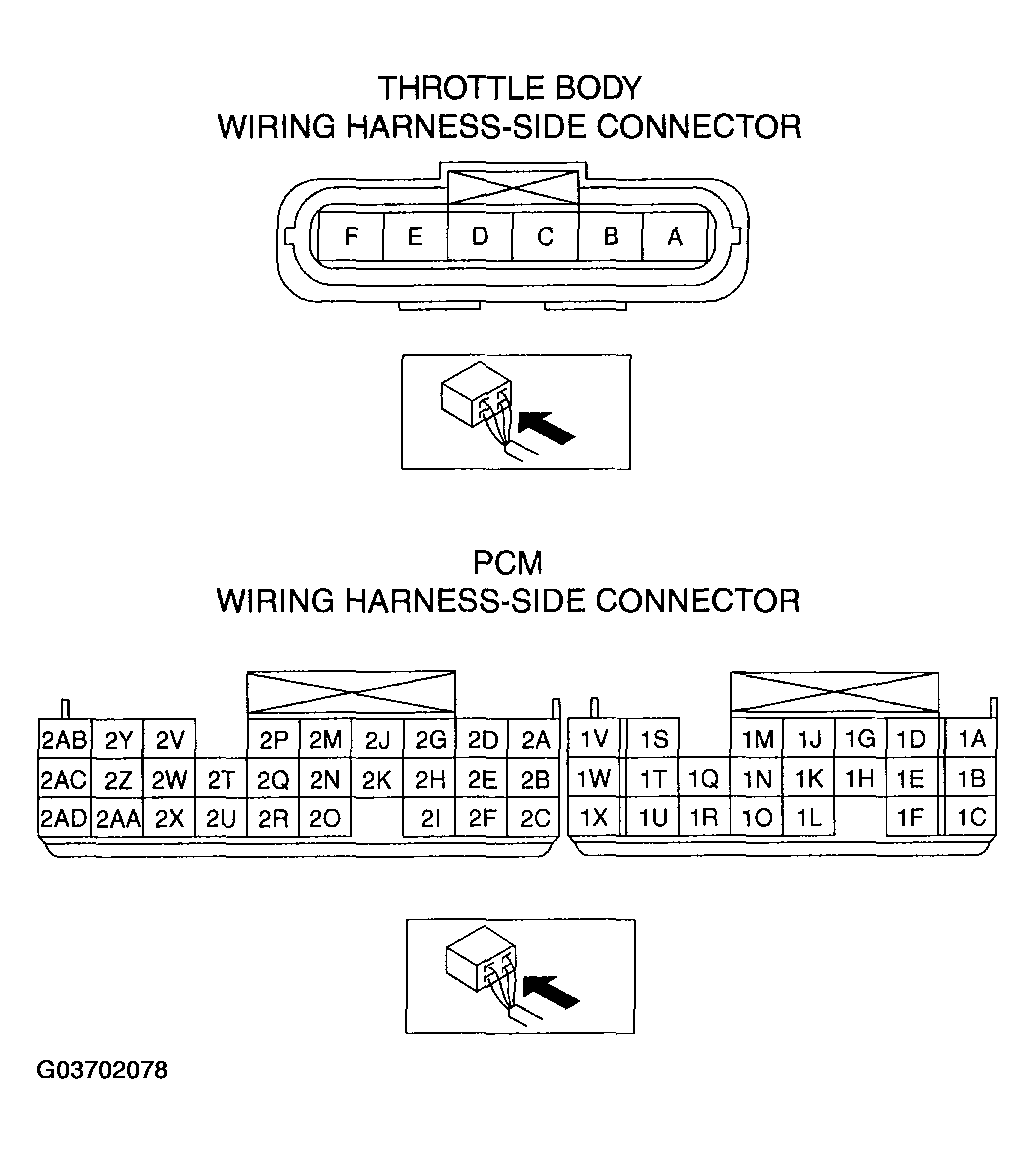

- Disconnect the PCM connector.
- Disconnect the throttle body connector.
- Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)
Courtesy of MAZDA MOTORS CORP.
