DTC P0130: Front Ho2S Circuit Problem

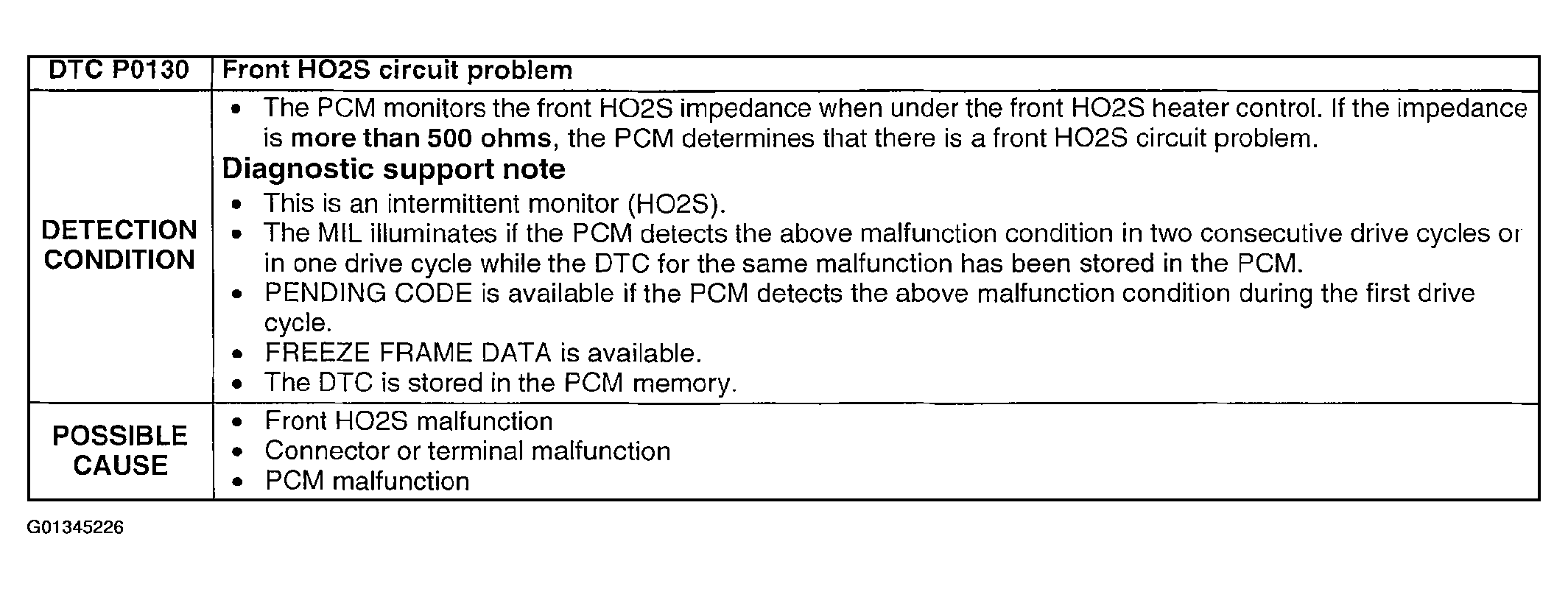

Fig 1: DTC P0130 Detection Condition & Possible Causes Chart
G01345226Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

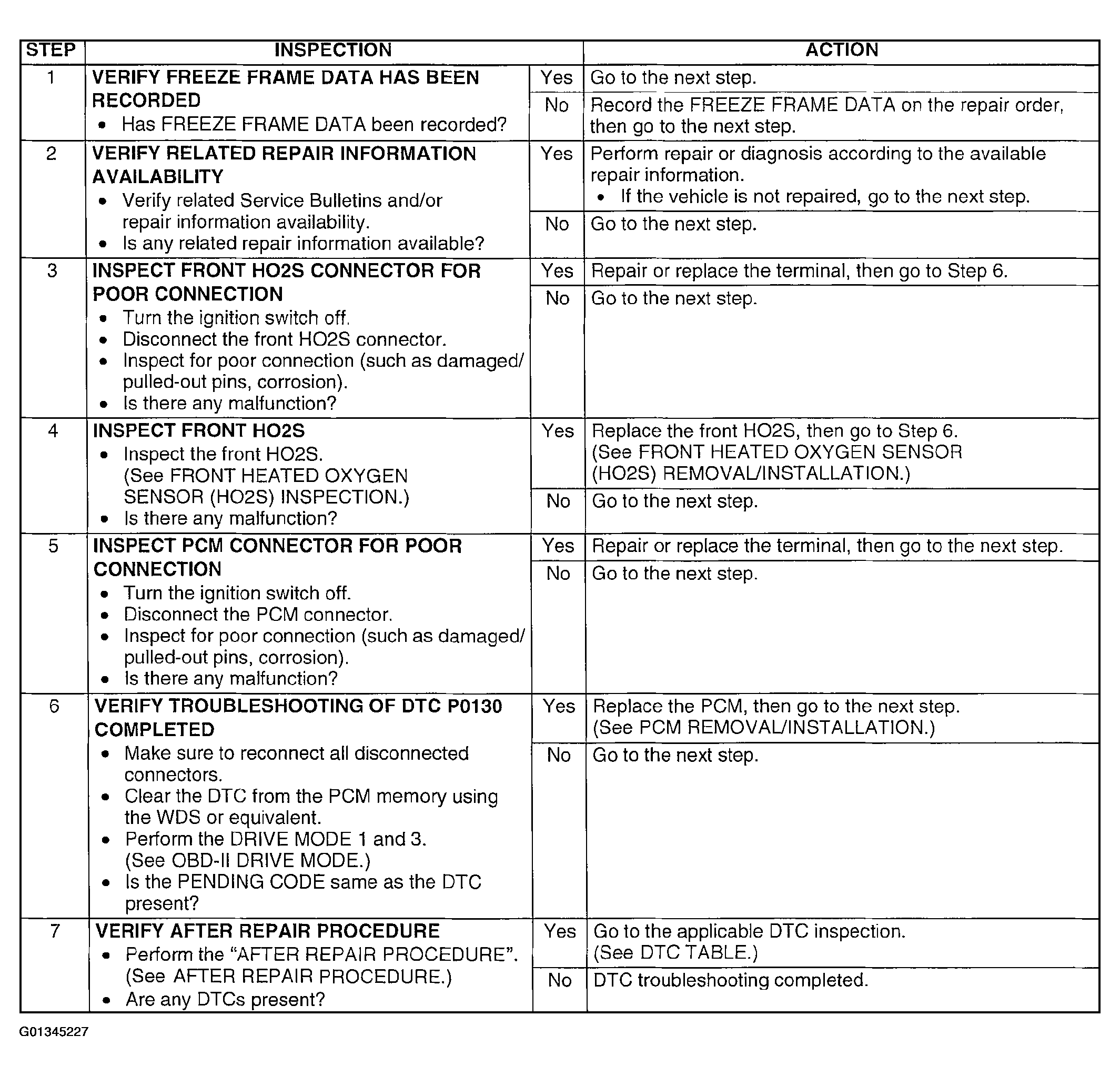

Fig 2: DTC P0130 Diagnostic Procedure Chart
G01345227Courtesy of MAZDA MOTORS CORP.
