DTC P0500: VSS Circuit Problem

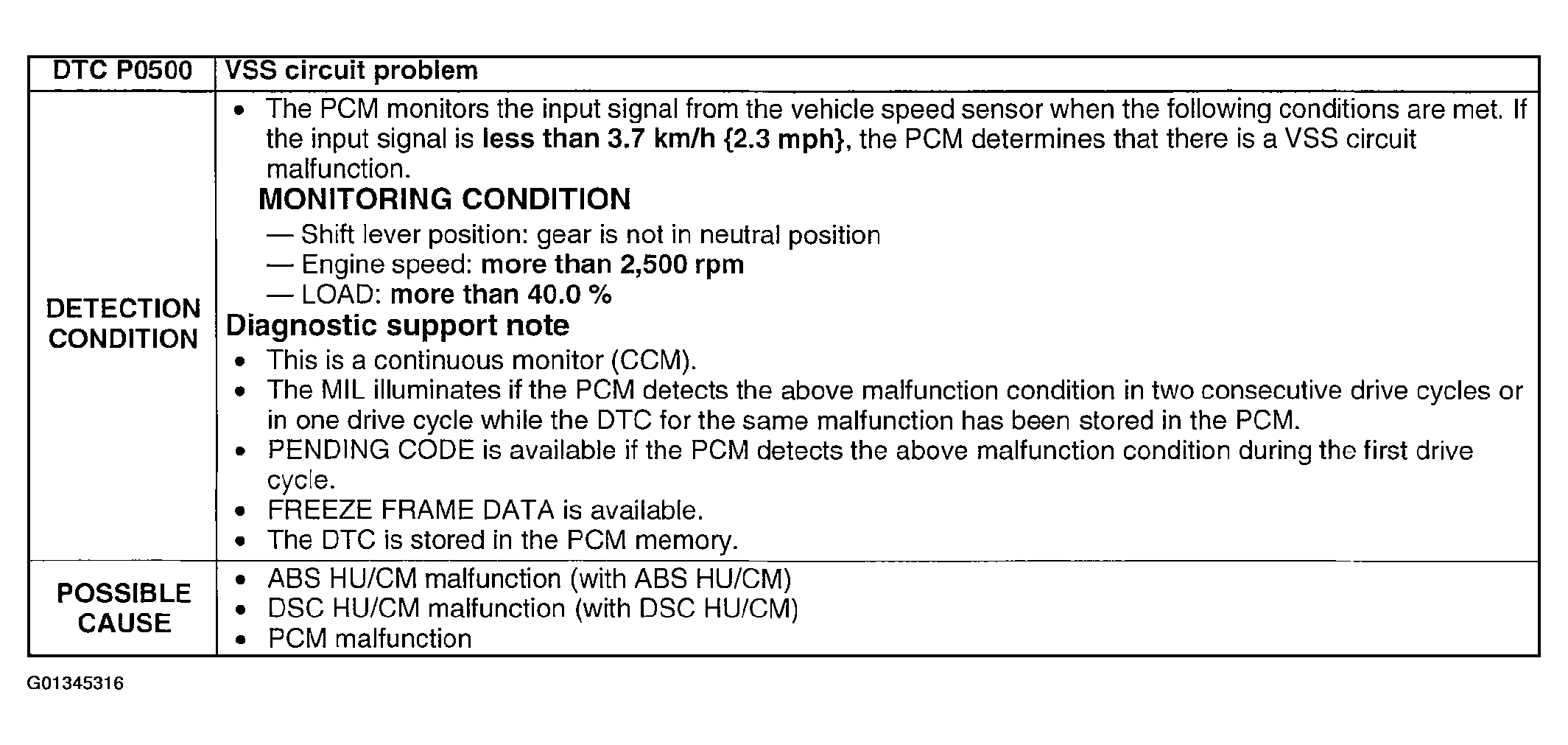

Fig 1: DTC P0500 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

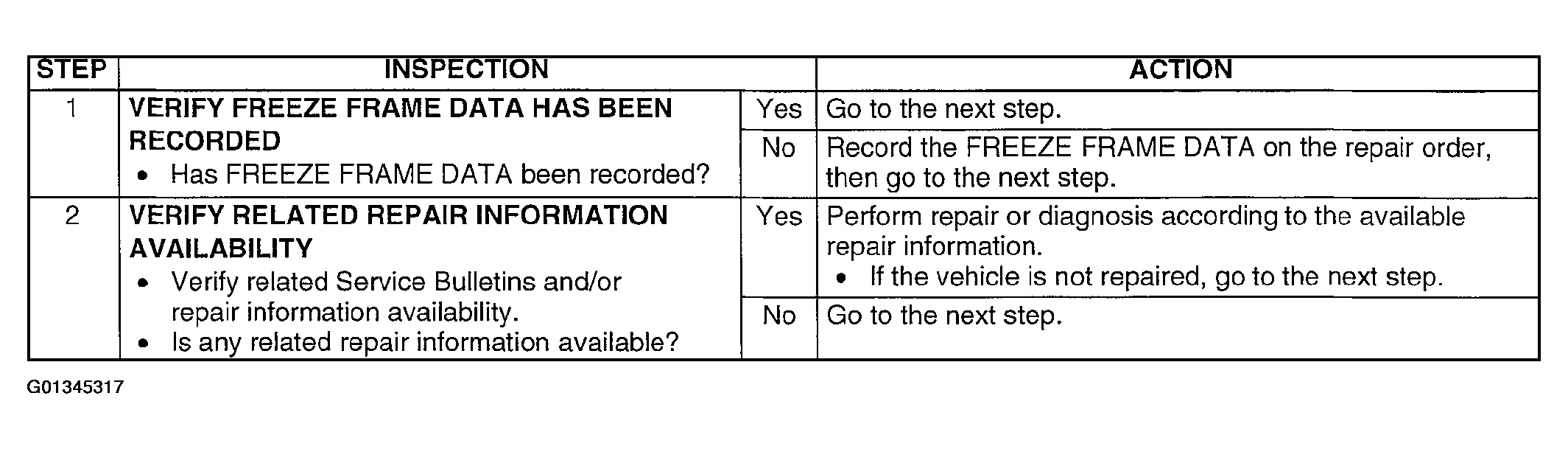

Fig 2: DTC P0500 Diagnostic Procedure Chart (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

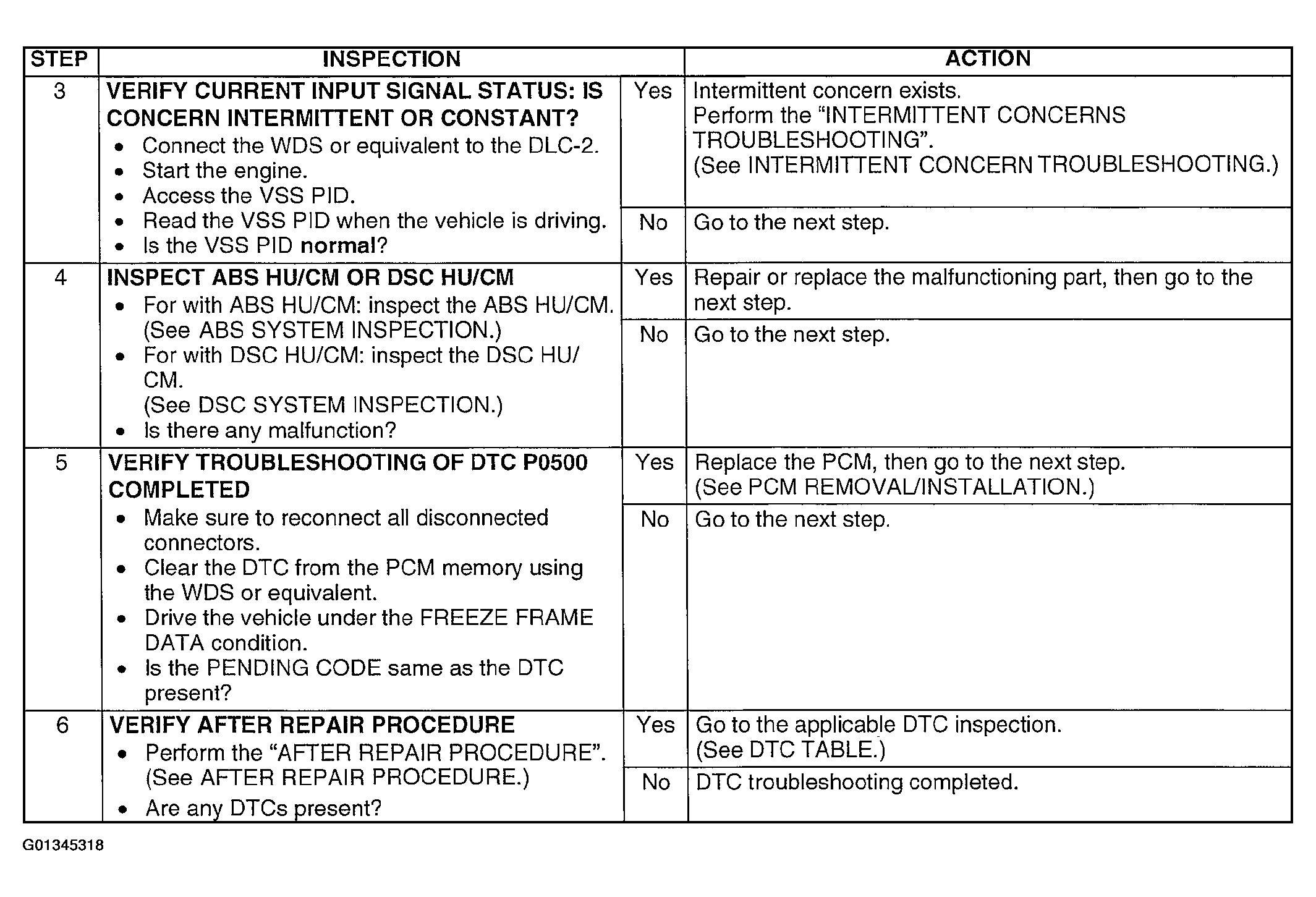

Fig 3: DTC P0500 Diagnostic Procedure Chart (Step 3-6)

Courtesy of MAZDA MOTORS CORP.
