DTC P0505: Idle Air Control System Problem

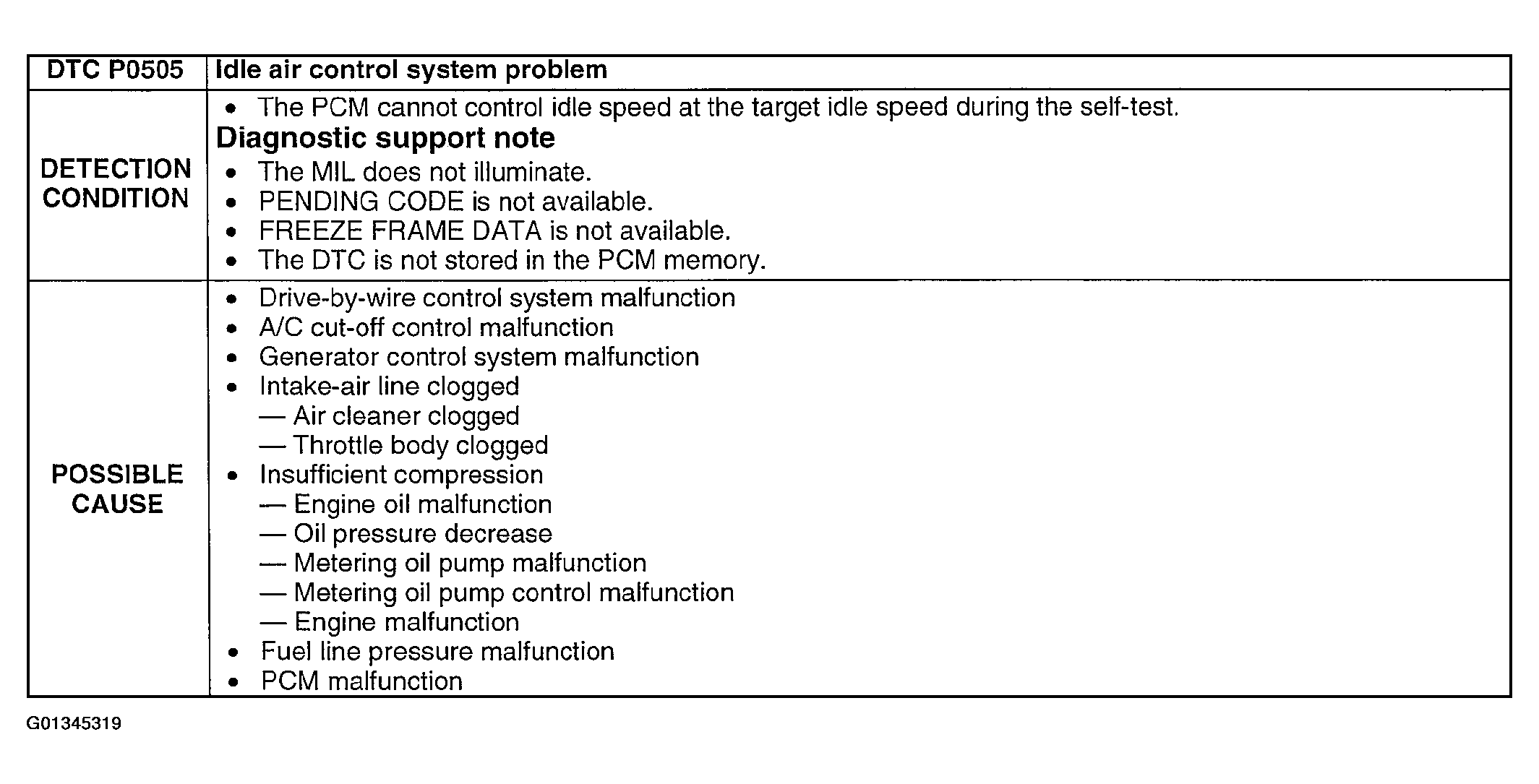

Fig 1: DTC P0505 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

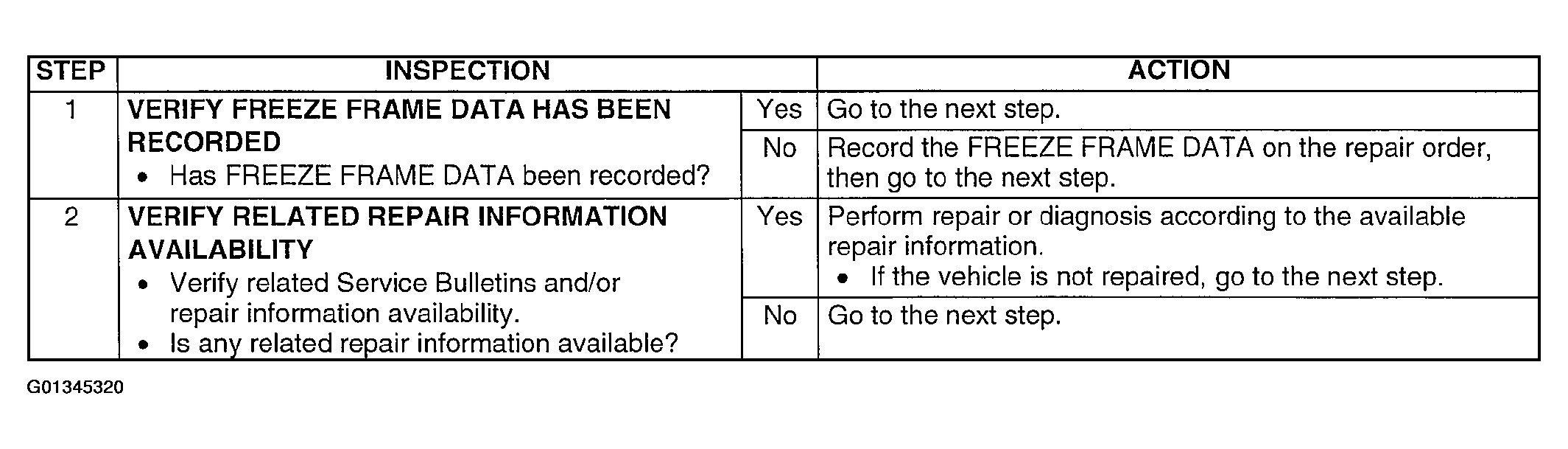

Fig 2: DTC P0505 Diagnostic Procedure Chart (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

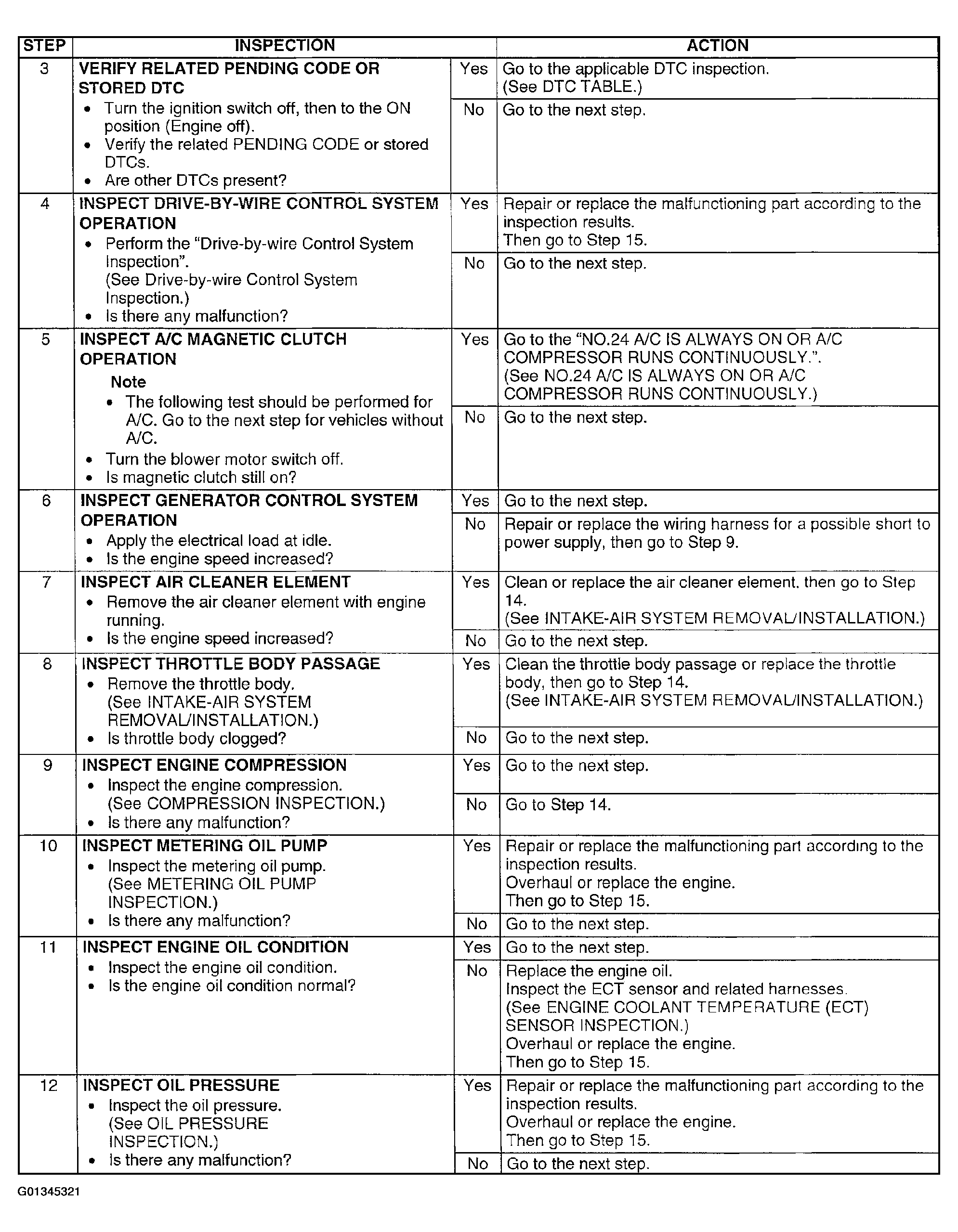

Fig 3: DTC P0505 Diagnostic Procedure Chart (Step 3-12)

Courtesy of MAZDA MOTORS CORP.

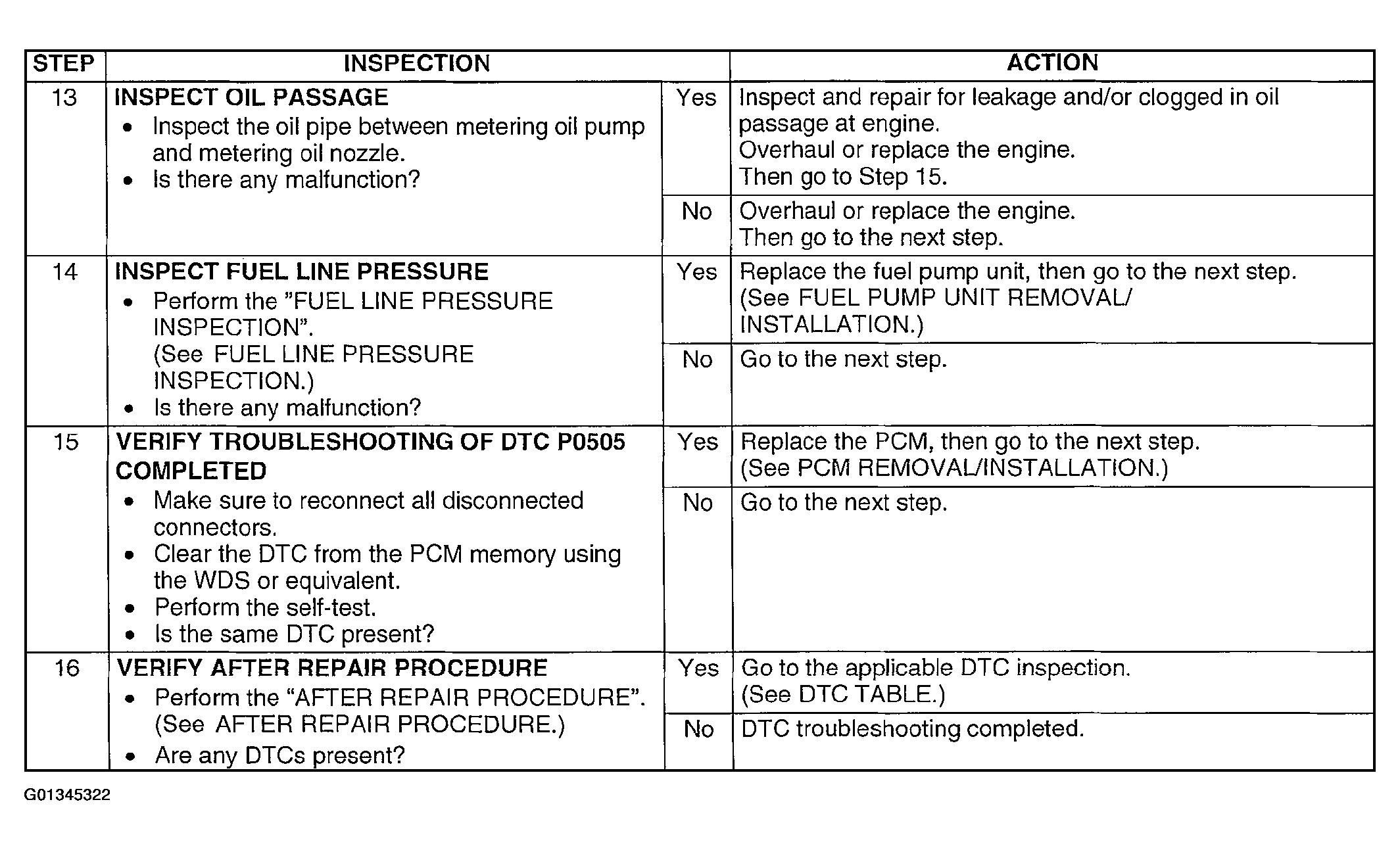

Fig 4: DTC P0505 Diagnostic Procedure Chart (Step 13-16)

Courtesy of MAZDA MOTORS CORP.
