DTC P0604: Pcm Random Access Memory Error

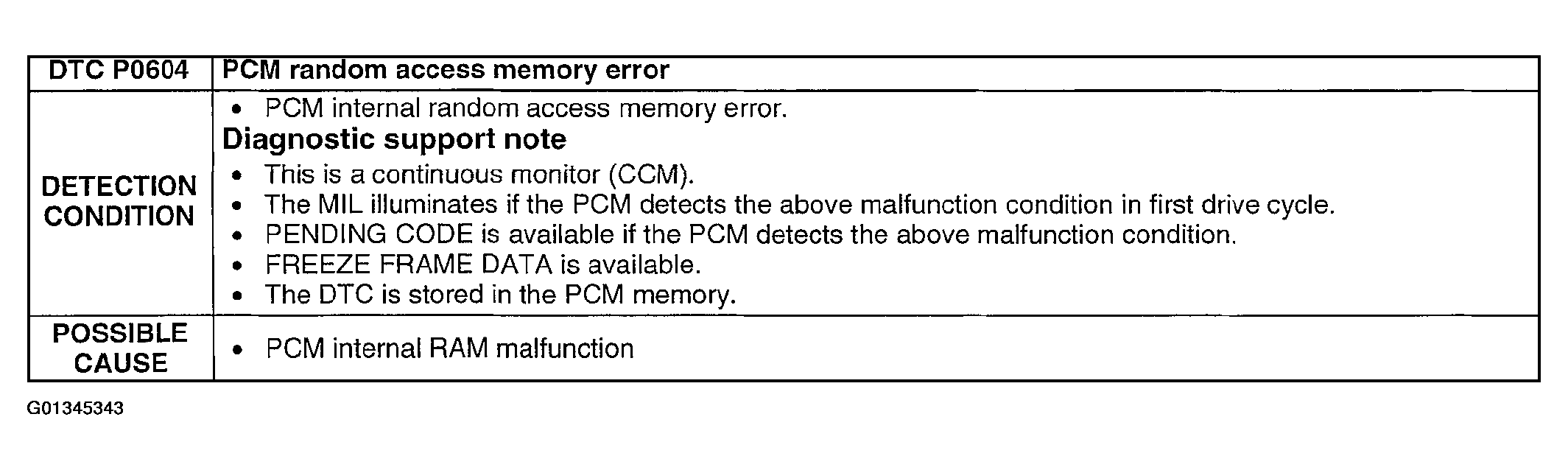

Fig 1: DTC P0604 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

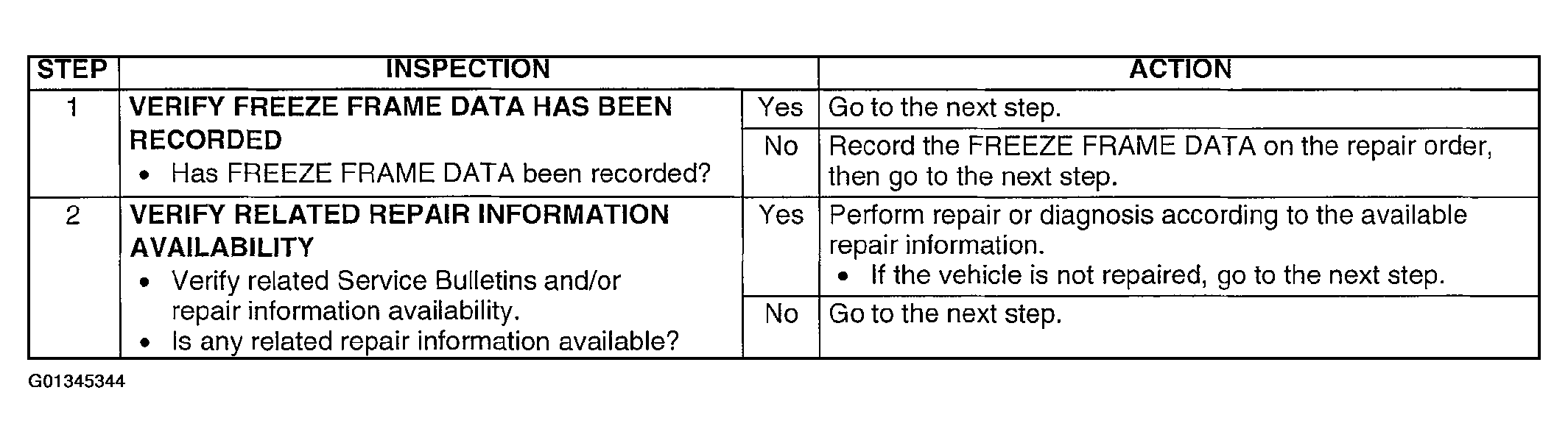

Fig 2: DTC P0604 Diagnostic Procedure Chart (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

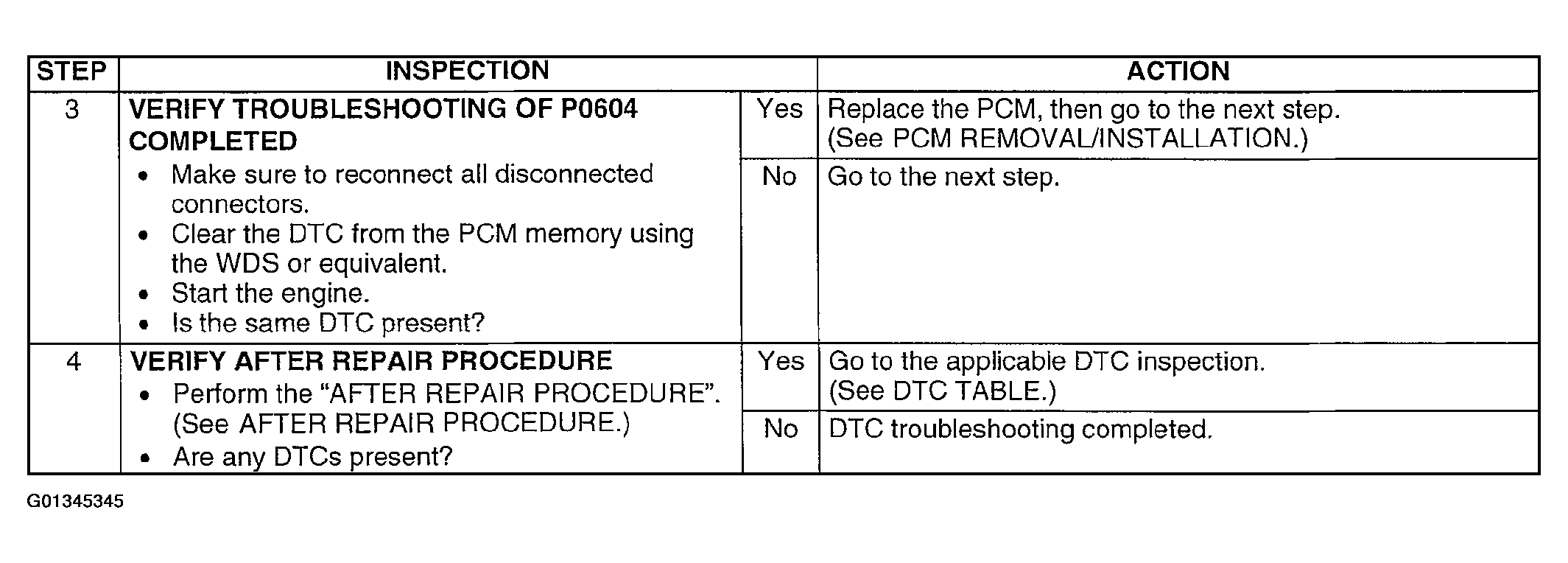

Fig 3: DTC P0604 Diagnostic Procedure Chart (Step 3-4)

Courtesy of MAZDA MOTORS CORP.
