DTC P1688: Metering Oil Pump Control Circuit Initial Check Problem

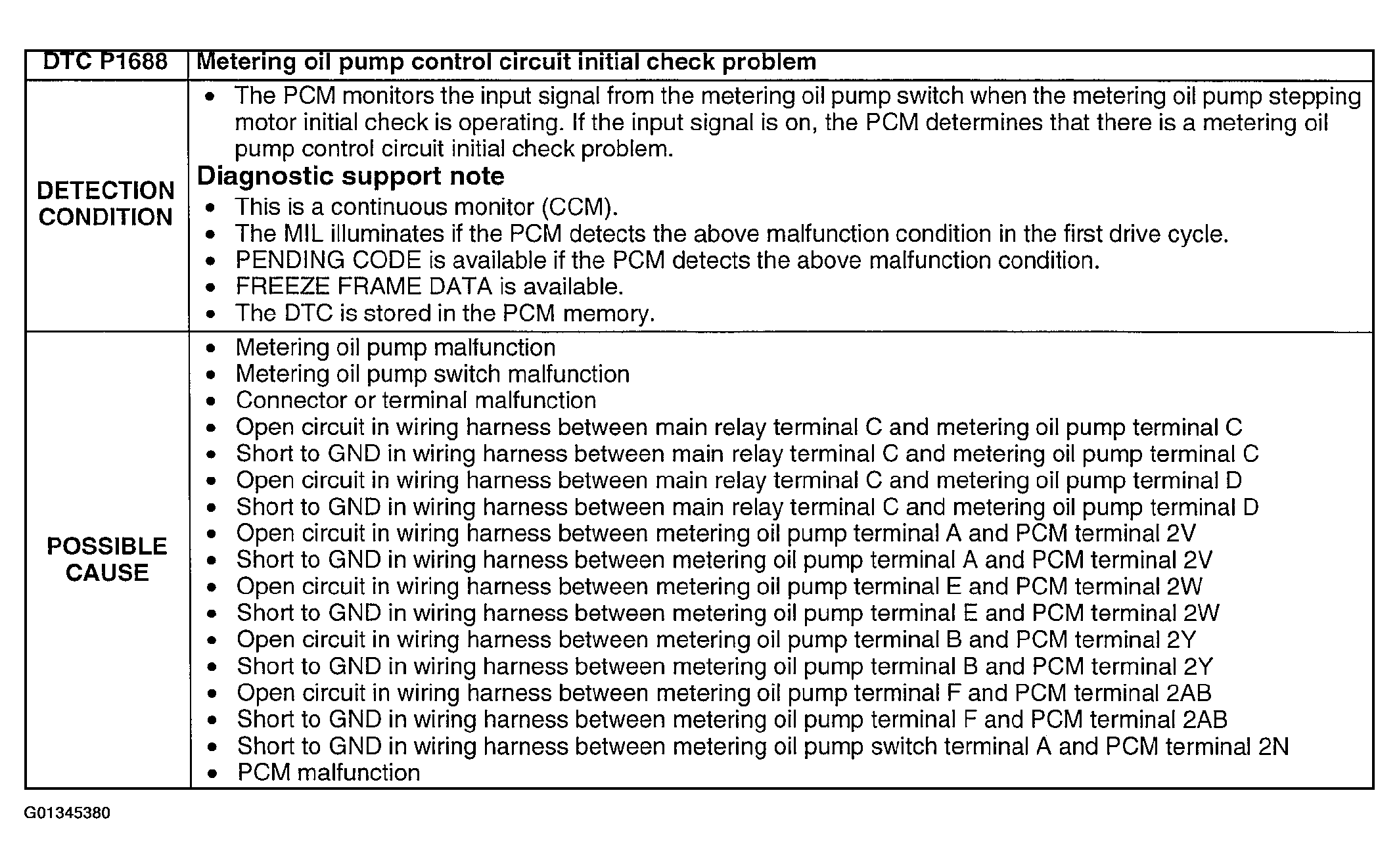

Fig 1: DTC P1688 Detection Condition & Possible Causes Chart (1 Of 2)
G01345380Courtesy of MAZDA MOTORS CORP.

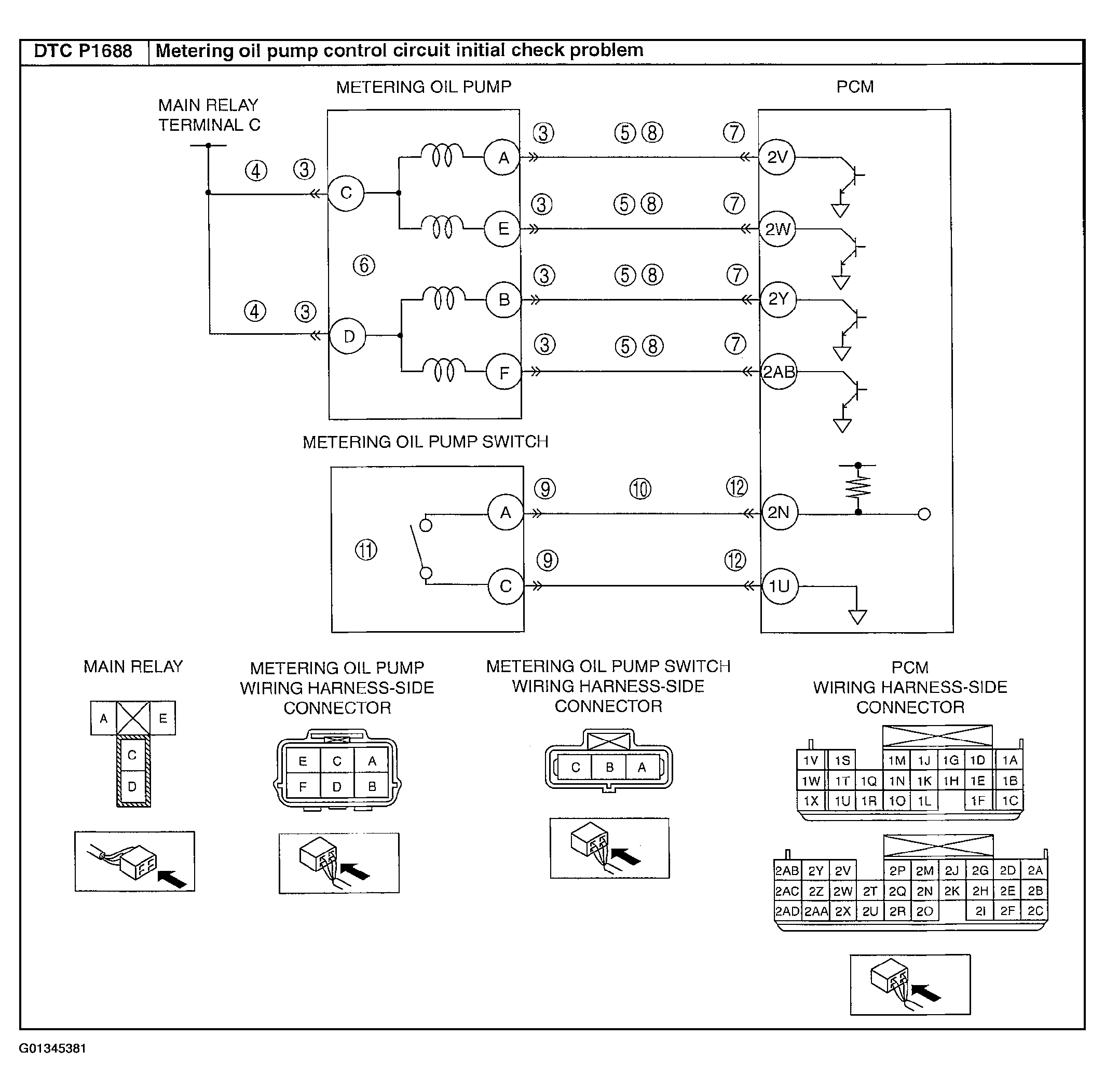

Fig 2: DTC P1688 Detection Condition & Possible Causes Chart (2 Of 2)
G01345381Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

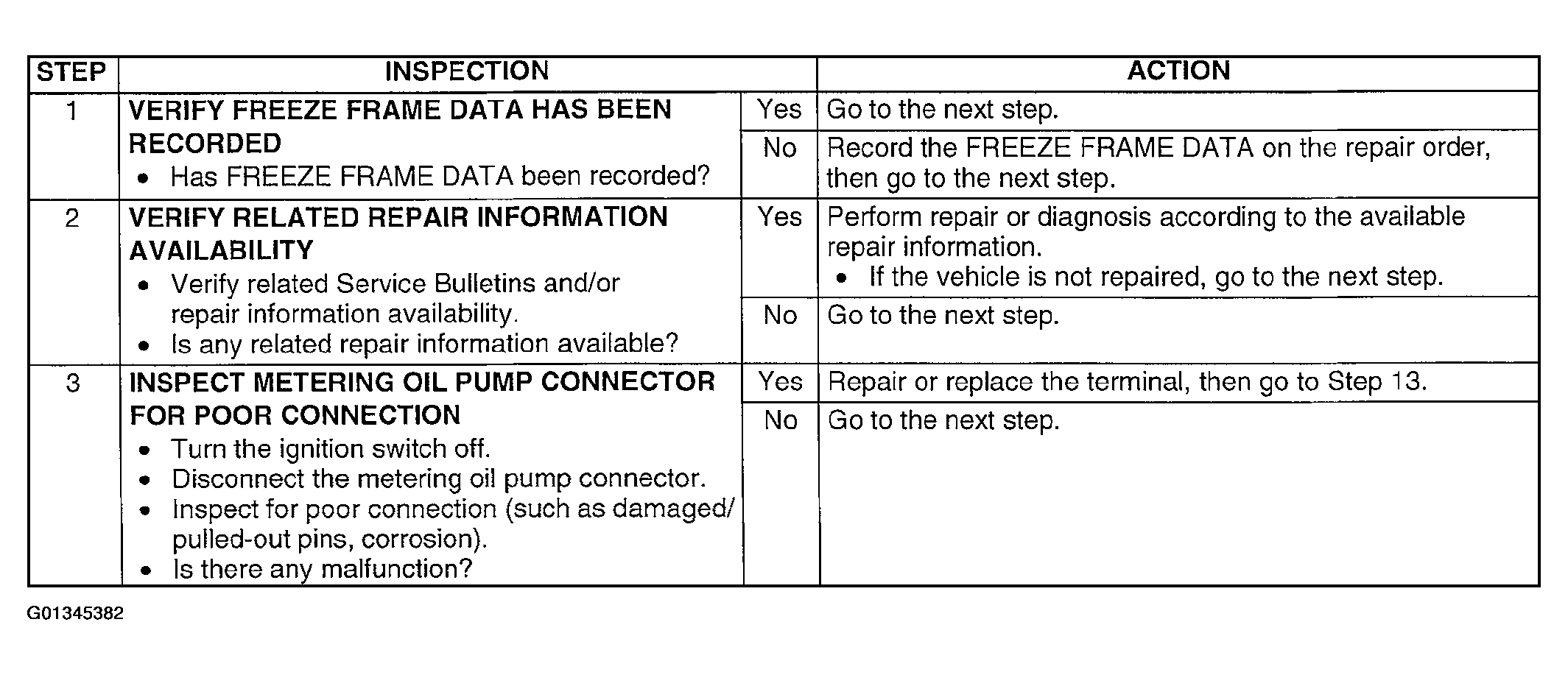

Fig 3: DTC P1688 Diagnostic Procedure Chart (Step 1-3)
G01345382Courtesy of MAZDA MOTORS CORP.

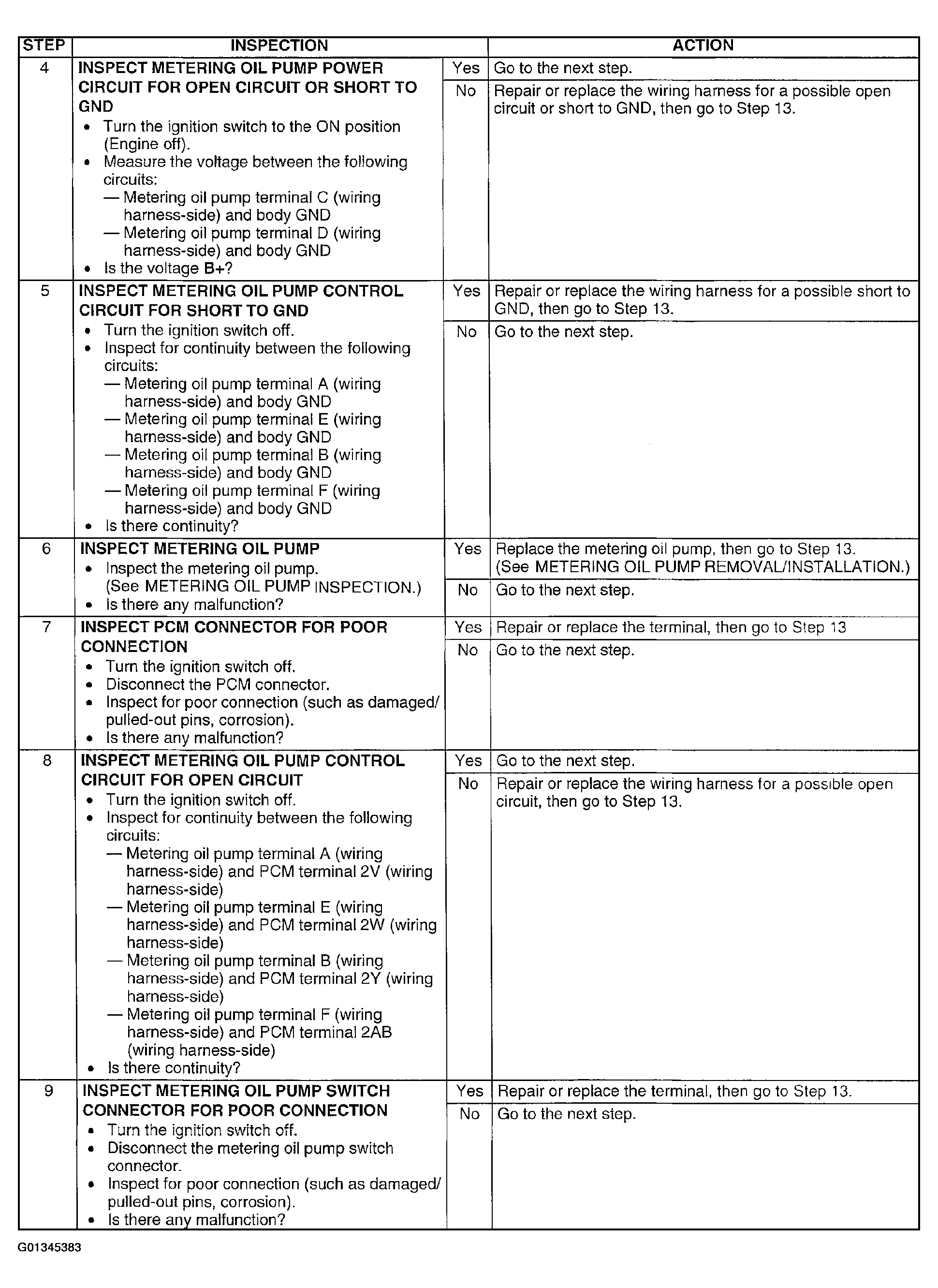

Fig 4: DTC P1688 Diagnostic Procedure Chart (Step 4-9)
G01345383Courtesy of MAZDA MOTORS CORP.

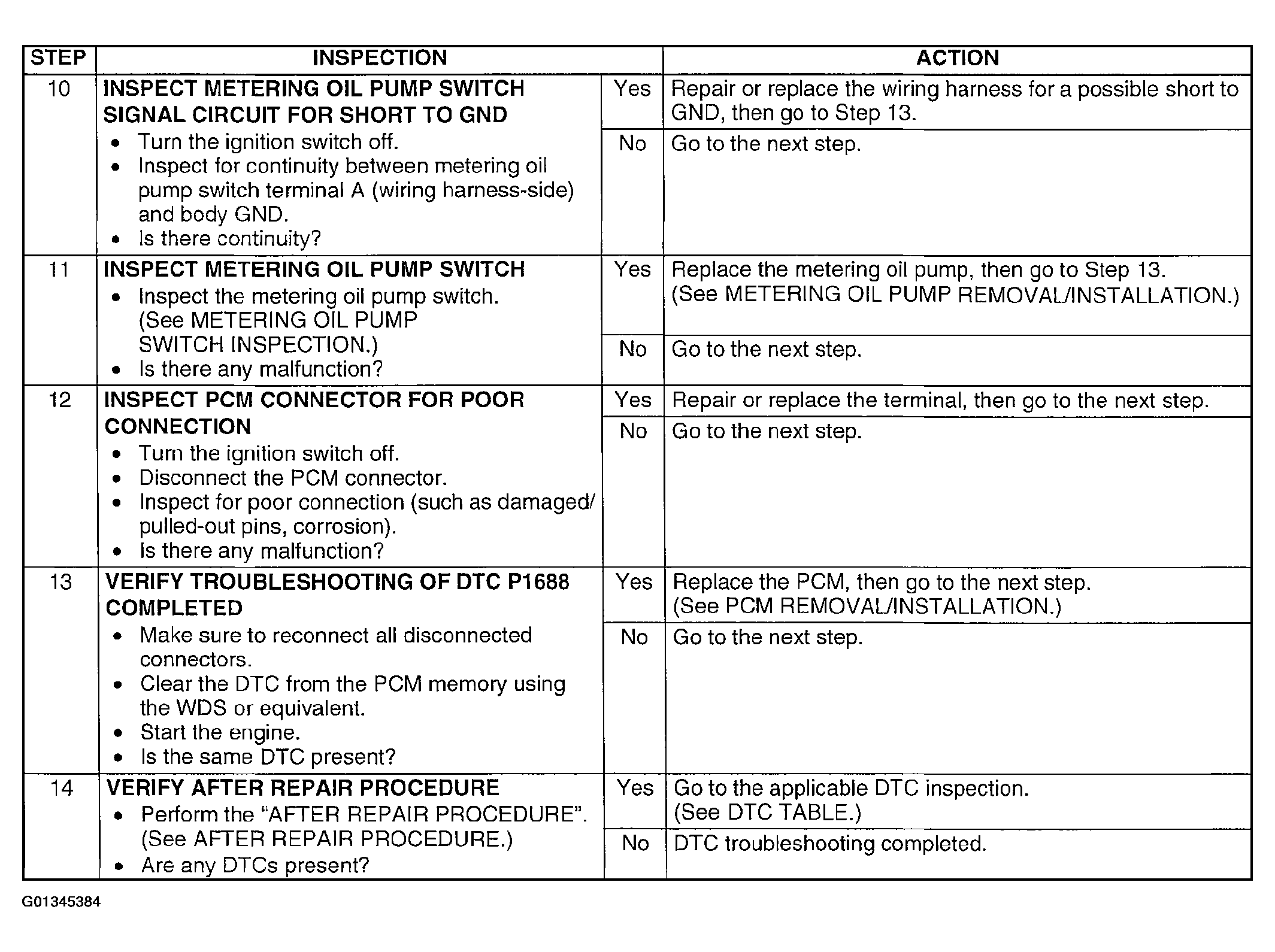

Fig 5: DTC P1688 Diagnostic Procedure Chart (Step 10-14)
G01345384Courtesy of MAZDA MOTORS CORP.
