DTC P2004: Metering Oil Pump Control Circuit Initial Check Problem

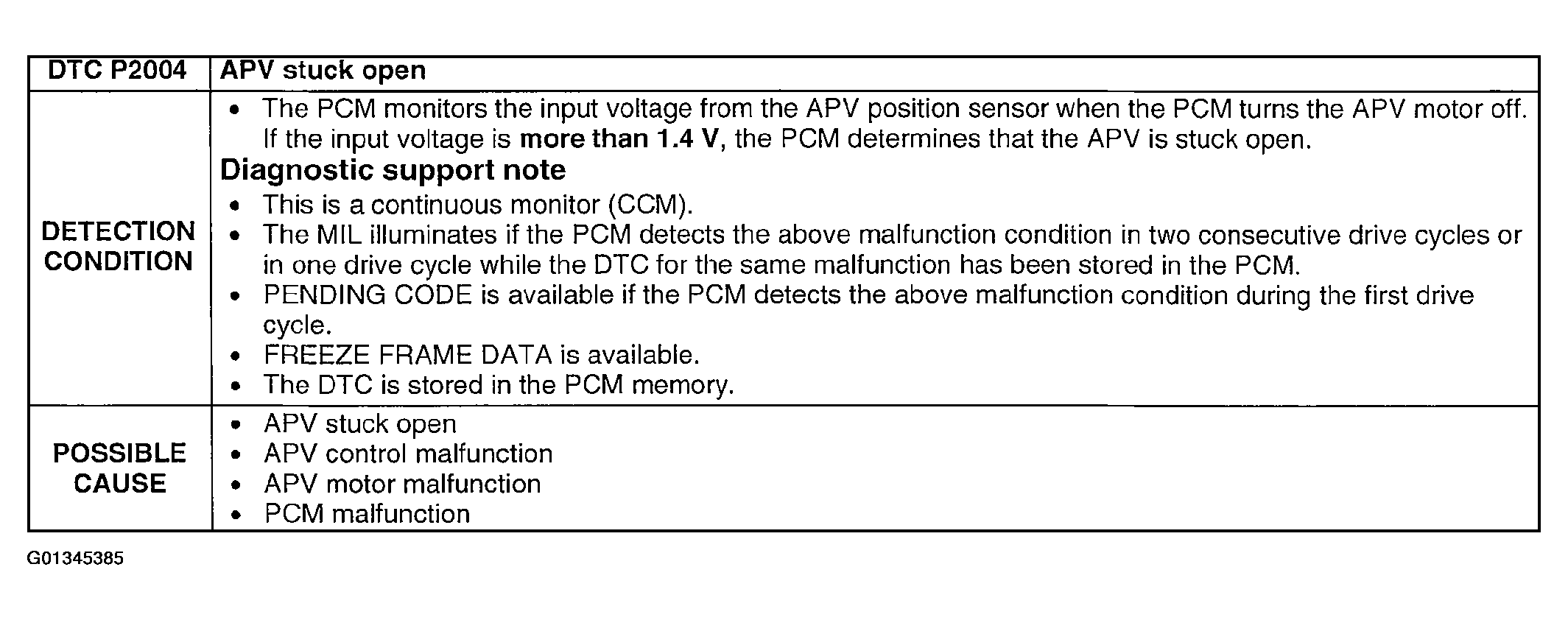

Fig 1: DTC P2004 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

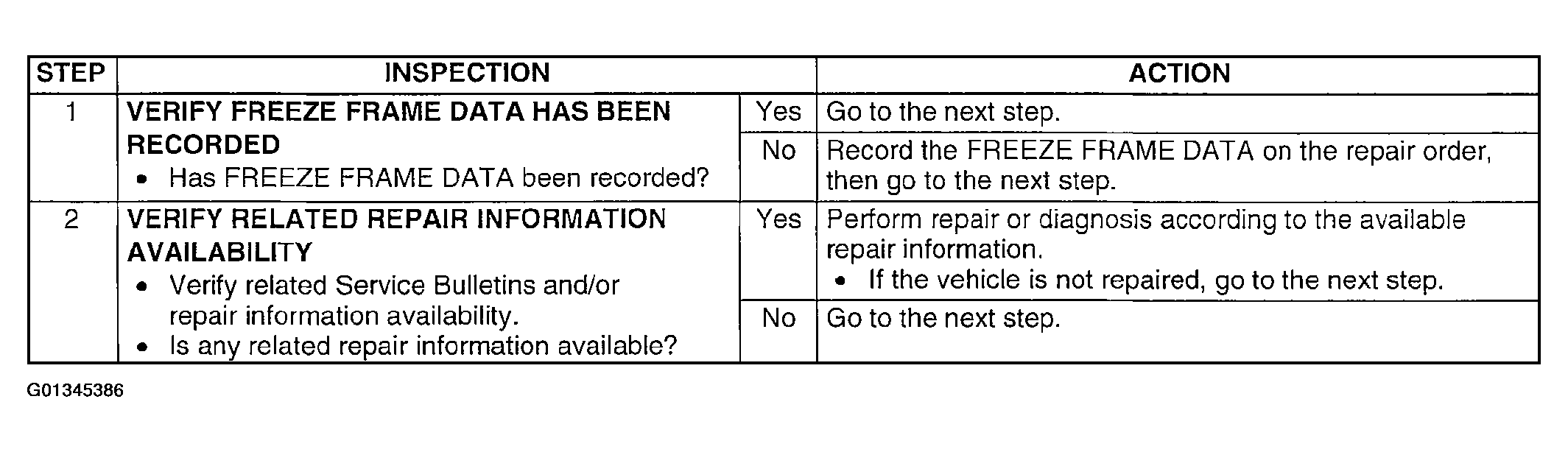

Fig 2: DTC P2004 Diagnostic Procedure Chart (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

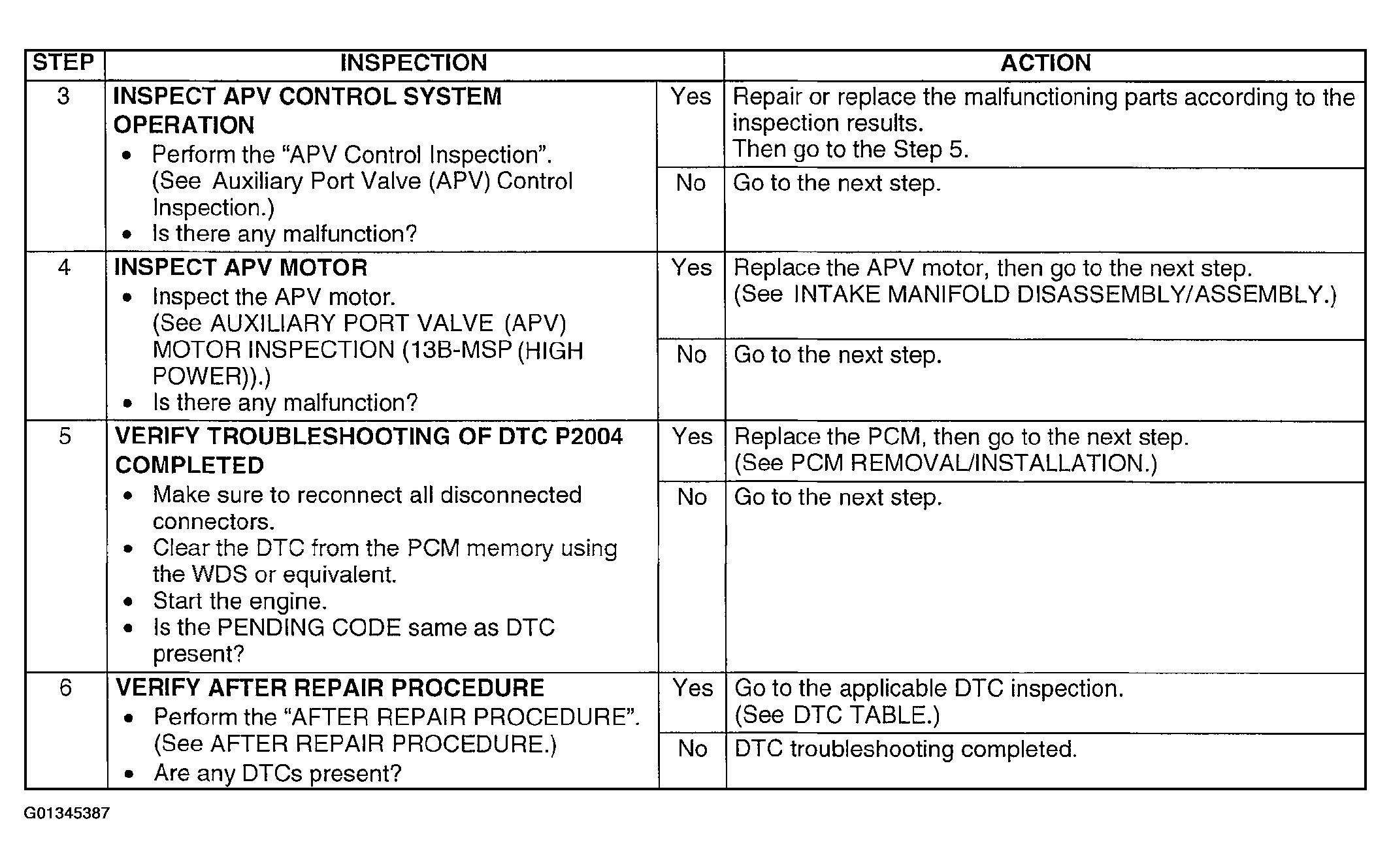

Fig 3: DTC P2004 Diagnostic Procedure Chart (Step 3-6)

Courtesy of MAZDA MOTORS CORP.
