DTC P2006: Metering Oil Pump Control Circuit Initial Check Problem

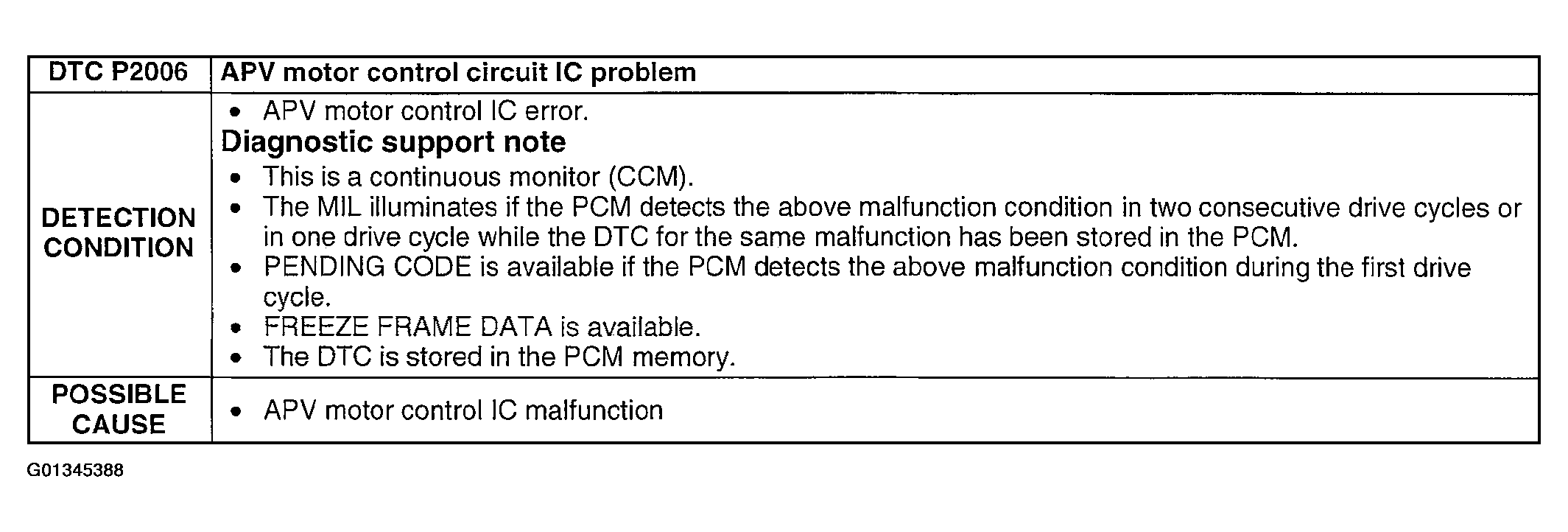

Fig 1: DTC P2006 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

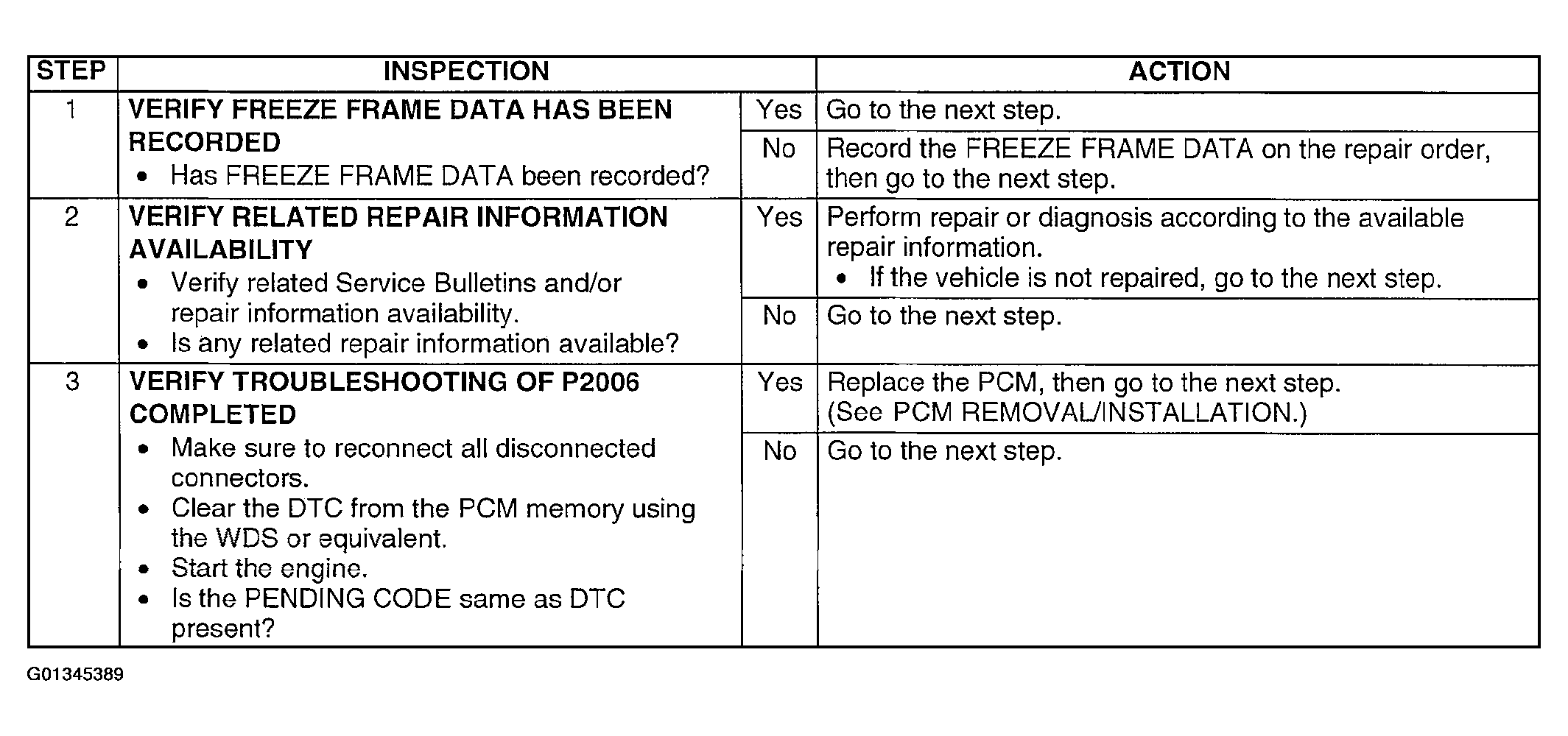

Fig 2: DTC P2006 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

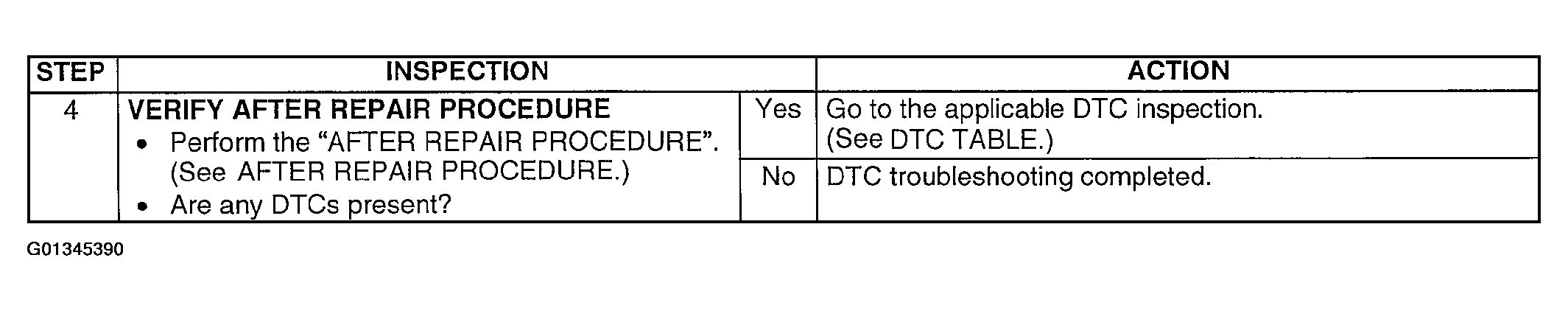

Fig 3: DTC P2006 Diagnostic Procedure Chart (Step 4)

Courtesy of MAZDA MOTORS CORP.
