DTC P2119: TP Sensor Minimum Stop Range/Performance Problem

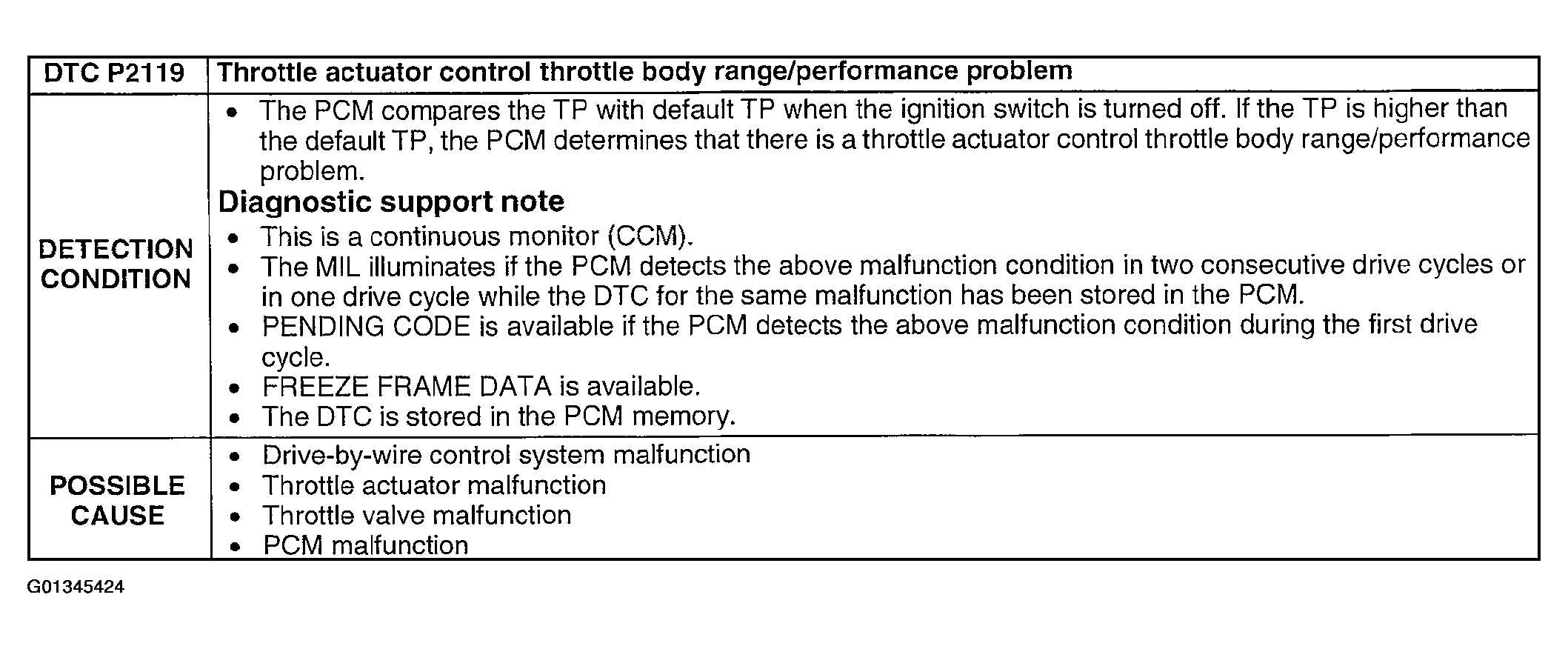

Fig 1: DTC P2119 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

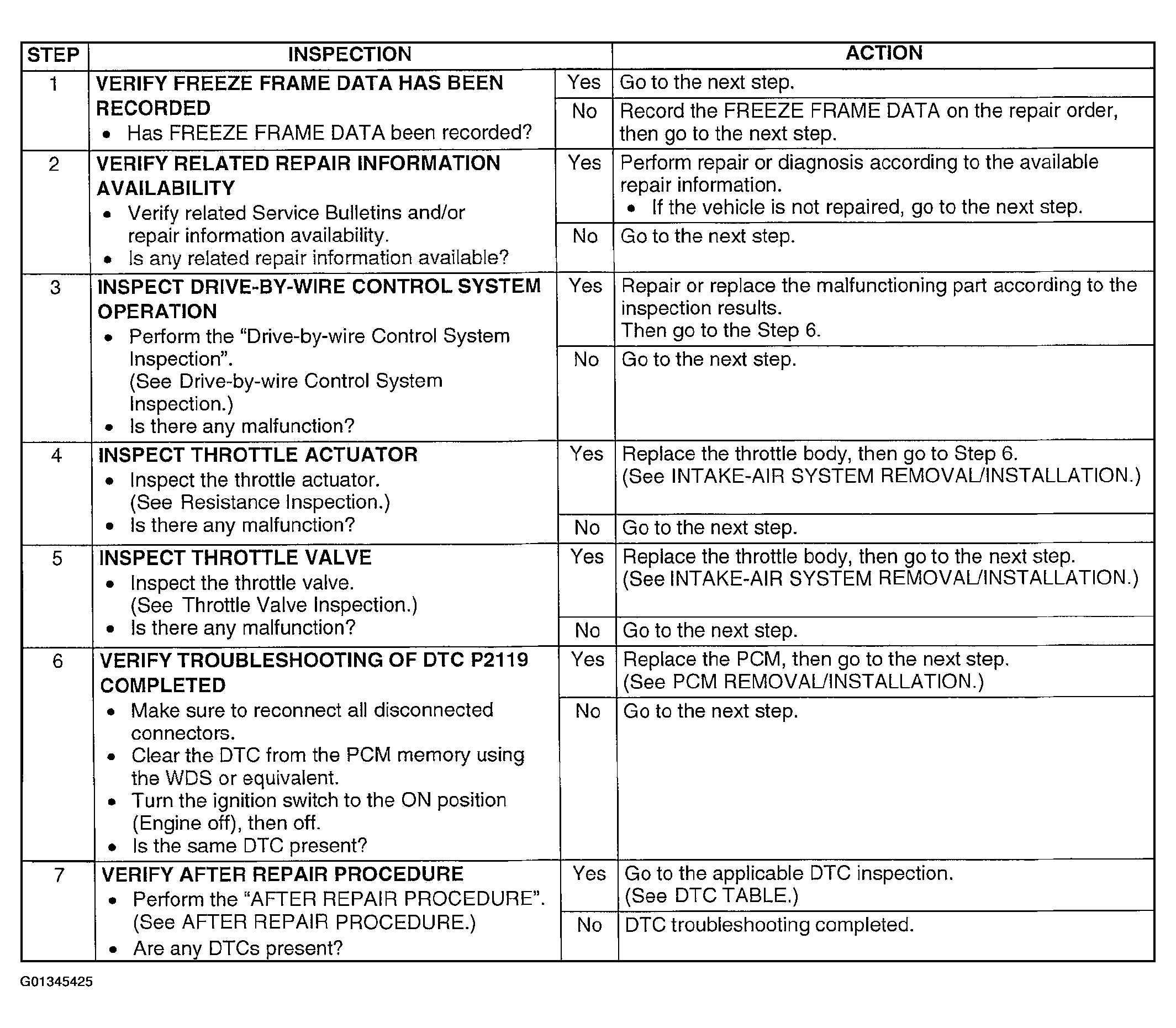

Fig 2: DTC P2119 Diagnostic Procedure Chart

Courtesy of MAZDA MOTORS CORP.
