DTC Tables

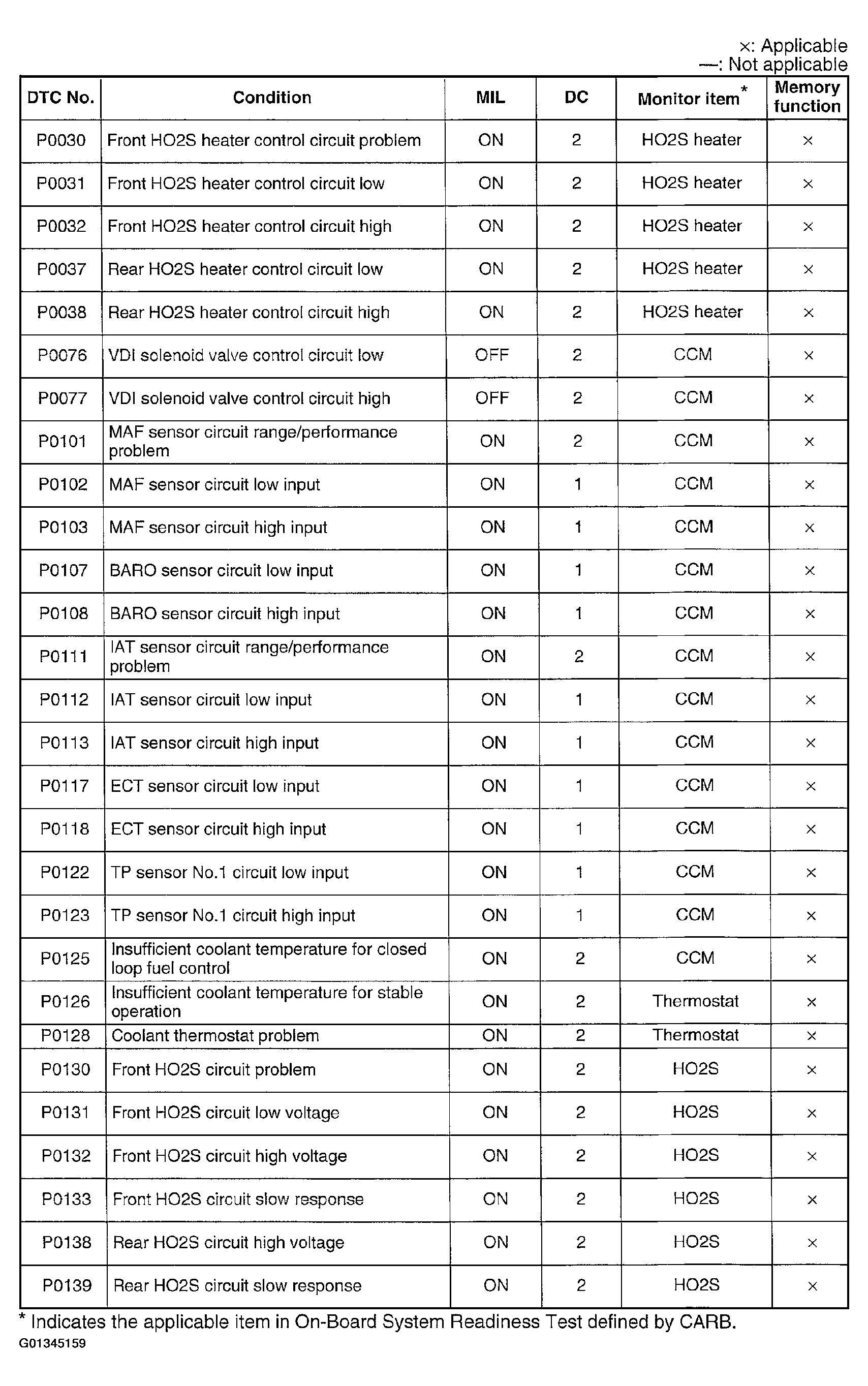

Fig 1: DTC P0030, P0031, P0032, P0037, P0038, P0076, P0077, P0101, P0102, P0103, P0107, P0108, P0111, P0112, P0113, P0117, P0118, P0122, P0123, P0125, P0126, P0128, P0130, P0131, P0132, P0133, P0138 & P0139 Table (1 Of 5)

Courtesy of MAZDA MOTORS CORP.

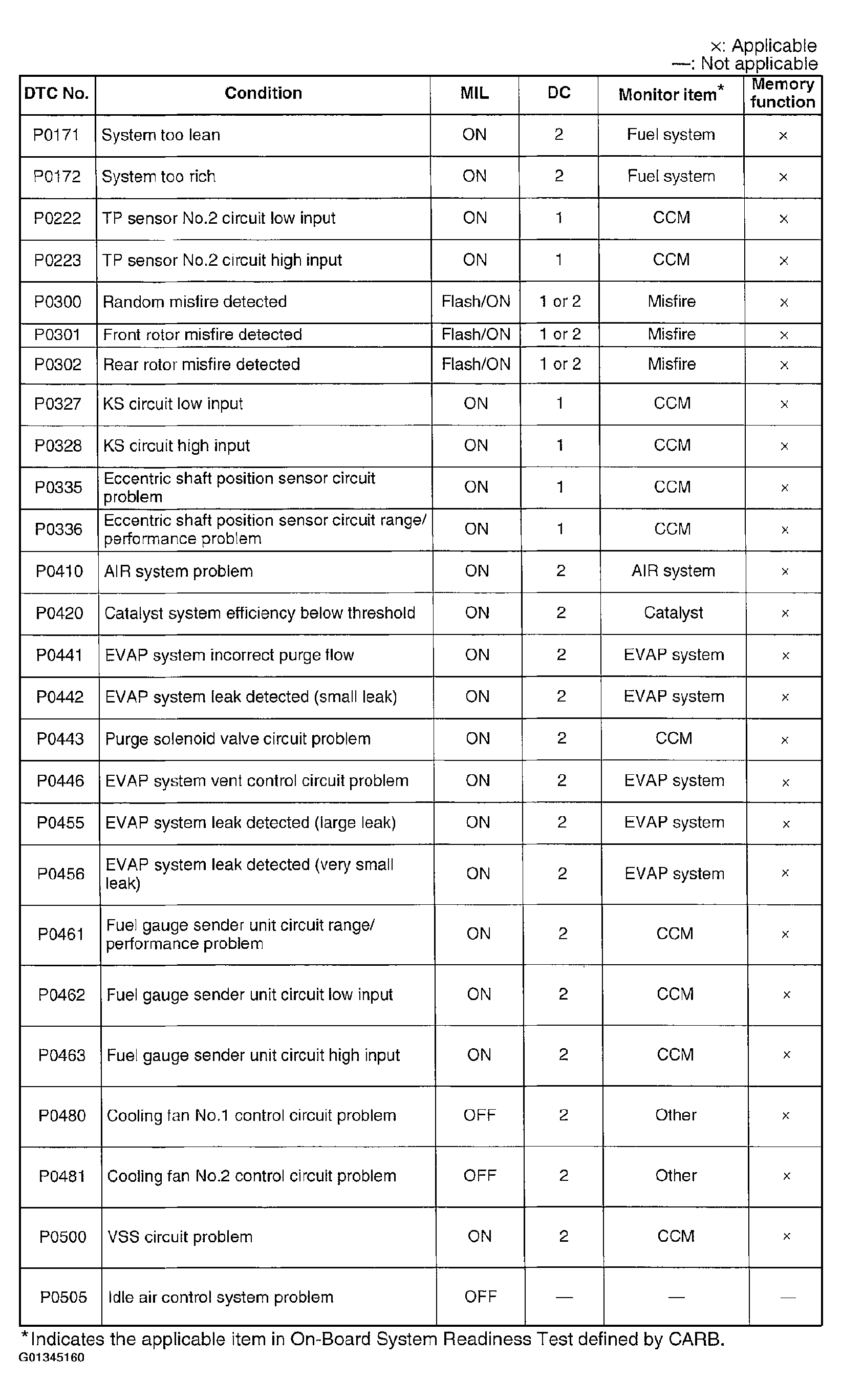

Fig 2: DTC P0171, P0172, P0222, P0223, P0300, P0301, P0302, P0327, P0328, P0335, P0336, P0410, P0420, P0441, P0442, P0443, P0446, P0455, P0456, P0461, P0462, P0463, P0480, P0481, P0500 & P0505 Table (2 Of 5)

Courtesy of MAZDA MOTORS CORP.

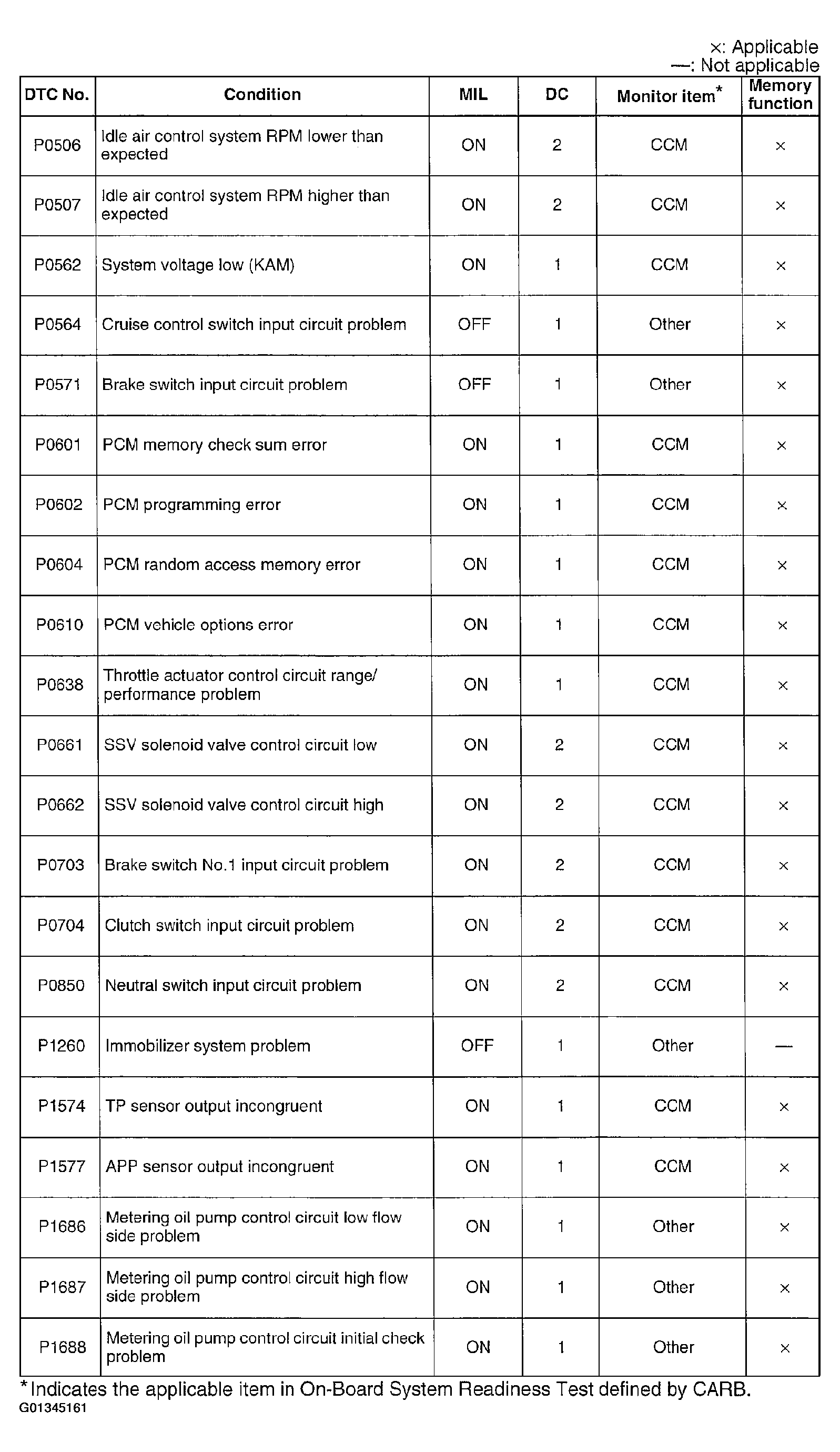

Fig 3: DTC P0506, P0507, P0562, P0564, P0571, P0601, P0602, P0604, P0610, P0638, P0661, P0662, P0703, P0704, P0850, P1260, P1574, P1577, P1686, P1687 & P1688 Table (3 Of 5)

Courtesy of MAZDA MOTORS CORP.

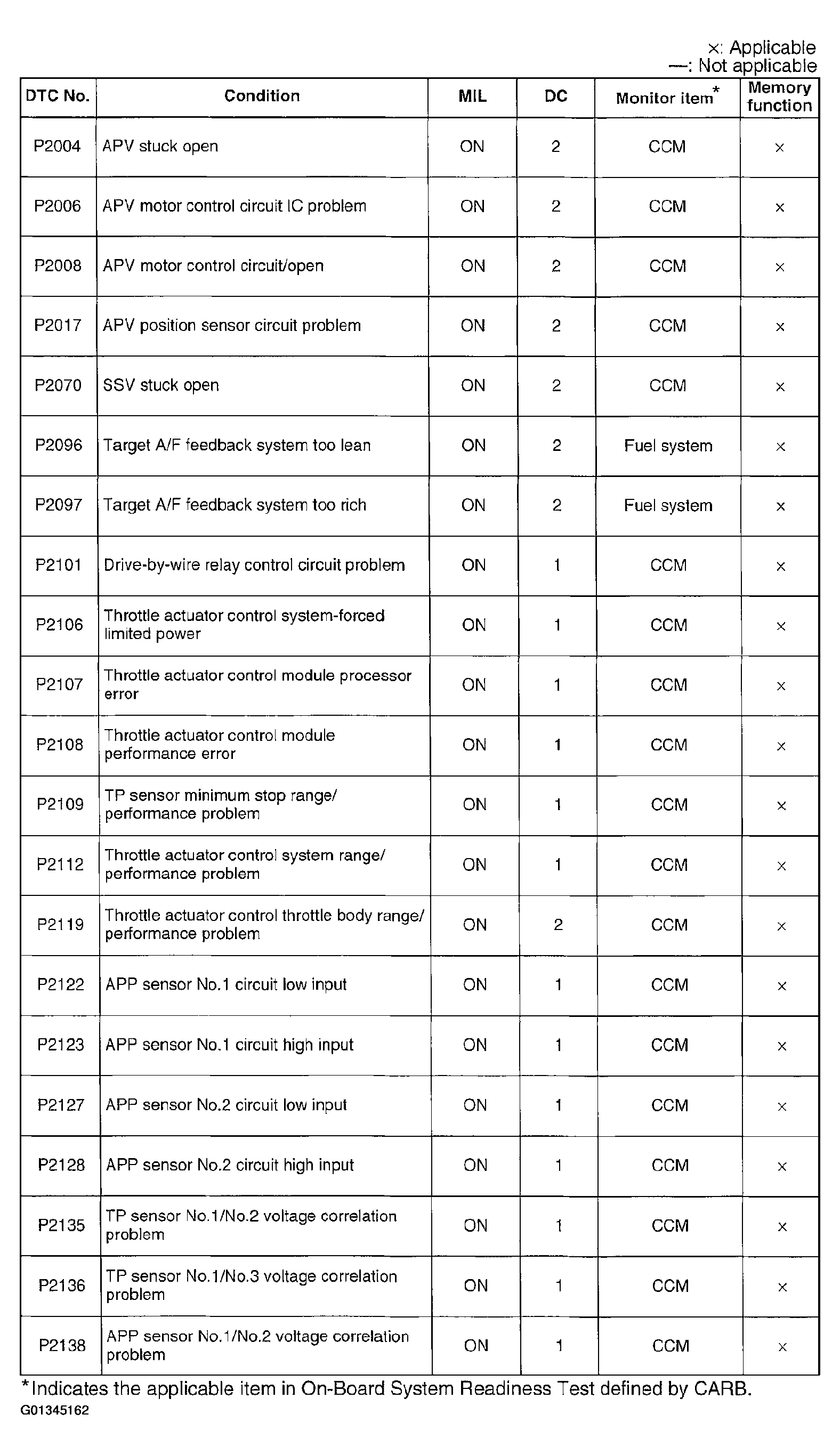

Fig 4: DTC P2004, P2006, P2008, P2017, P2070, P2096, P2097, P2101, P2106, P2107, P2108, P2109, P2112, P2119, P2122, P2123, P2127, P2128, P2135, P2136 & P2138 Table (4 Of 5)

Courtesy of MAZDA MOTORS CORP.

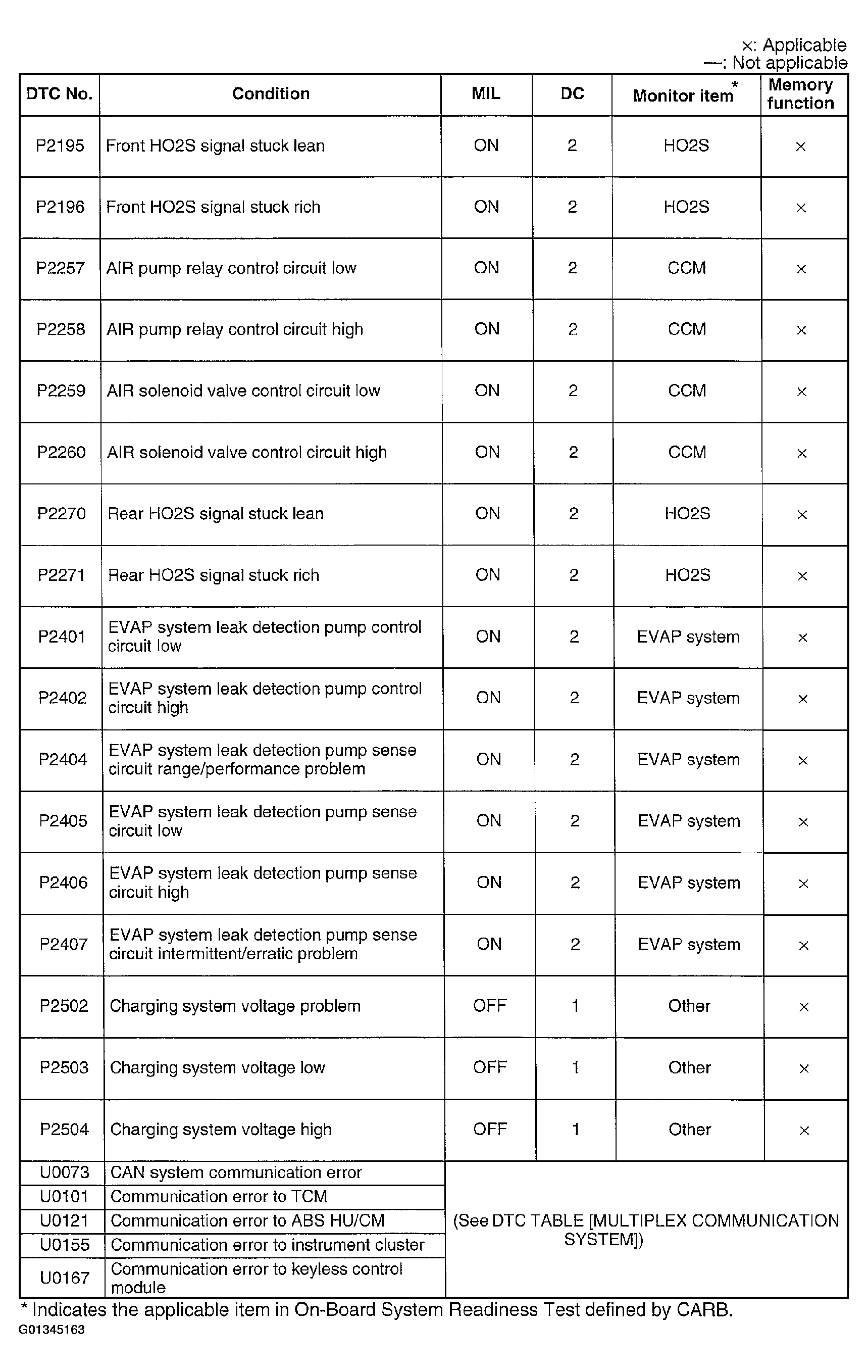

Fig 5: DTC P2195, P2196, P2257, P2258, P2259, P2260, P2270, P2271, P2401, P2402, P2404, P2405, P2406, P2407, P2502, P2503, P2504, U0073, U0101, U0121, U0155 & U0167 Table (5 Of 5)

Courtesy of MAZDA MOTORS CORP.
