Inspection Method For Sensor Connectors Or Wires
- Connect the WDS or equivalent to the DLC-2.
- Turn the ignition switch to the ON position (Engine off).
NOTE:
- If the engine starts and runs, perform the following steps at idle.
- Access the PIDs for the switch you are inspecting.

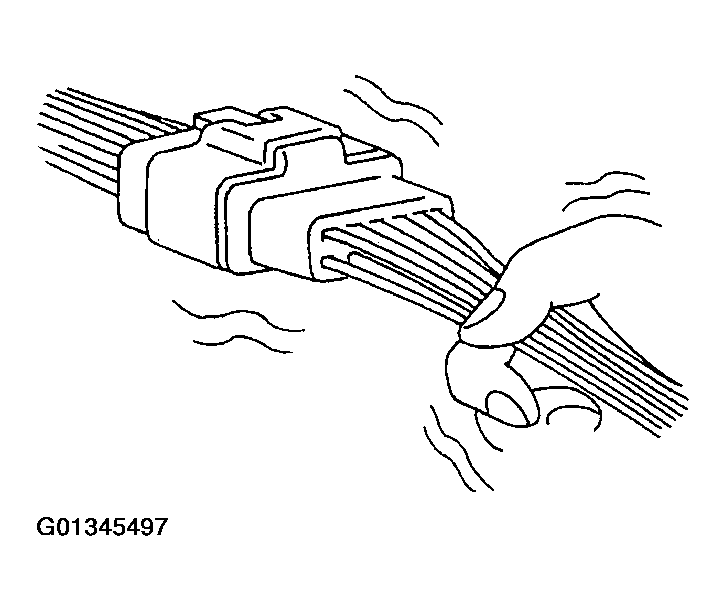

- Shake each connector or wiring harness a bit vertically and horizontally while monitoring the PID.
- If the PID value is unstable, check for poor connection.
Courtesy of MAZDA MOTORS CORP.
