Inspection Method For Switch Connectors Or Wires
- Connect the WDS or equivalent to the DLC-2.
- Turn ignition switch to ON position (Engine OFF).
NOTE:
- If the engine starts and runs, perform the following steps at idle.
- Access the PIDs for the switch you are inspecting.
- Turn the switch on manually.

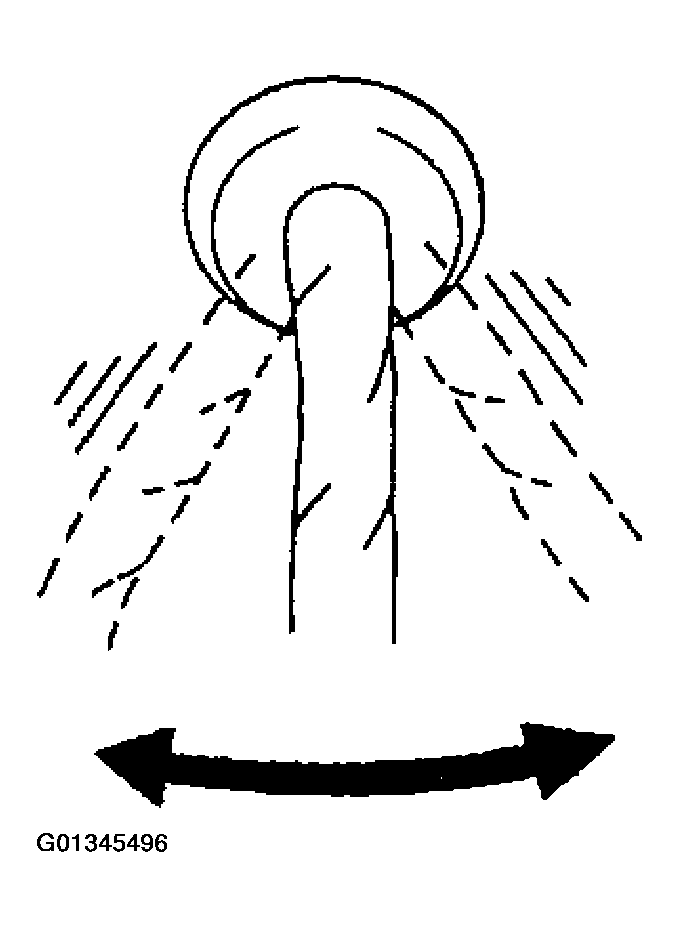

- Shake each connector or wiring harness a bit vertically and horizontally while monitoring the PID.
- If the PID value is unstable, check for poor connection.
Courtesy of MAZDA MOTORS CORP.
