No. 17 Cooling System Concerns-Overheating

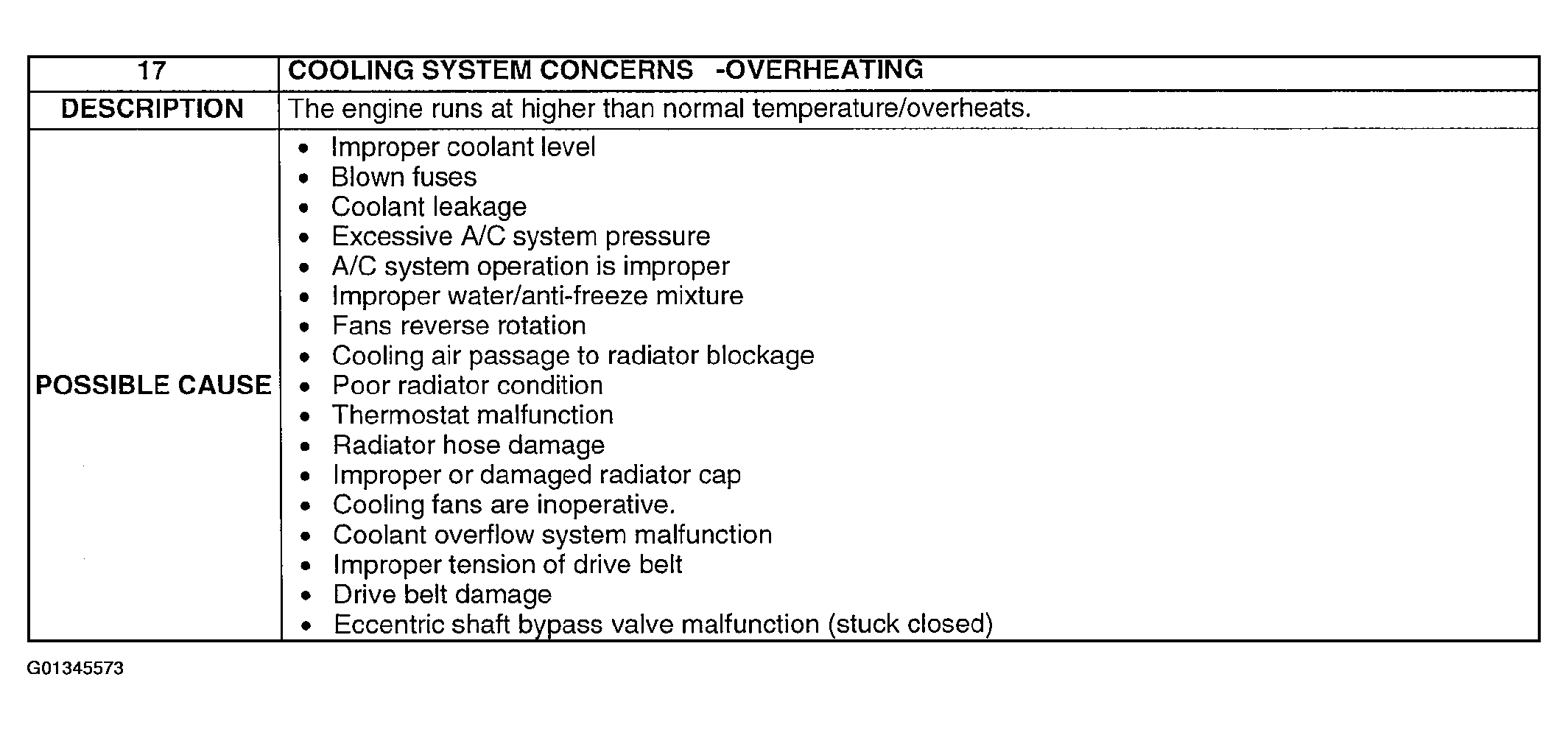

Fig 1: Possible Cause - No. 17 Cooling System Concerns-Overheating

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

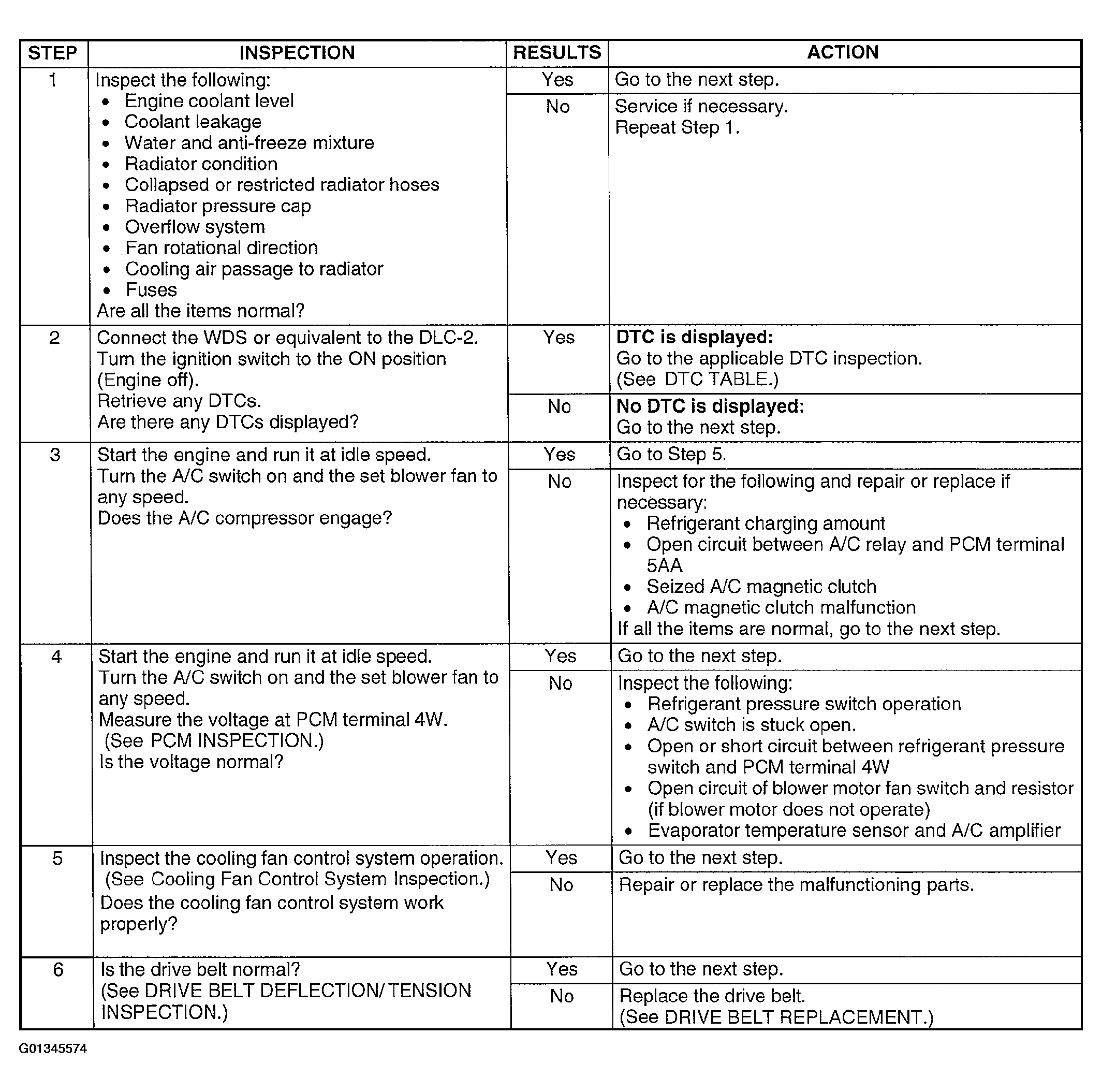

Fig 2: Diagnostic Procedure - No. 17 Cooling System Concerns-Overheating (Steps 1-6)

Courtesy of MAZDA MOTORS CORP.

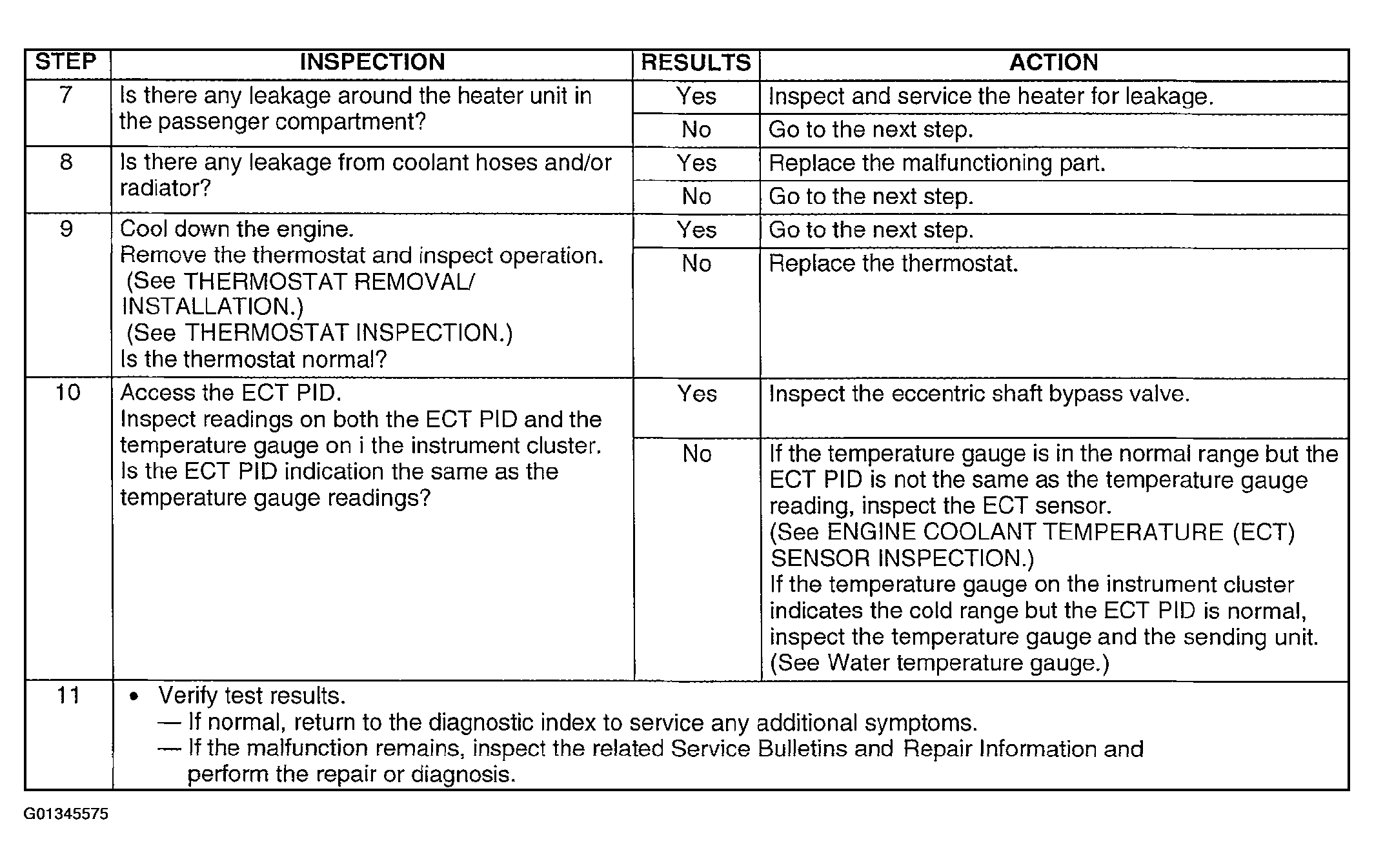

Fig 3: Diagnostic Procedure - No. 17 Cooling System Concerns-Overheating (Steps 7-11)

Courtesy of MAZDA MOTORS CORP.
