Using The Diagnostic Index
The symptoms of the malfunctions are listed in the diagnostic index for symptom troubleshooting.
The exact malfunction symptoms can be selected by following the index.

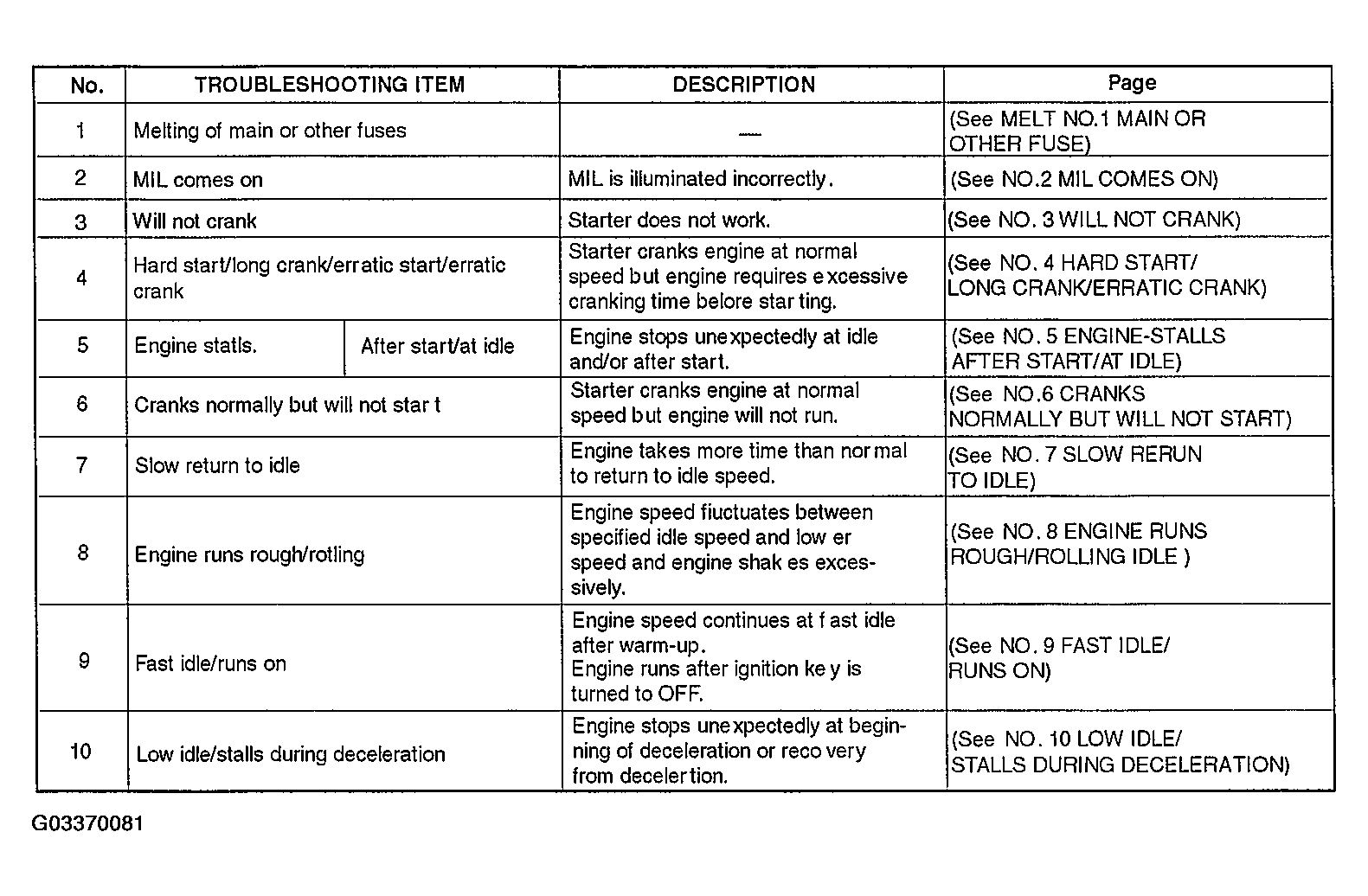

Fig 1: Identifying Diagnostic Index
Courtesy of MAZDA MOTORS CORP.
