Electrical
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
Keyless Control Module Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Control Module Connector End View

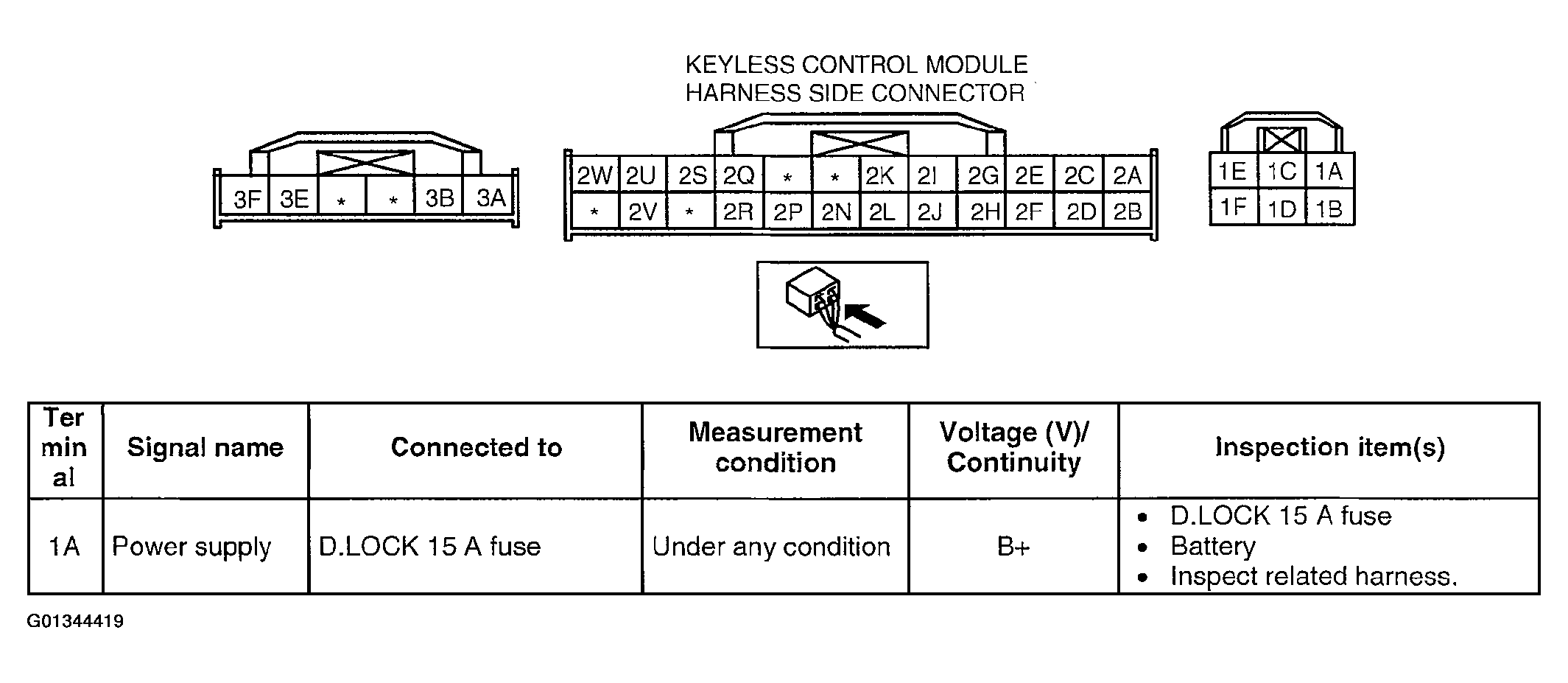

Fig 1: Keyless Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
