Monitoring System And Control System Device Relationship Chart

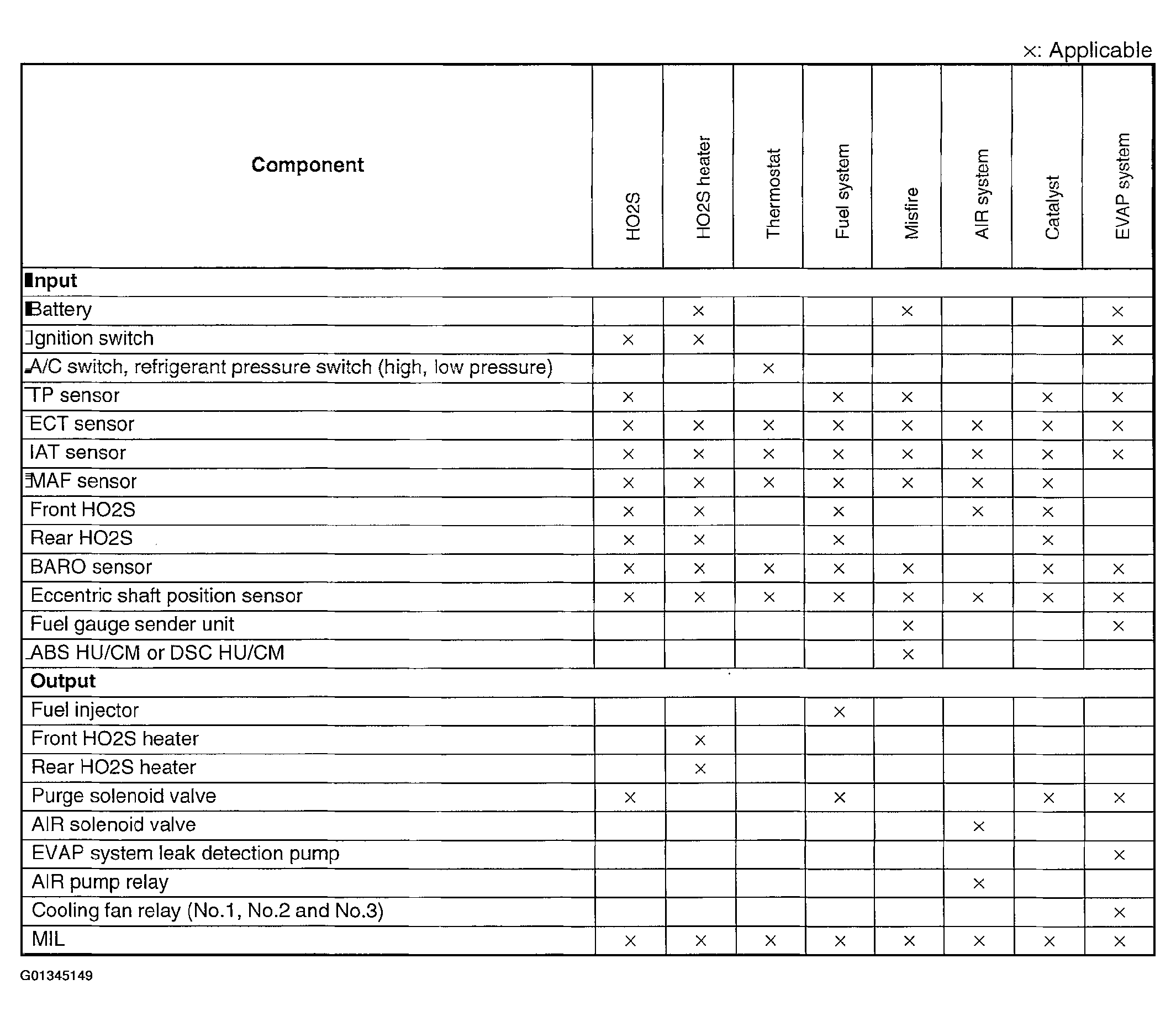

Fig 1: Monitoring System And Control System Device Relationship Chart
G01345149Courtesy of MAZDA MOTORS CORP.
