Power Window Subswitch

POWER WINDOW SUBSWITCH INSPECTION

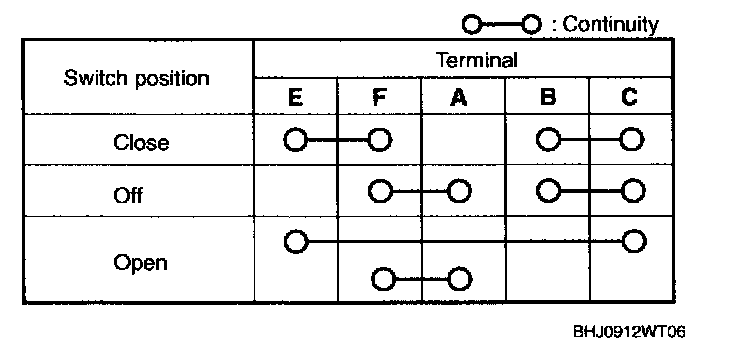

1. Verify continuity as indicated in the table.
- If not as indicated in the table, replace the power window subswitch.

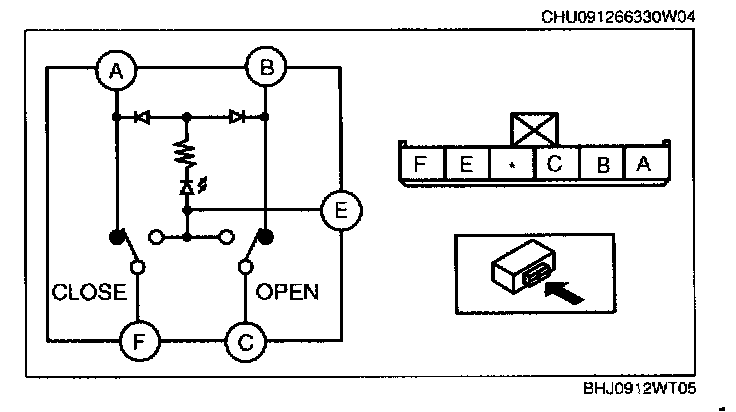

2. Connect battery positive voltage to terminal E and ground to the terminal A. Verify that continuity exists.
- If not as specified, replace the power window subswitch.

3. Connect battery positive voltage to terminal E and ground to the terminal B. Verify that continuity exists.
- If not as specified, replace the power window subswitch.
