Pinpoint Test 1: The Ignition Switch Is Inoperative

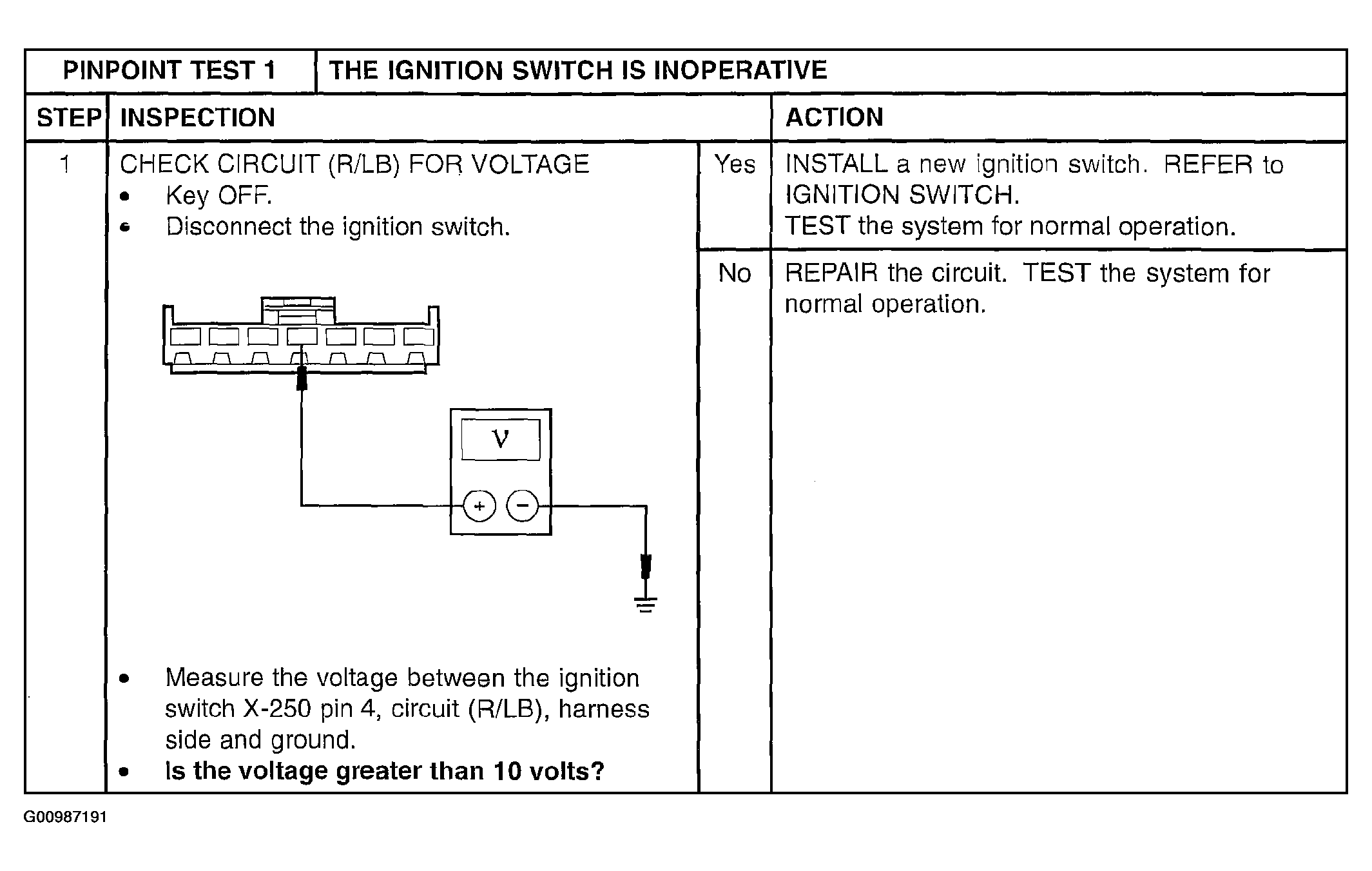

Fig 1: Pinpoint Test 1: The Ignition Switch Is Inoperative
G00987191Courtesy of MAZDA MOTORS CORP.
