Speed Control DEACTIVATOR Switch: Removal

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

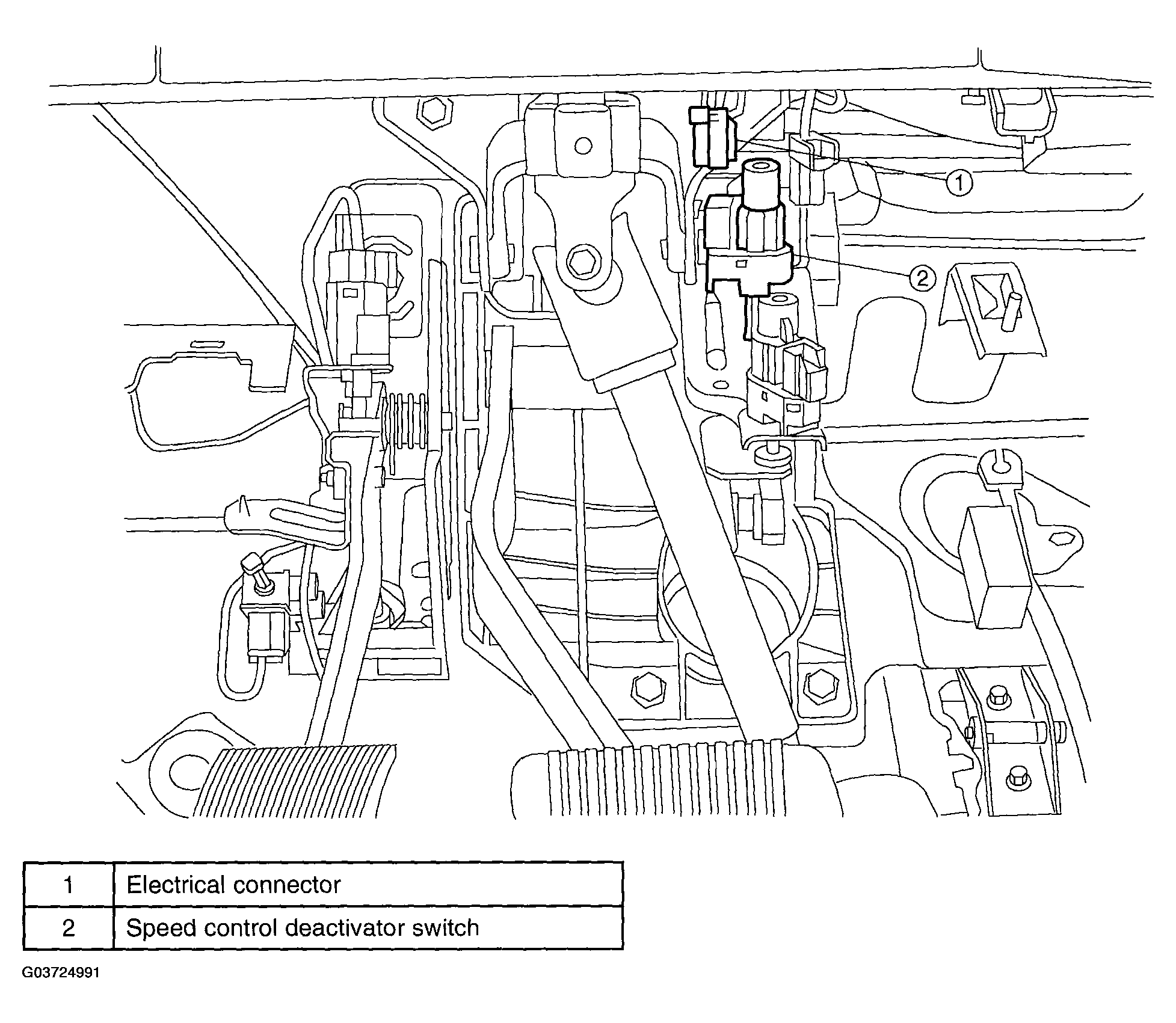

Fig 1: Removing Speed Control Deactivator Switch

Courtesy of MAZDA MOTORS CORP.

Remove the deactivator switch.
1. Disconnect the electrical connector.
2. Rotate counterclockwise 45 degrees and remove the deactivator switch.

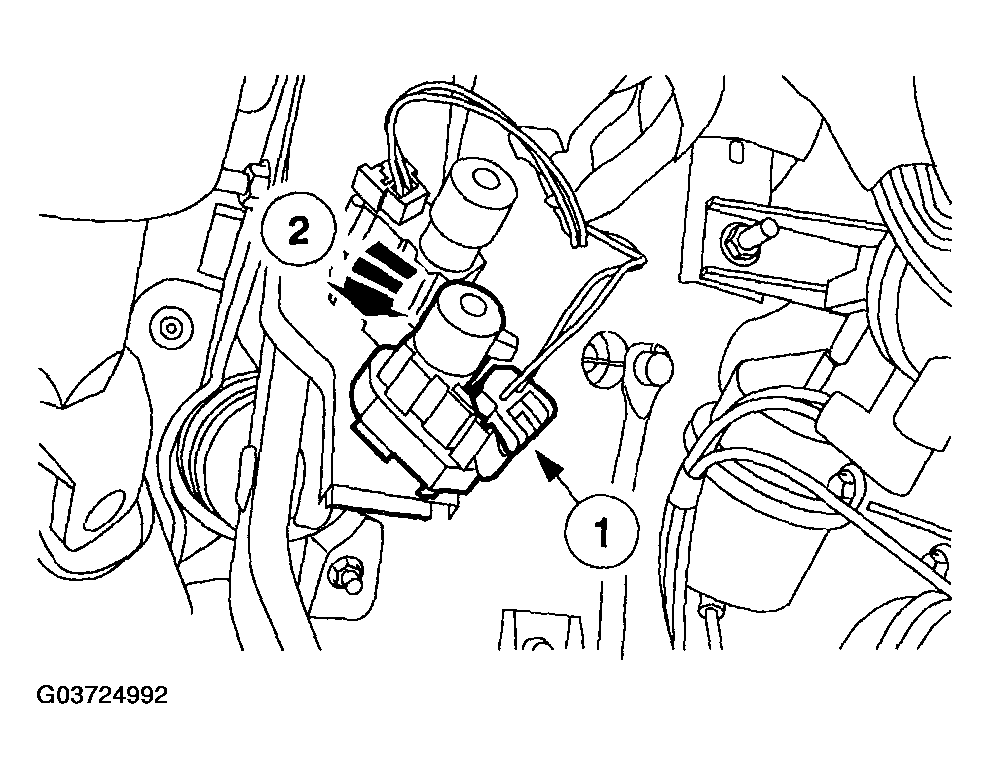

Fig 2: Removing Deactivator Switch
Courtesy of MAZDA MOTORS CORP.
