Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly

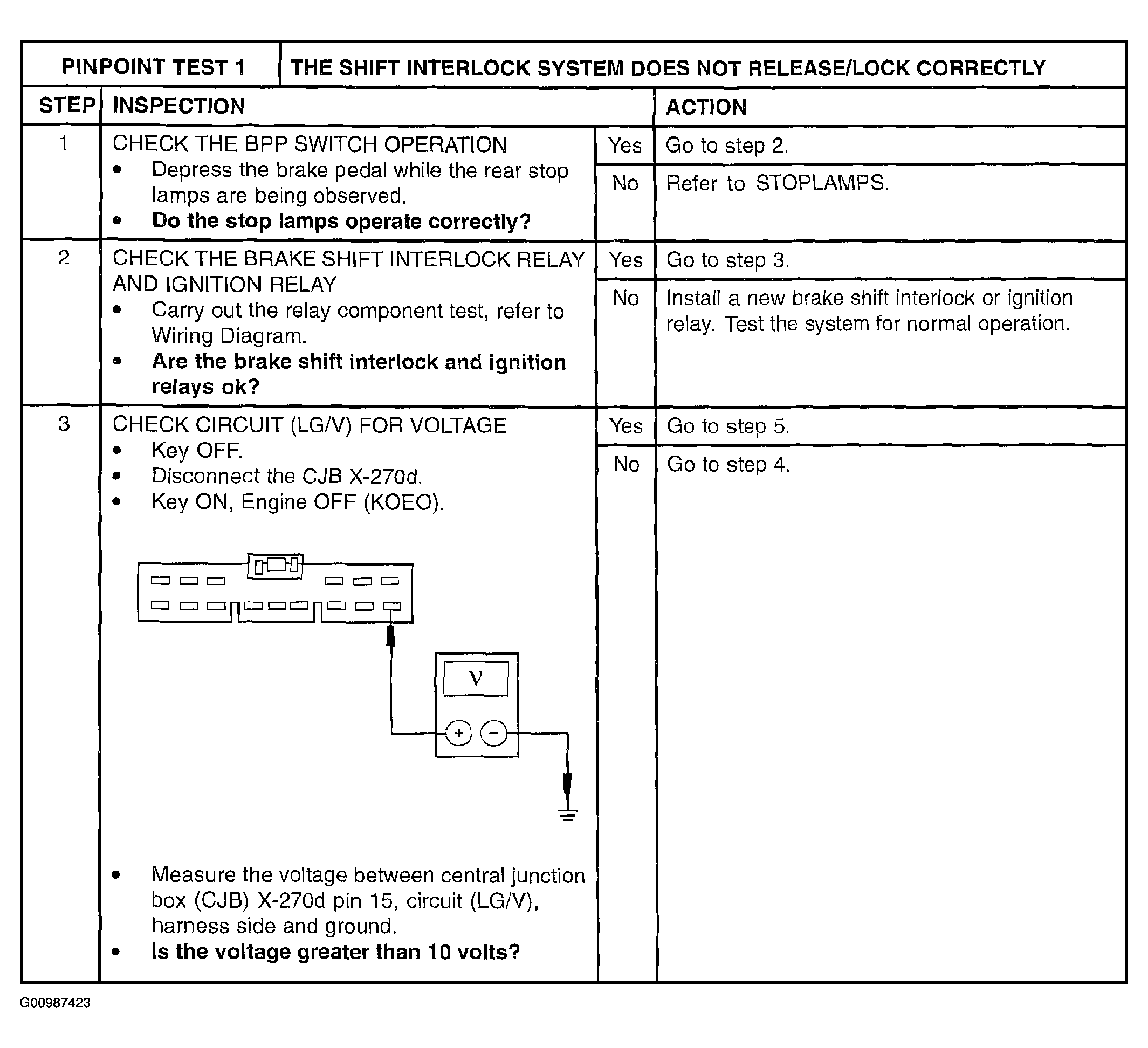

Fig 1: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

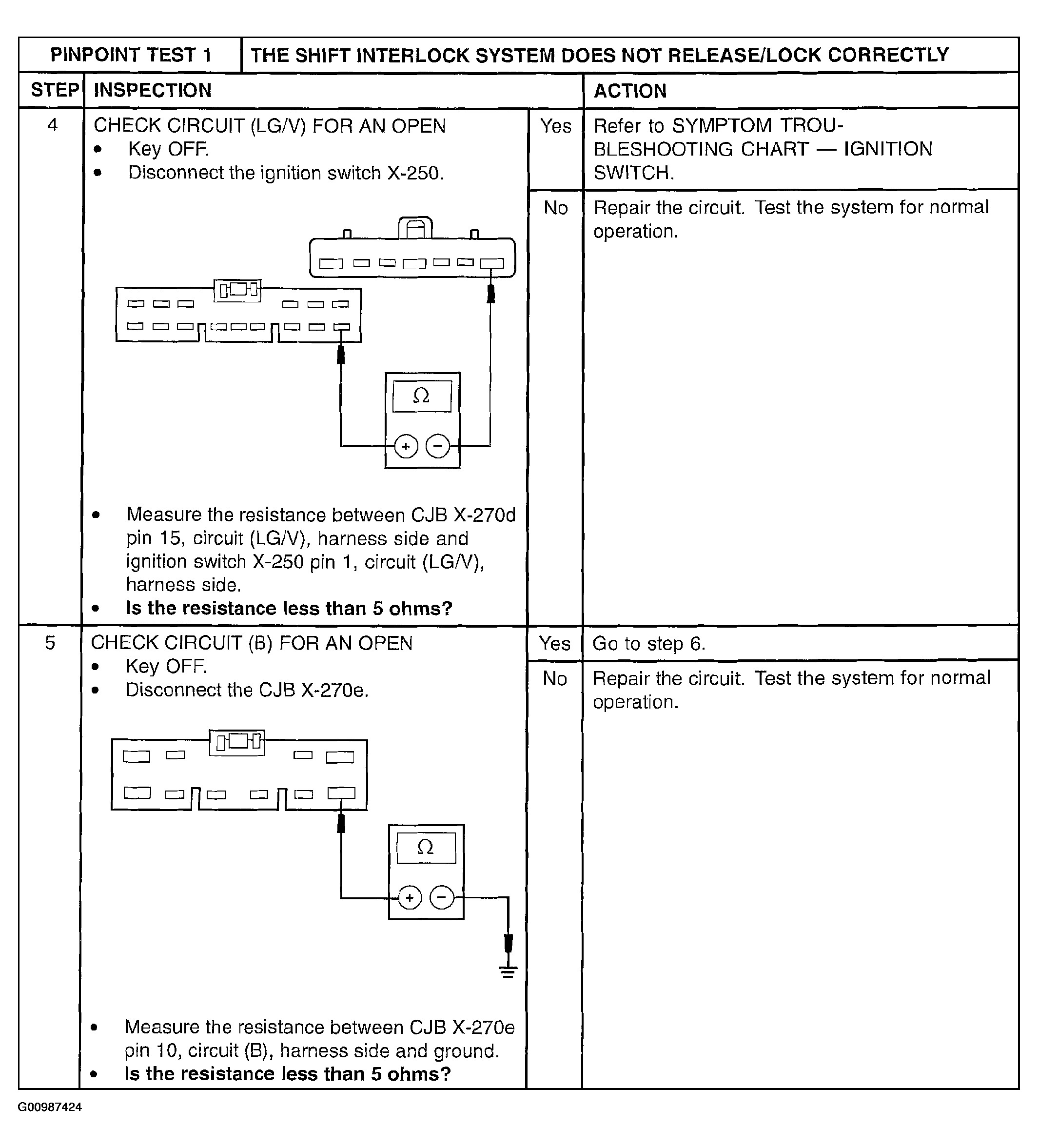

Fig 2: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 4 & 5)

Courtesy of MAZDA MOTORS CORP.

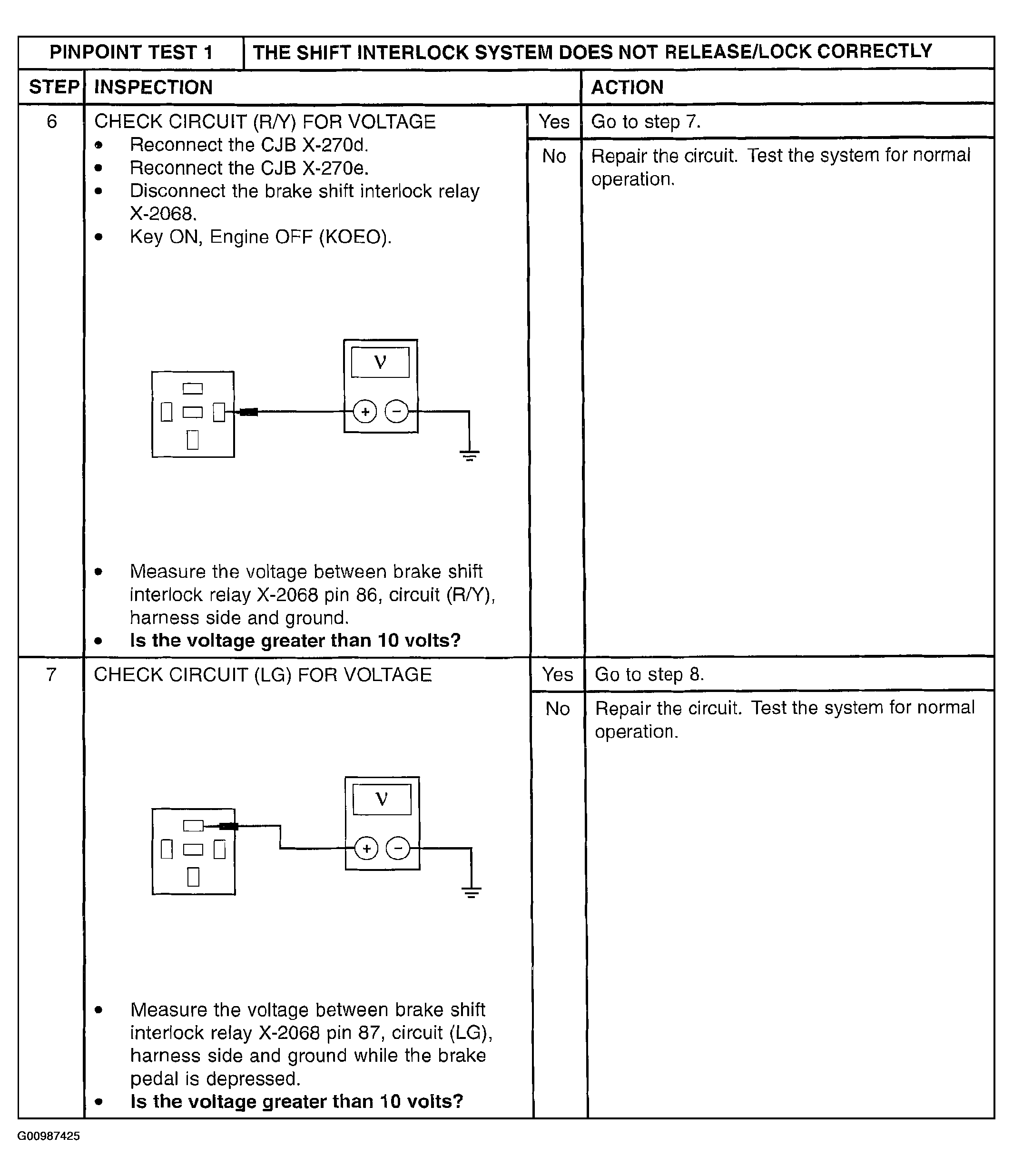

Fig 3: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 6 & 7)

Courtesy of MAZDA MOTORS CORP.

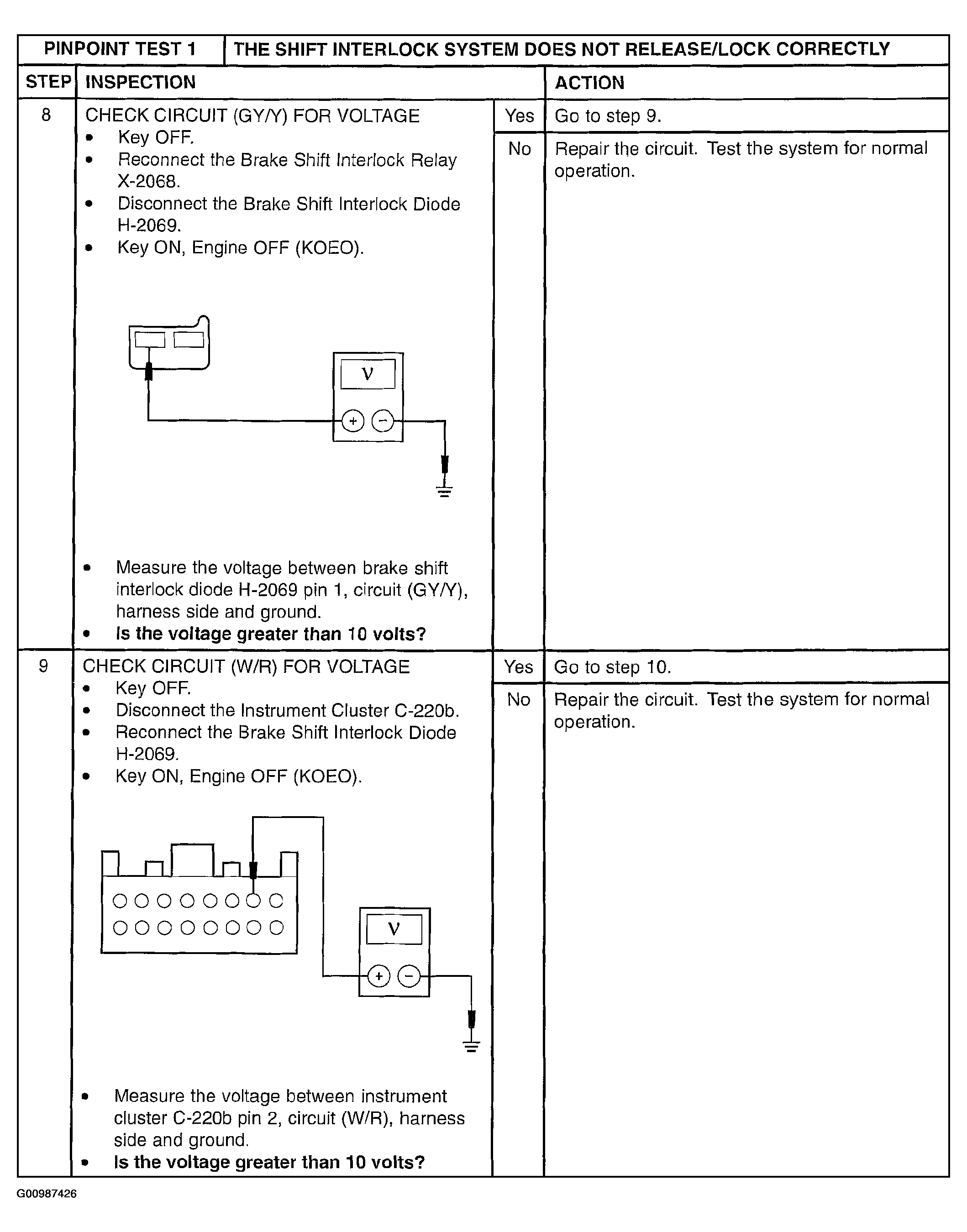

Fig 4: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 8 & 9)

Courtesy of MAZDA MOTORS CORP.

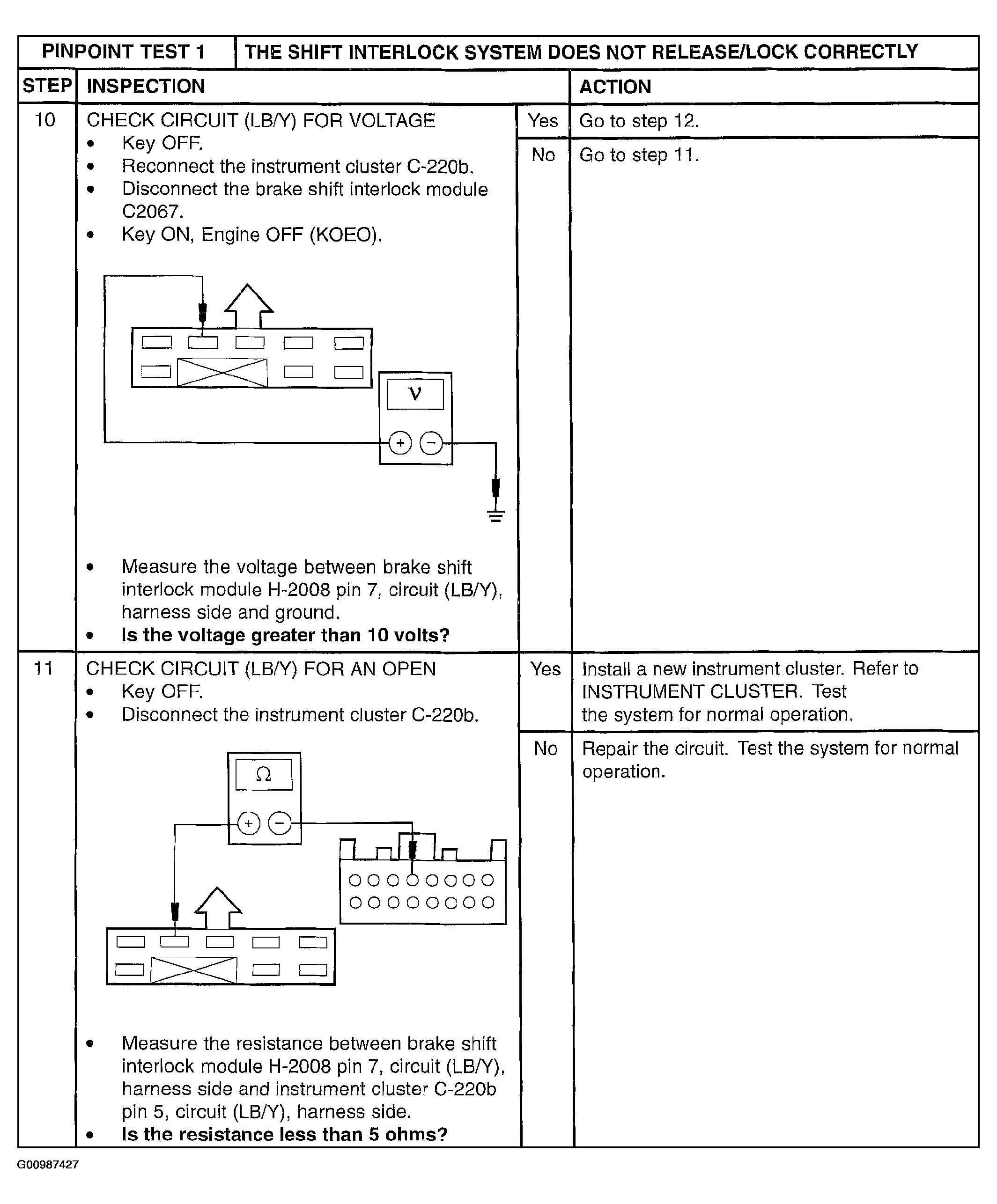

Fig 5: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 10 & 11)

Courtesy of MAZDA MOTORS CORP.

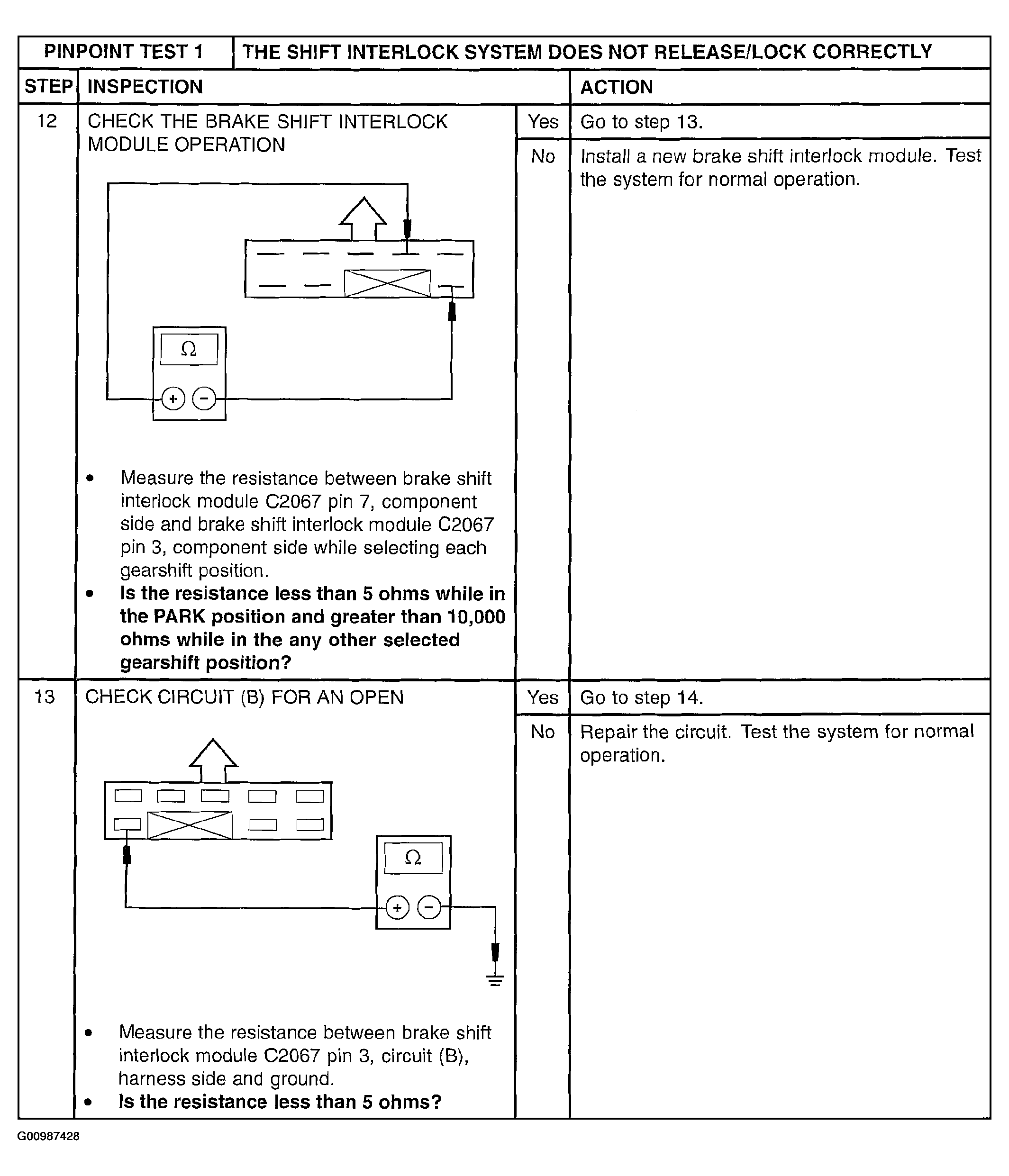

Fig 6: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 12 & 13)

Courtesy of MAZDA MOTORS CORP.

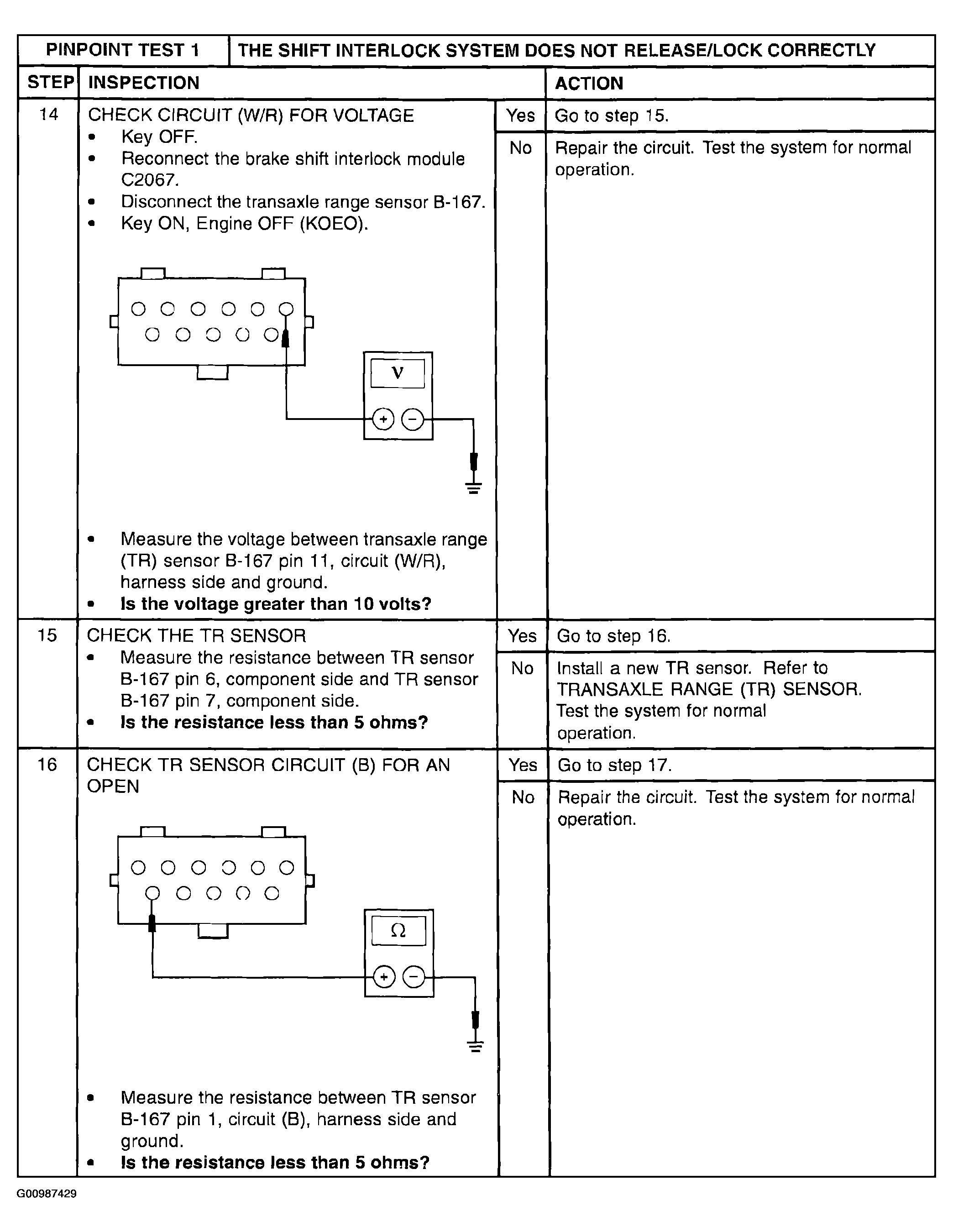

Fig 7: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 14-16)

Courtesy of MAZDA MOTORS CORP.

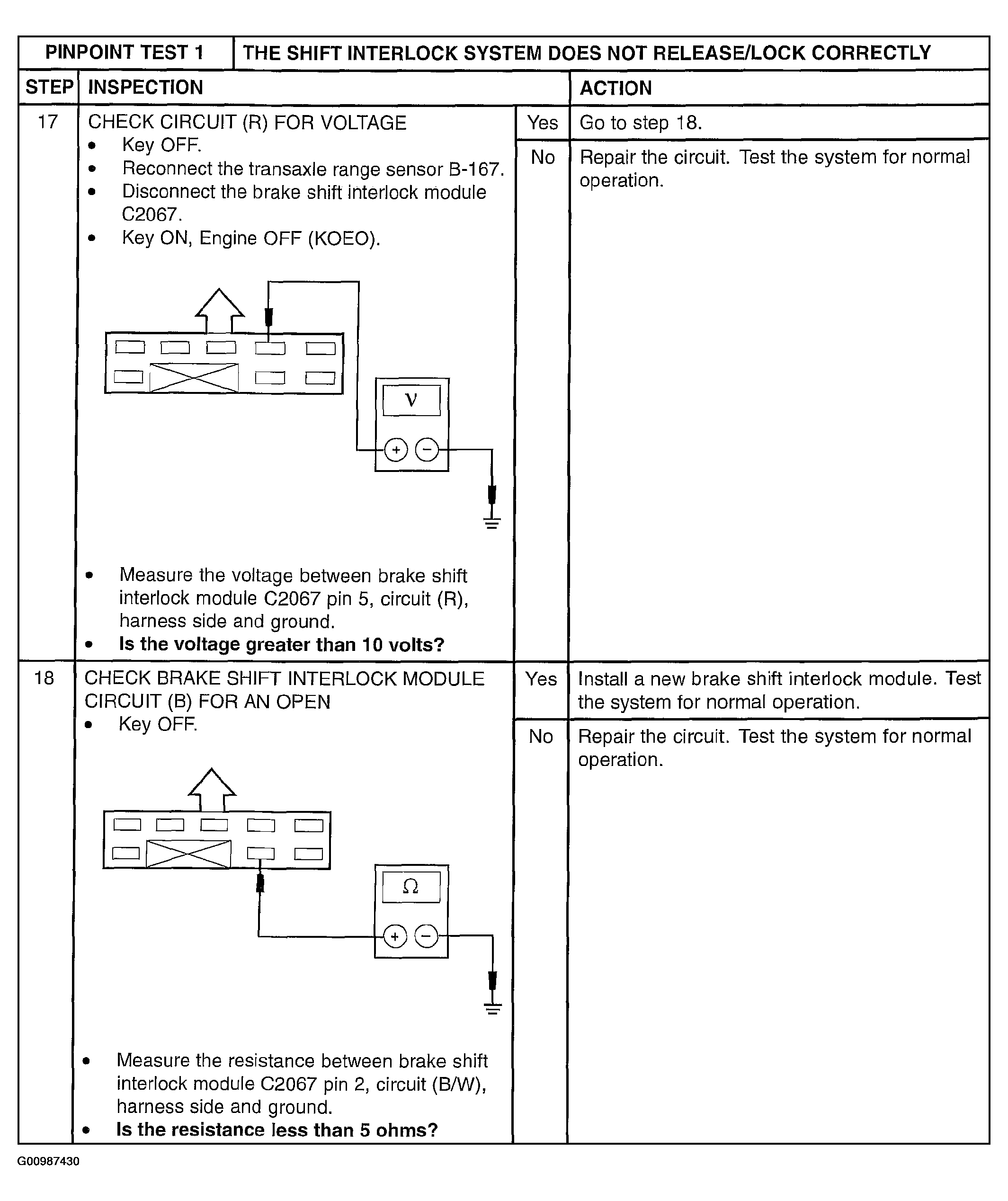

Fig 8: Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly (Steps 17 & 18)

Courtesy of MAZDA MOTORS CORP.
