PCM Diagnostic Trouble Code (DTC) Index

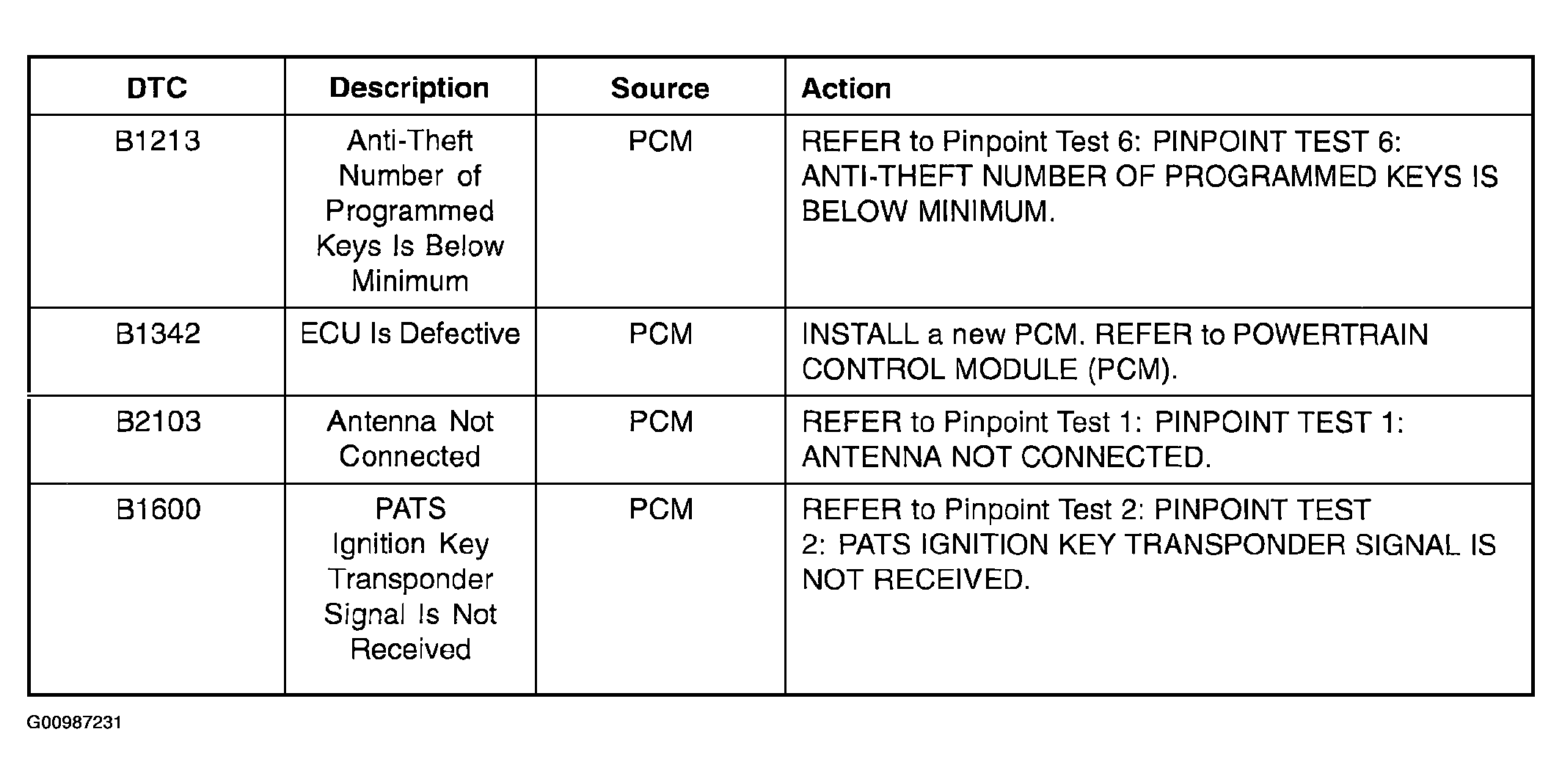

Fig 1: PCM DTC's B1213, B1342, B2103 & B1600 Descriptions
G00987231Courtesy of MAZDA MOTORS CORP.

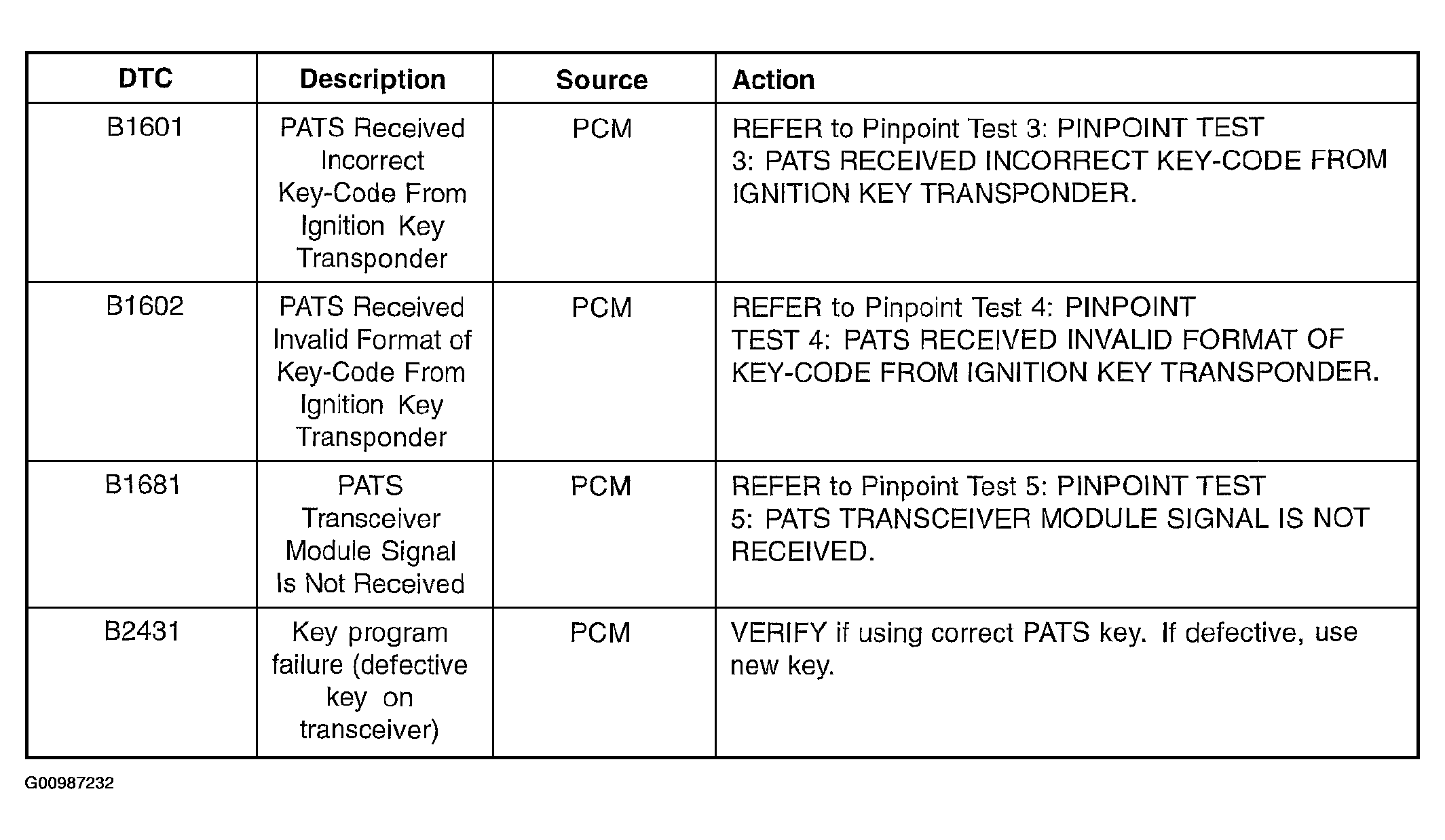

Fig 2: PCM DTC's B1601, B1602, B1681 & B2431 Descriptions
G00987232Courtesy of MAZDA MOTORS CORP.
