Pinpoint Test 5: Pats Transceiver Module Signal Is Not Received

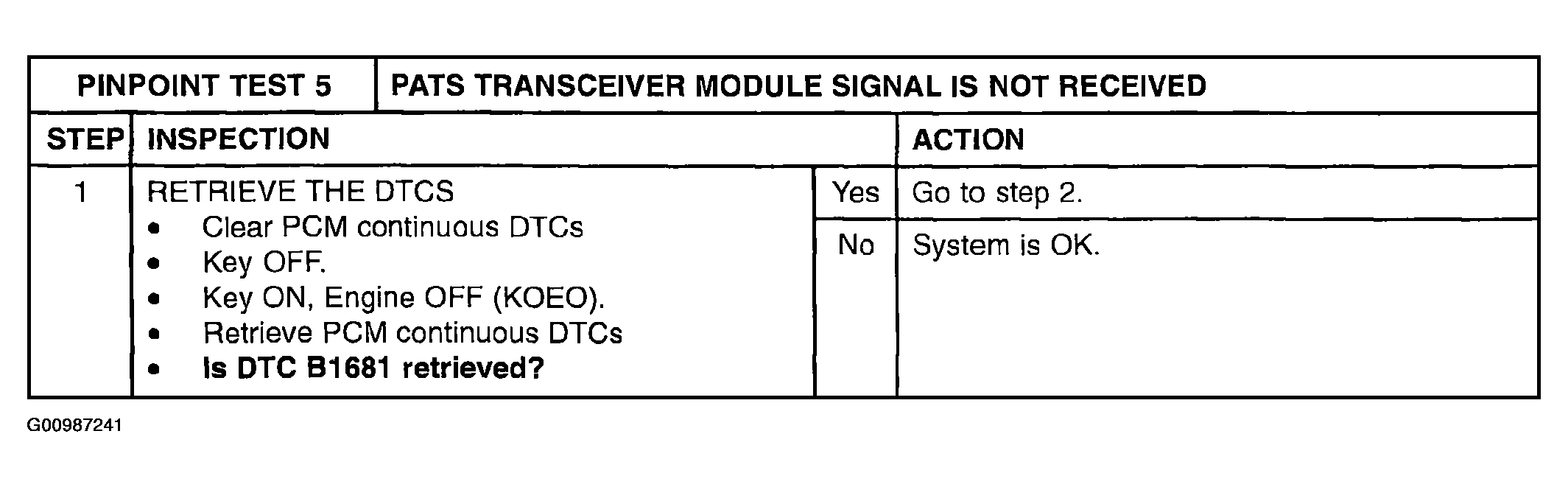

Fig 1: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Step 1)

Courtesy of MAZDA MOTORS CORP.

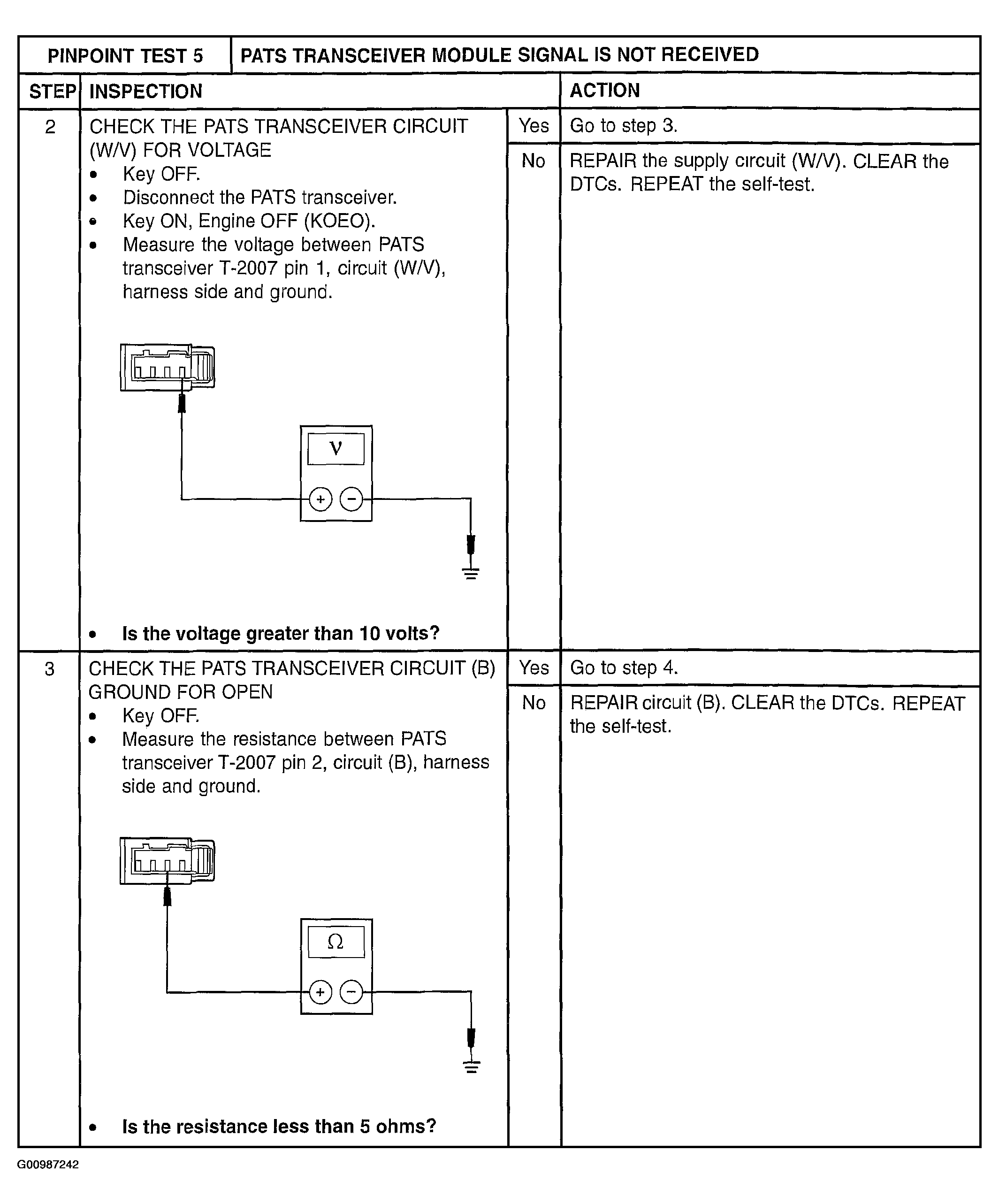

Fig 2: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

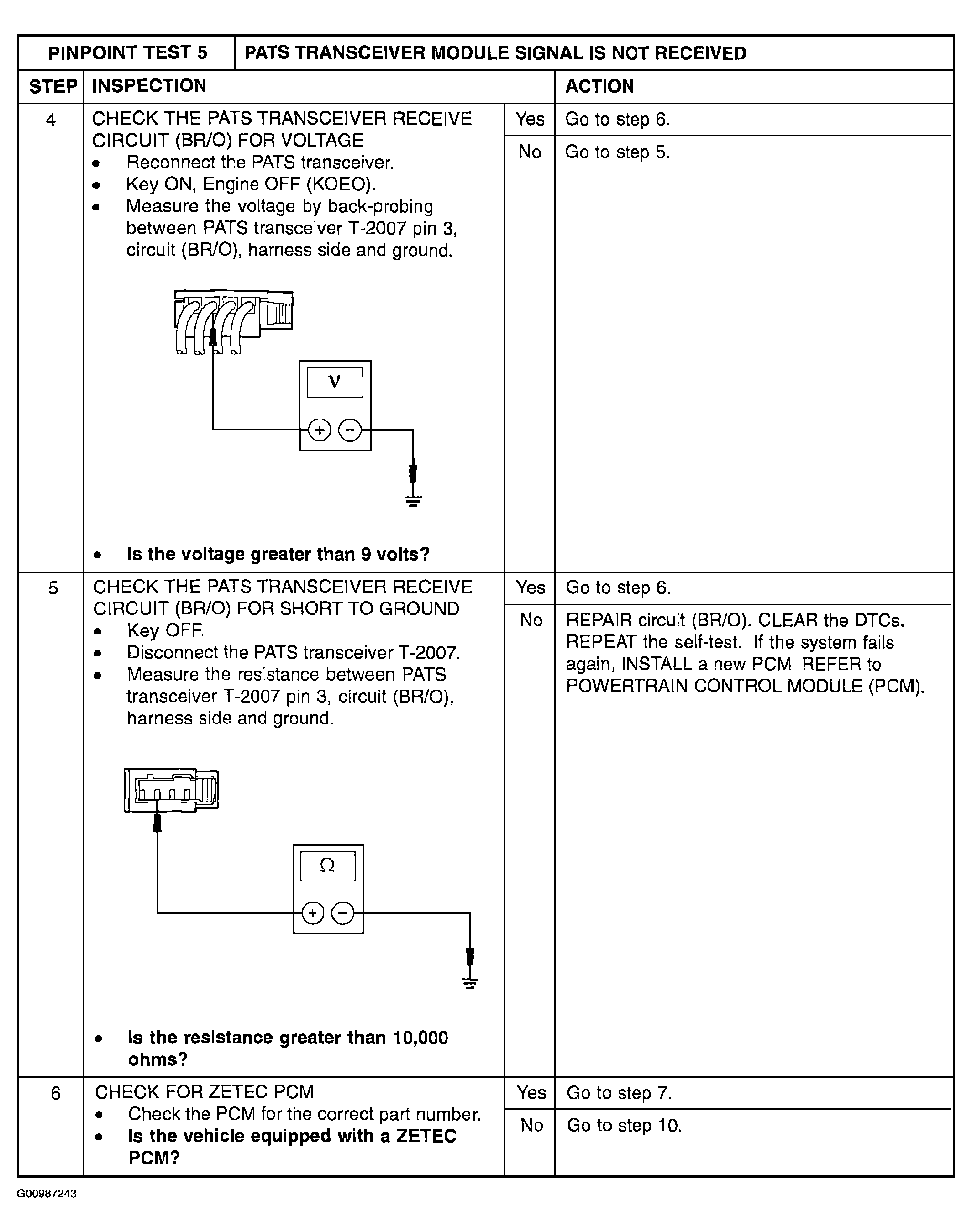

Fig 3: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Steps 4-6)

Courtesy of MAZDA MOTORS CORP.

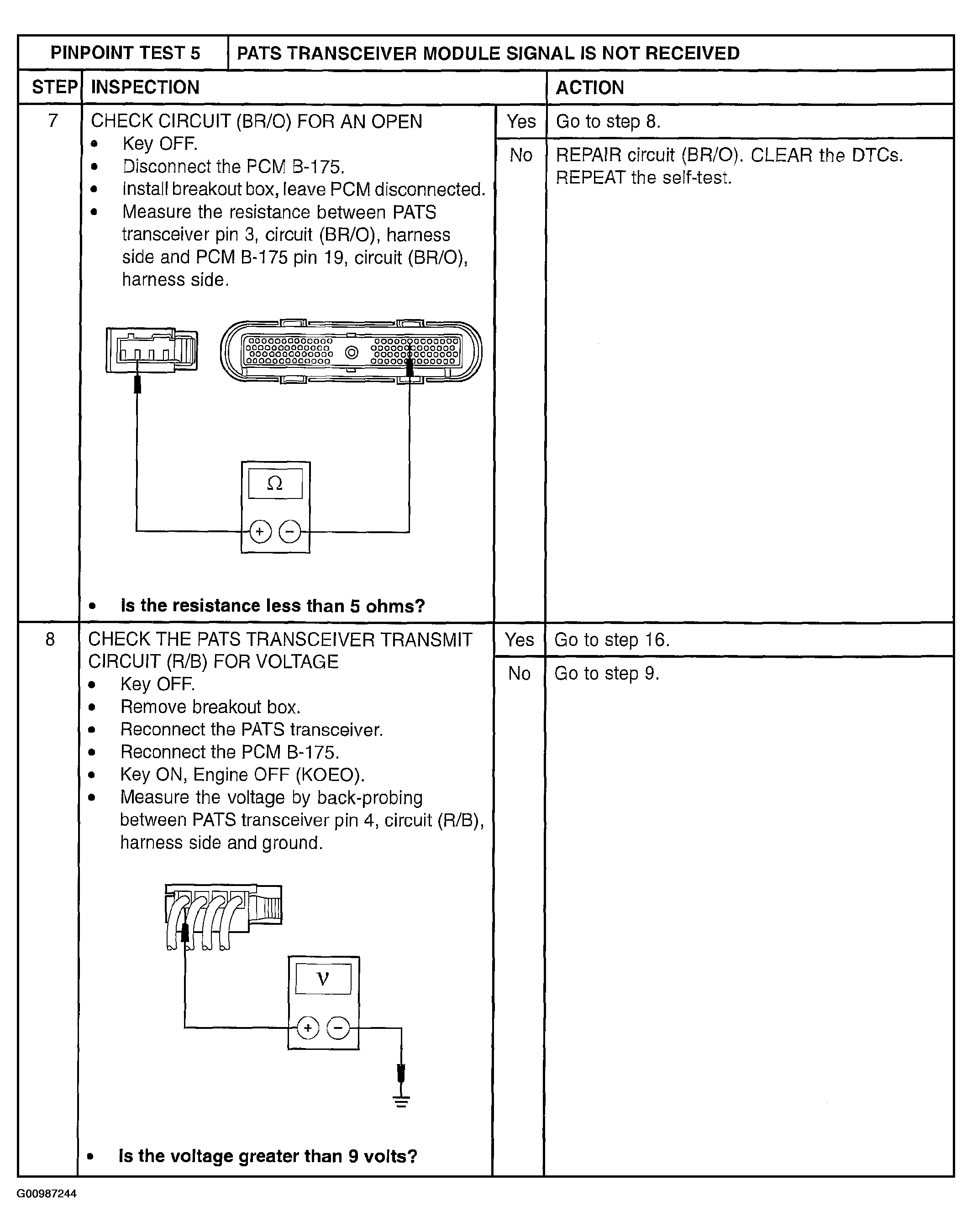

Fig 4: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Steps 7-8)

Courtesy of MAZDA MOTORS CORP.

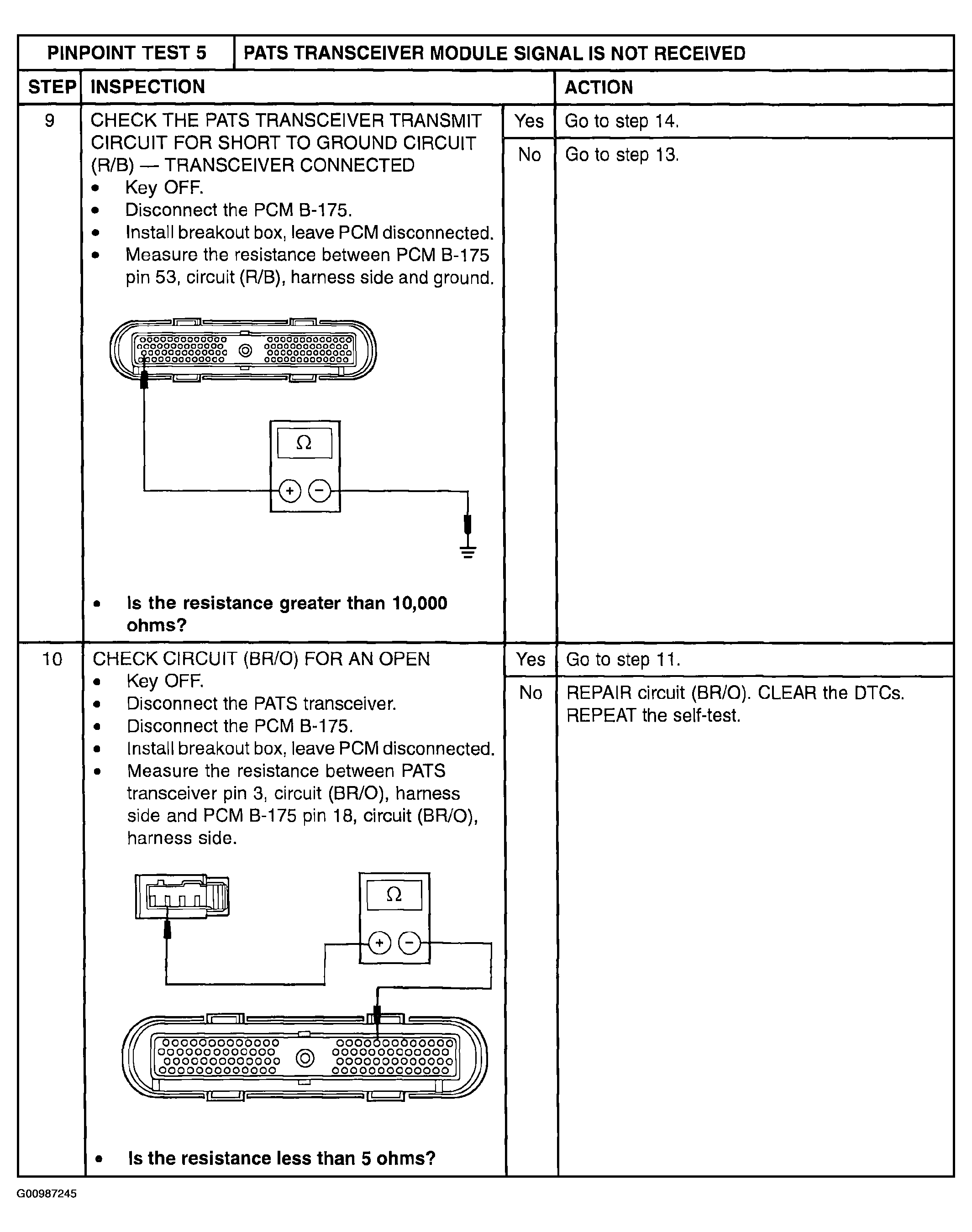

Fig 5: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Steps 9-10)

Courtesy of MAZDA MOTORS CORP.

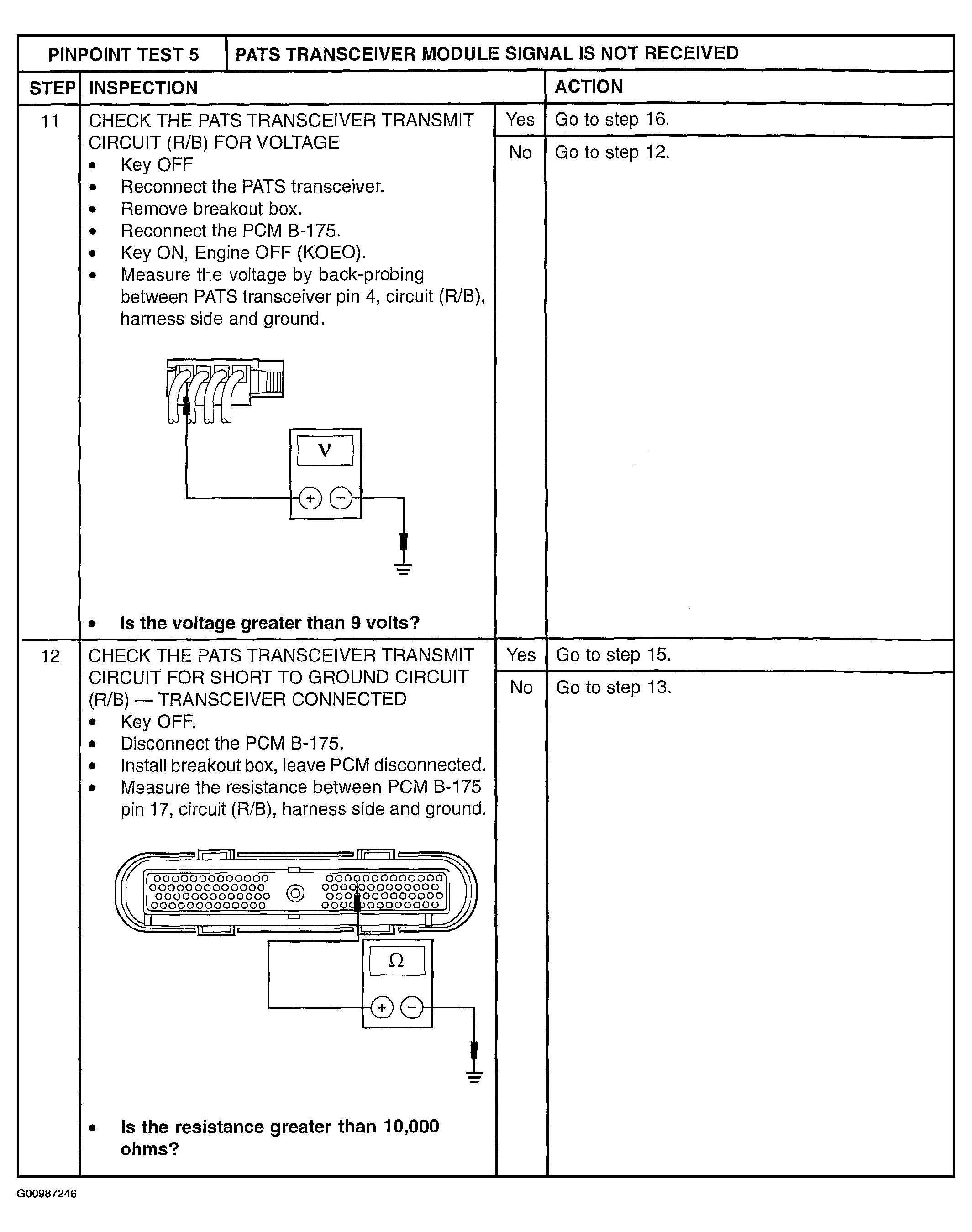

Fig 6: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Steps 11-2)

Courtesy of MAZDA MOTORS CORP.

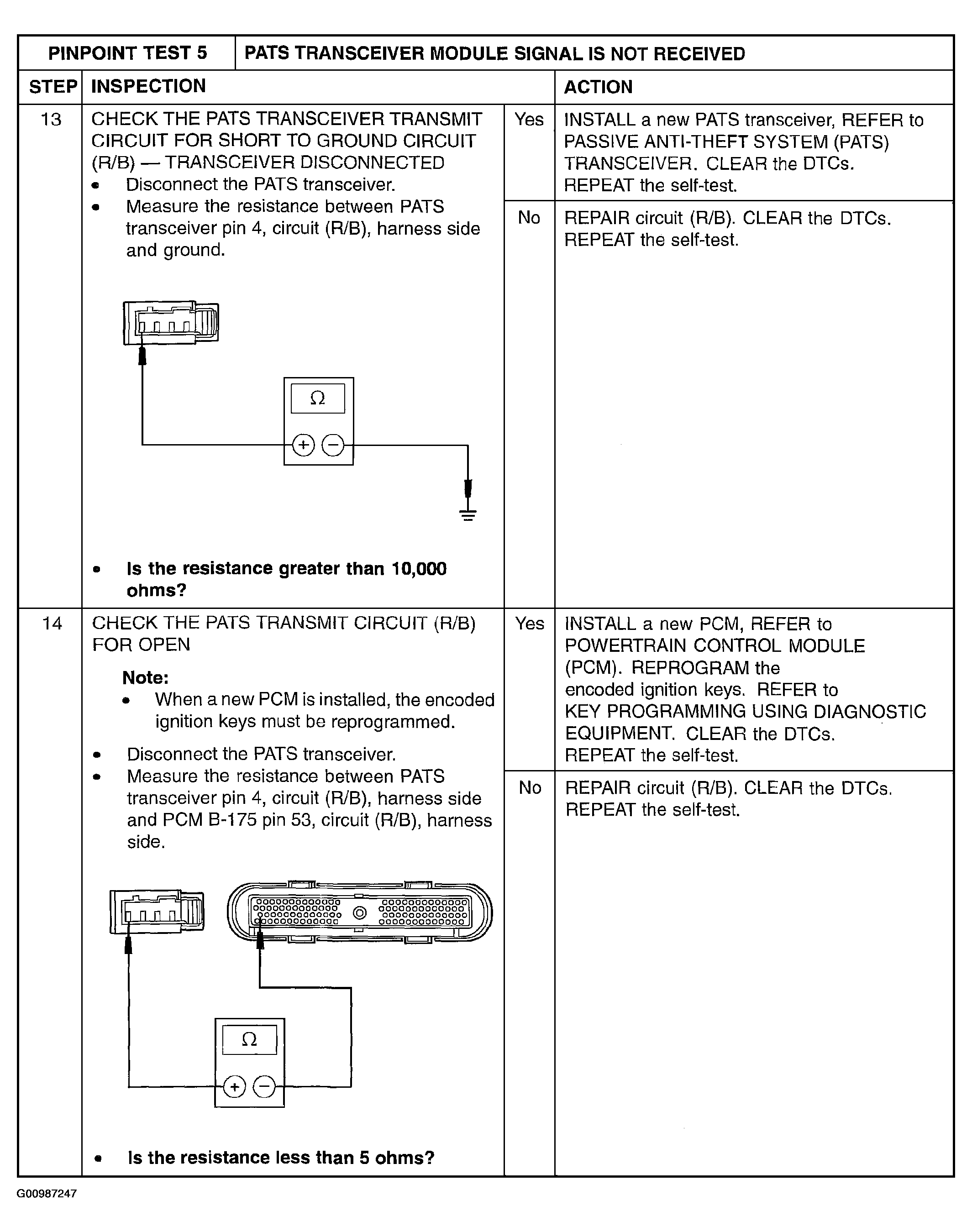

Fig 7: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Steps 13-14)

Courtesy of MAZDA MOTORS CORP.

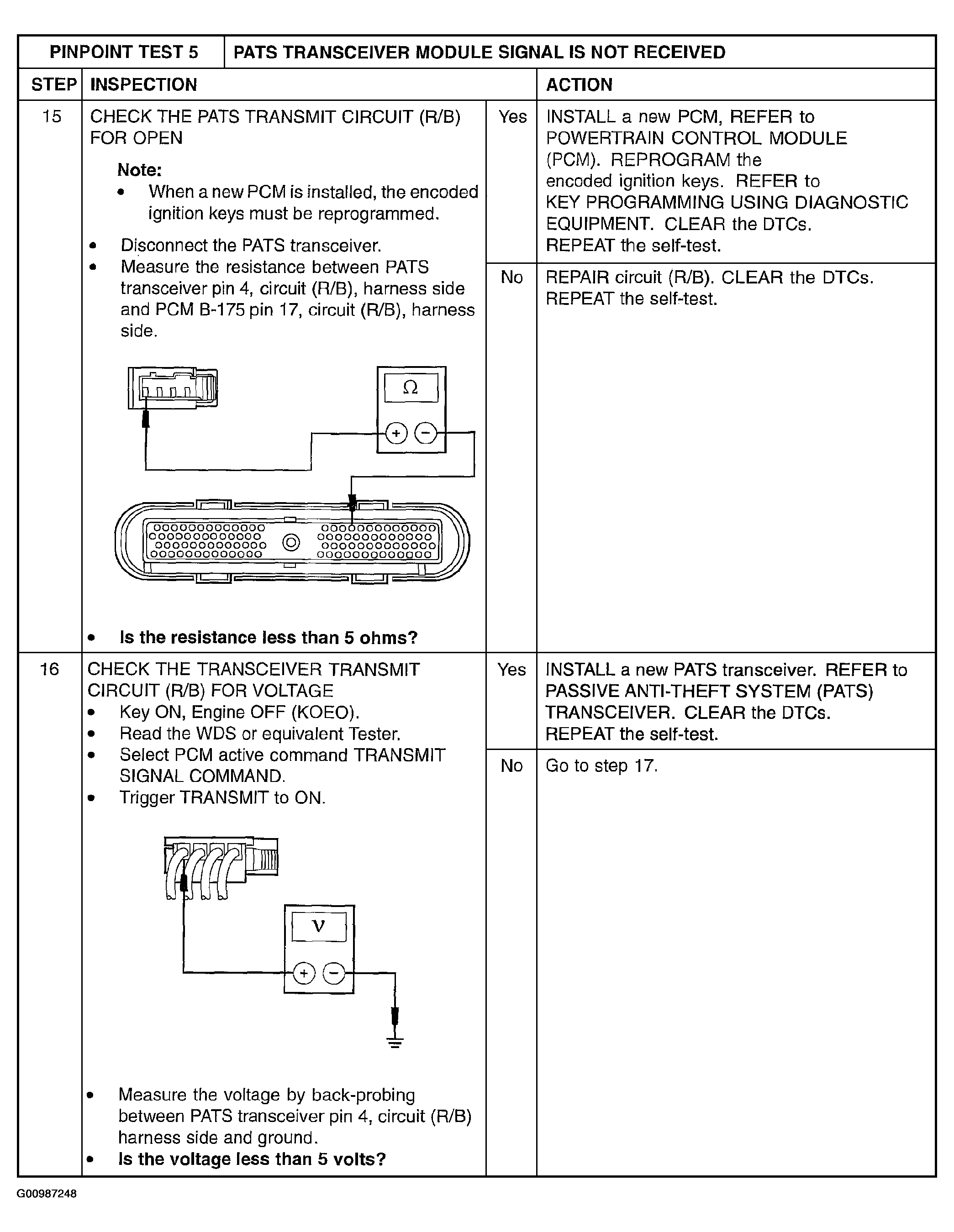

Fig 8: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Steps 15-16)

Courtesy of MAZDA MOTORS CORP.

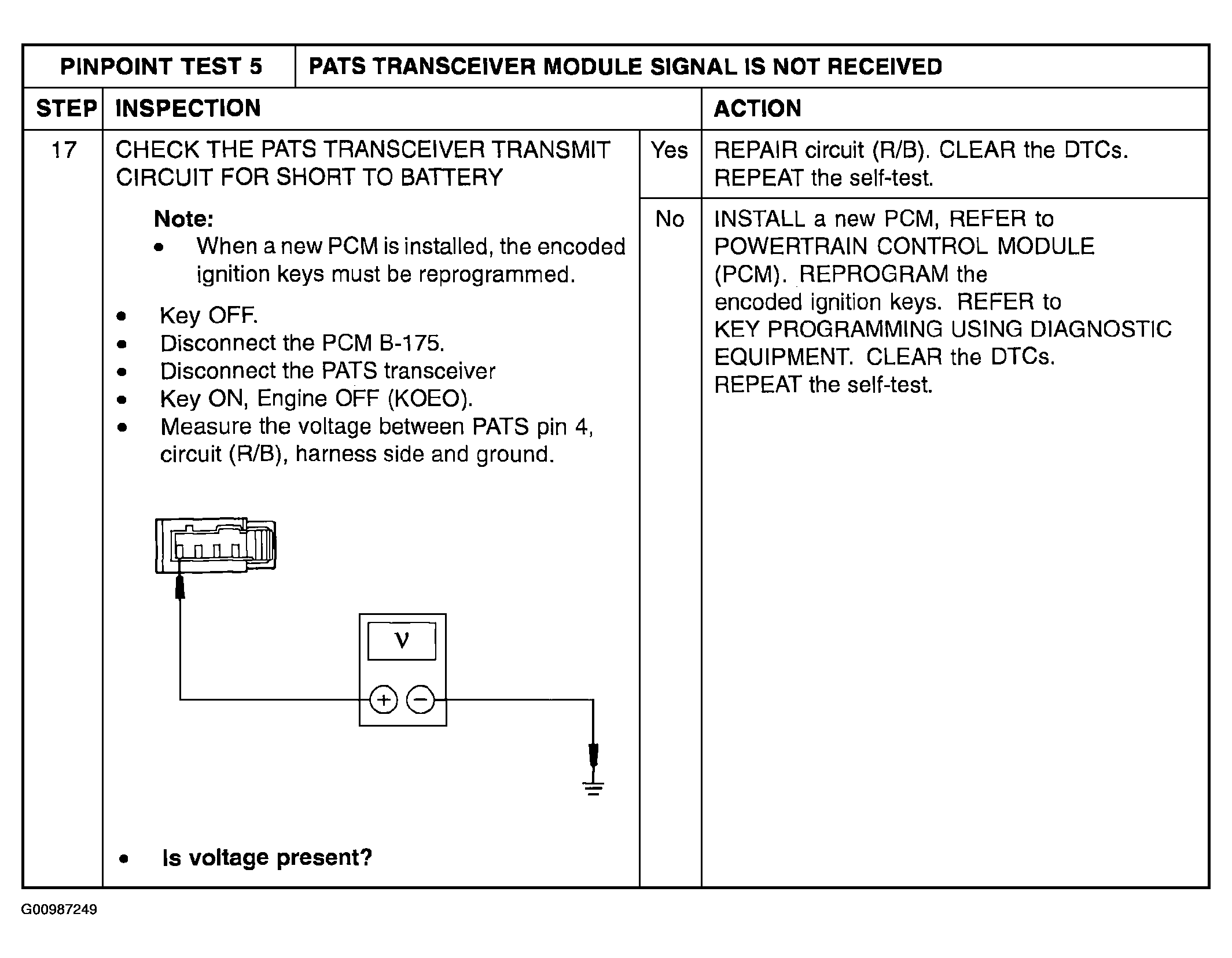

Fig 9: Pinpoint Test 5: PATS Transceiver Module Signal Is Not Received - Inspection Procedure Chart (Step 17)

Courtesy of MAZDA MOTORS CORP.
