Pinpoint Test 6: Anti-Theft Number Of Programmed Keys Is Below Minimum

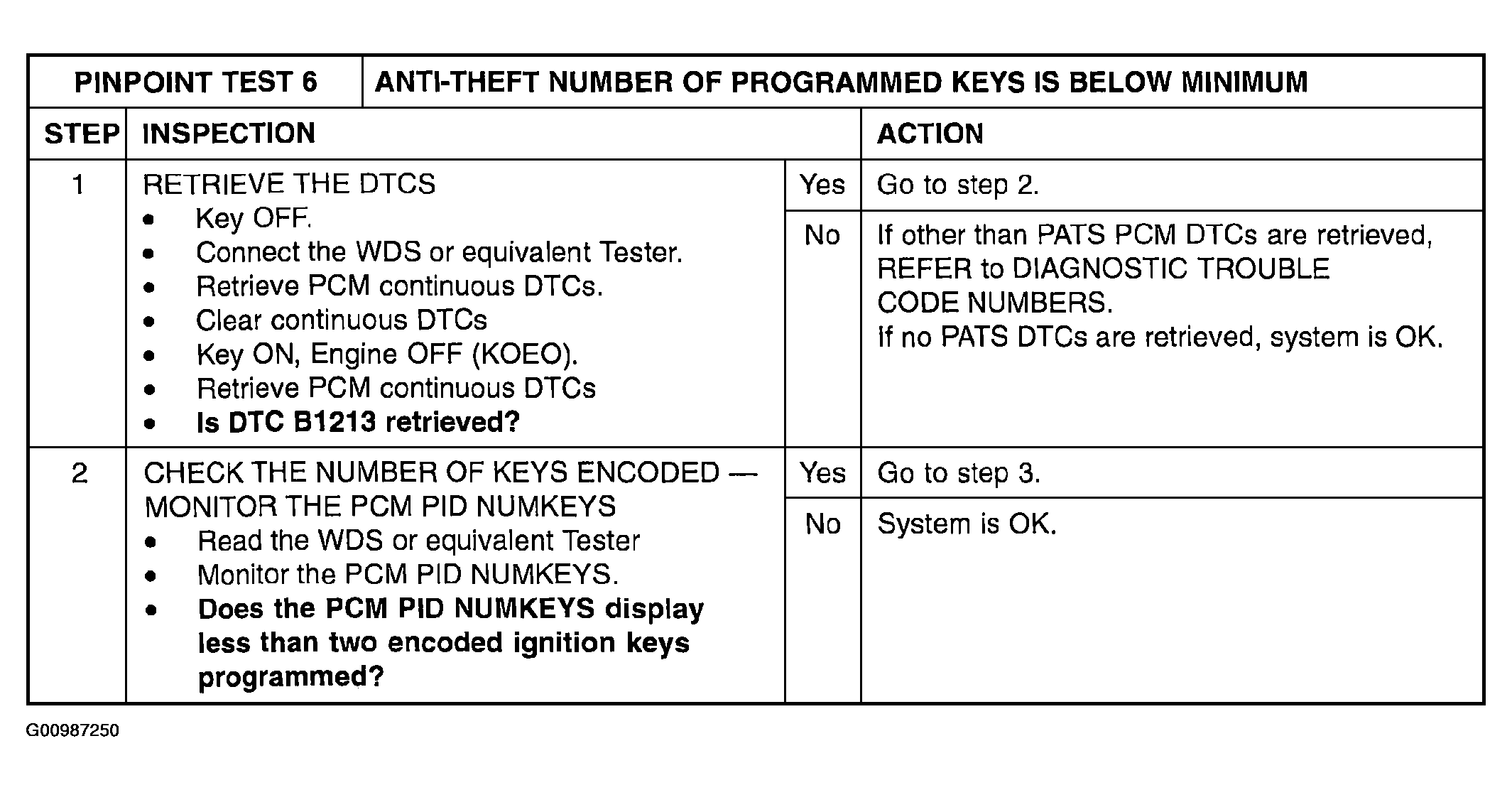

Fig 1: Pinpoint Test 6: Anti-Theft Number Of Programmed Keys Is Below Minimum - Inspection Procedure Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

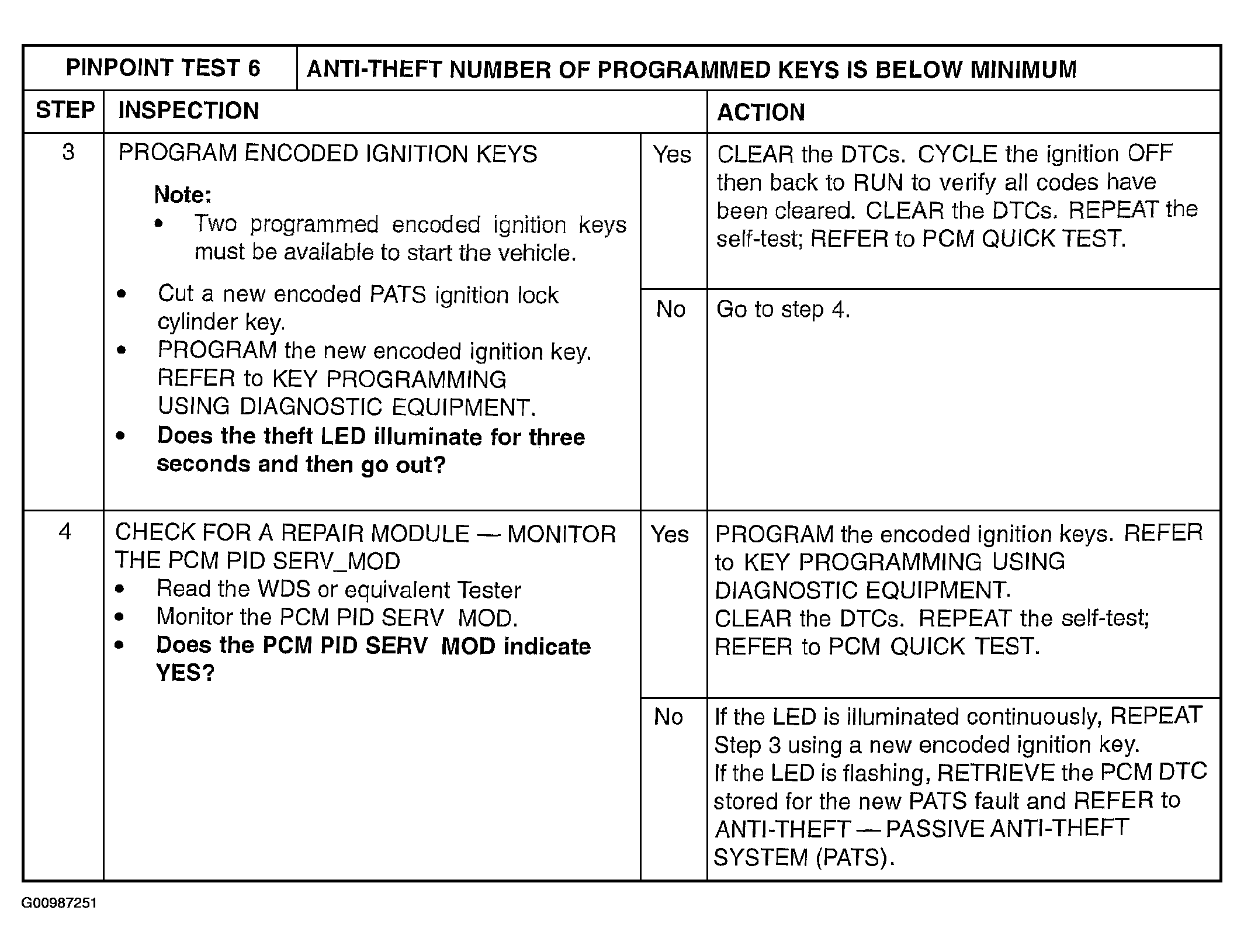

Fig 2: Pinpoint Test 6: Anti-Theft Number Of Programmed Keys Is Below Minimum - Inspection Procedure Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
