Pinpoint Test 1: All Door Locks Are Inoperative

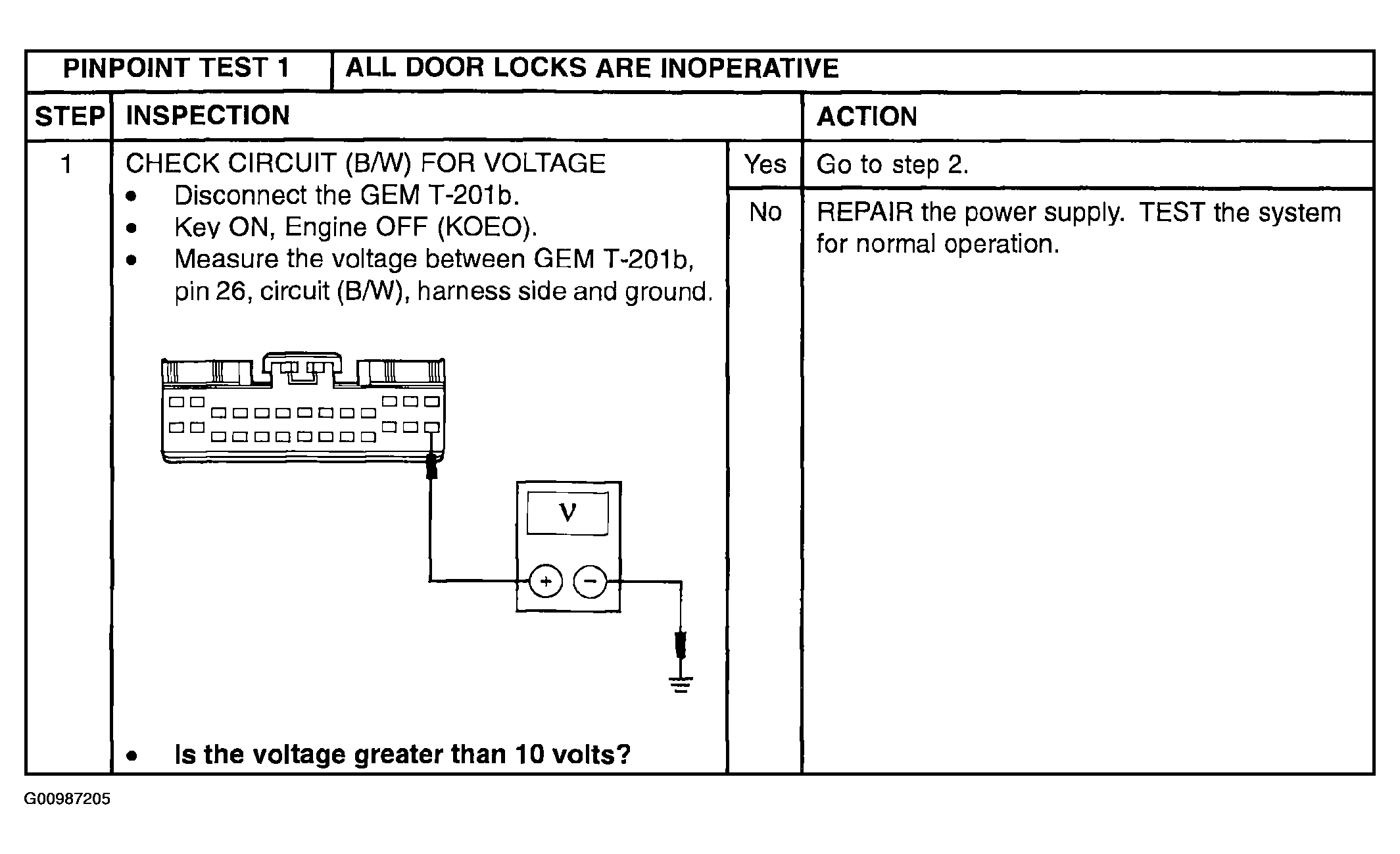

Fig 1: Pinpoint Test 1: All Door Locks Are Inoperative - Inspection Procedure Chart (Step 1)

Courtesy of MAZDA MOTORS CORP.

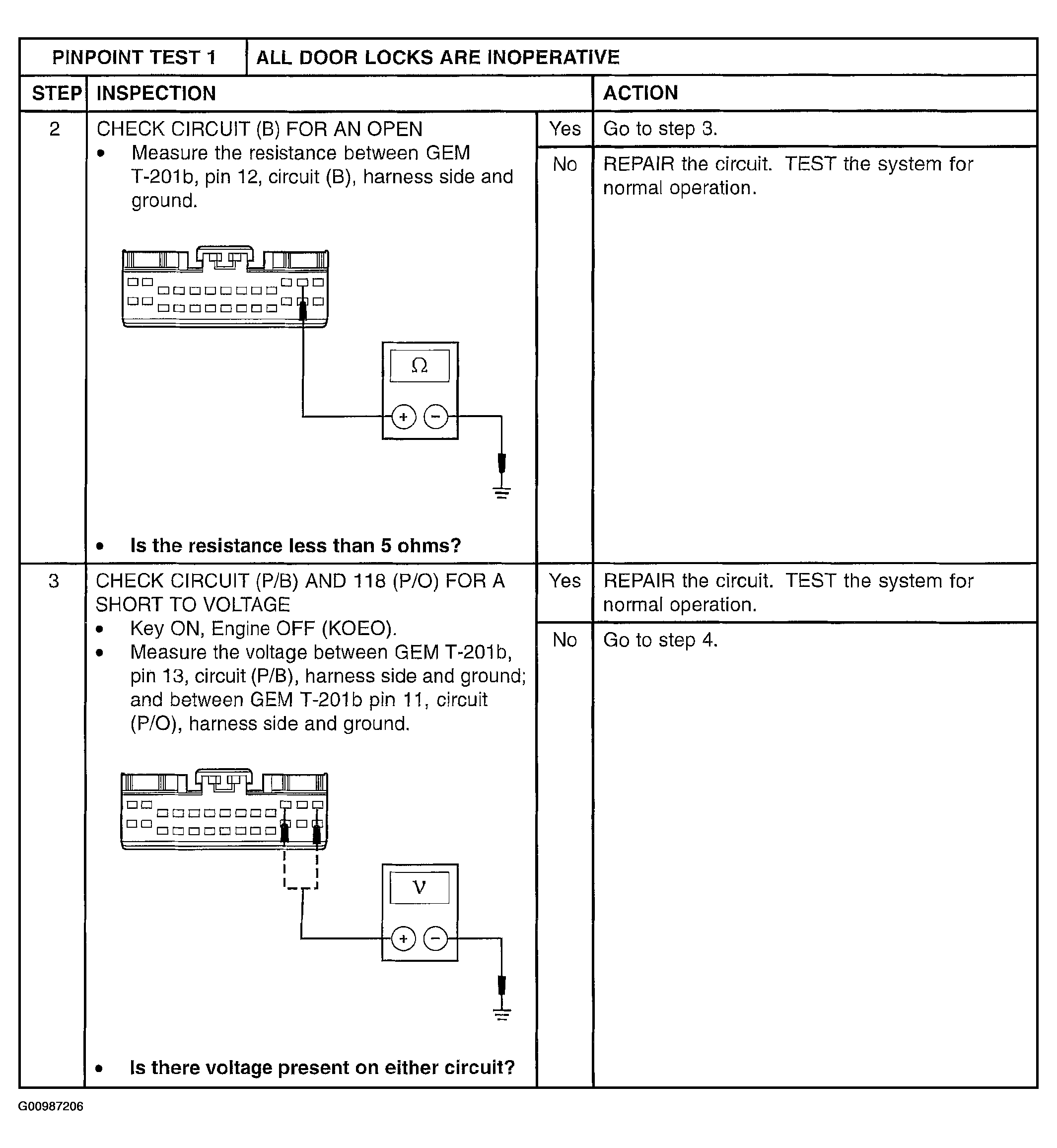

Fig 2: Pinpoint Test 1: All Door Locks Are Inoperative - Inspection Procedure Chart (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

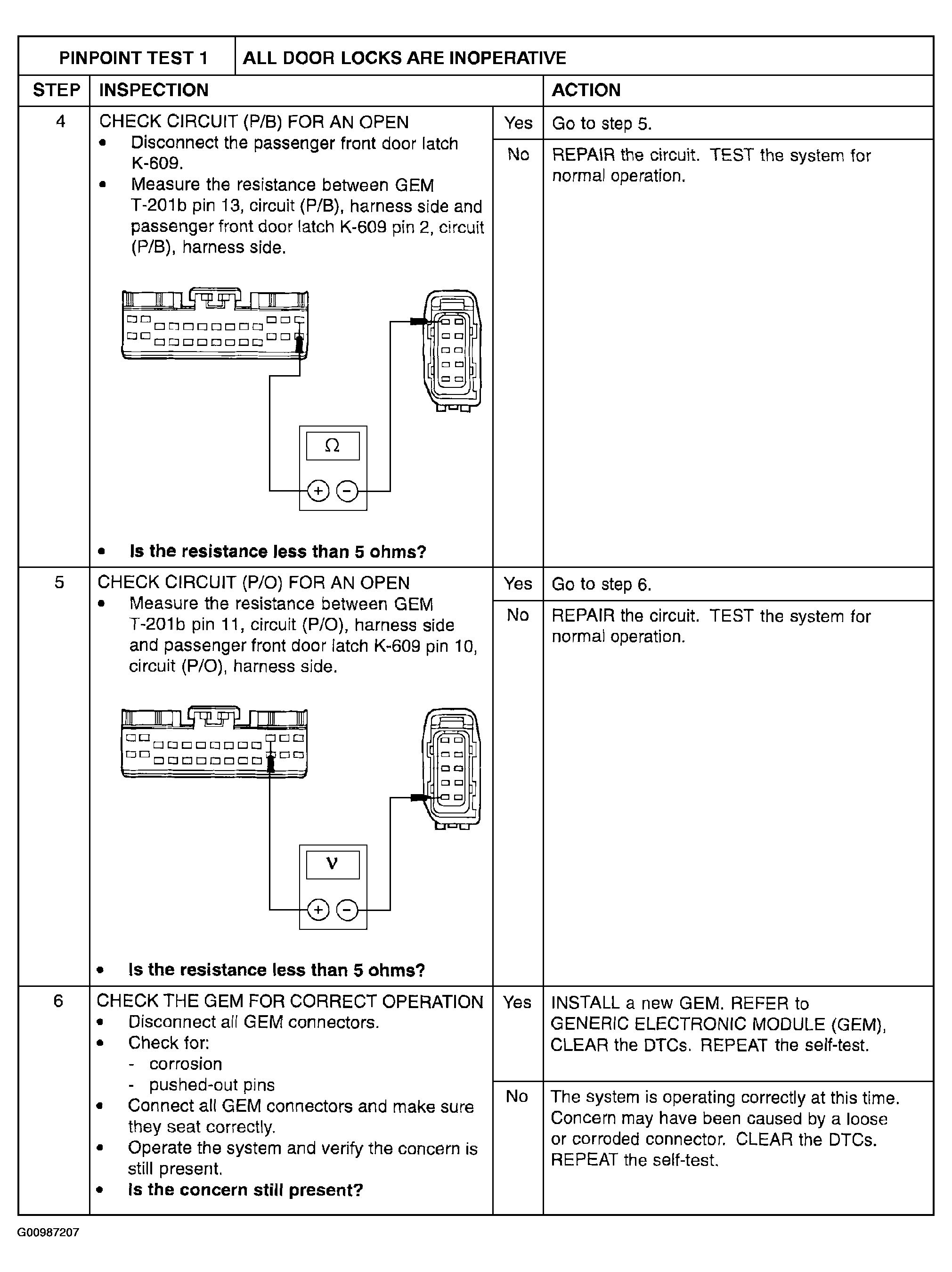

Fig 3: Pinpoint Test 1: All Door Locks Are Inoperative - Inspection Procedure Chart (Steps 4-6)

Courtesy of MAZDA MOTORS CORP.
