Pinpoint Test 3: All Door Locks Are Inoperative From A Single Key Cylinder Switch

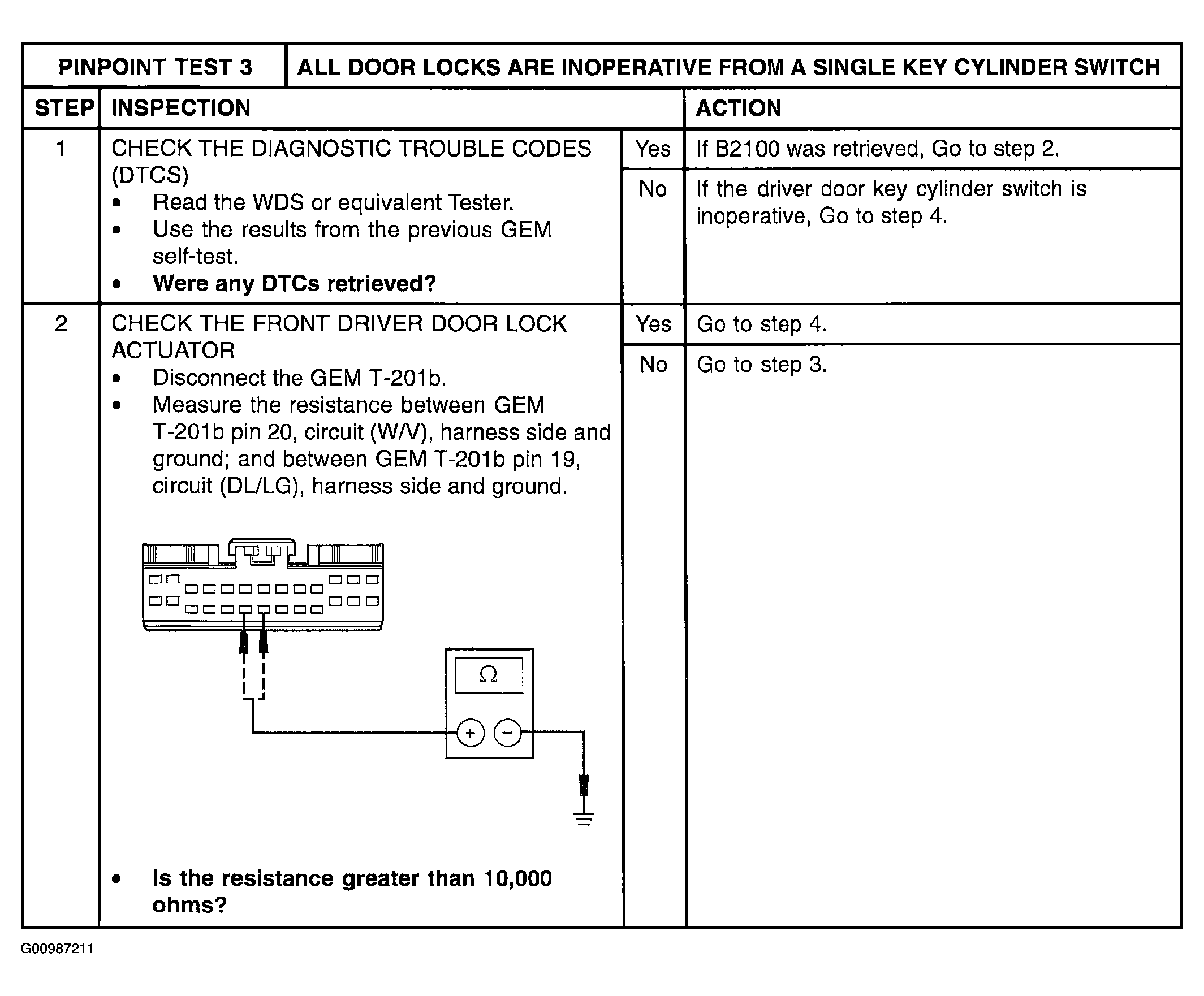

Fig 1: Pinpoint Test 3: All Door Locks Are Inoperative From A Single Key Cylinder Switch - Inspection Procedure Chart (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

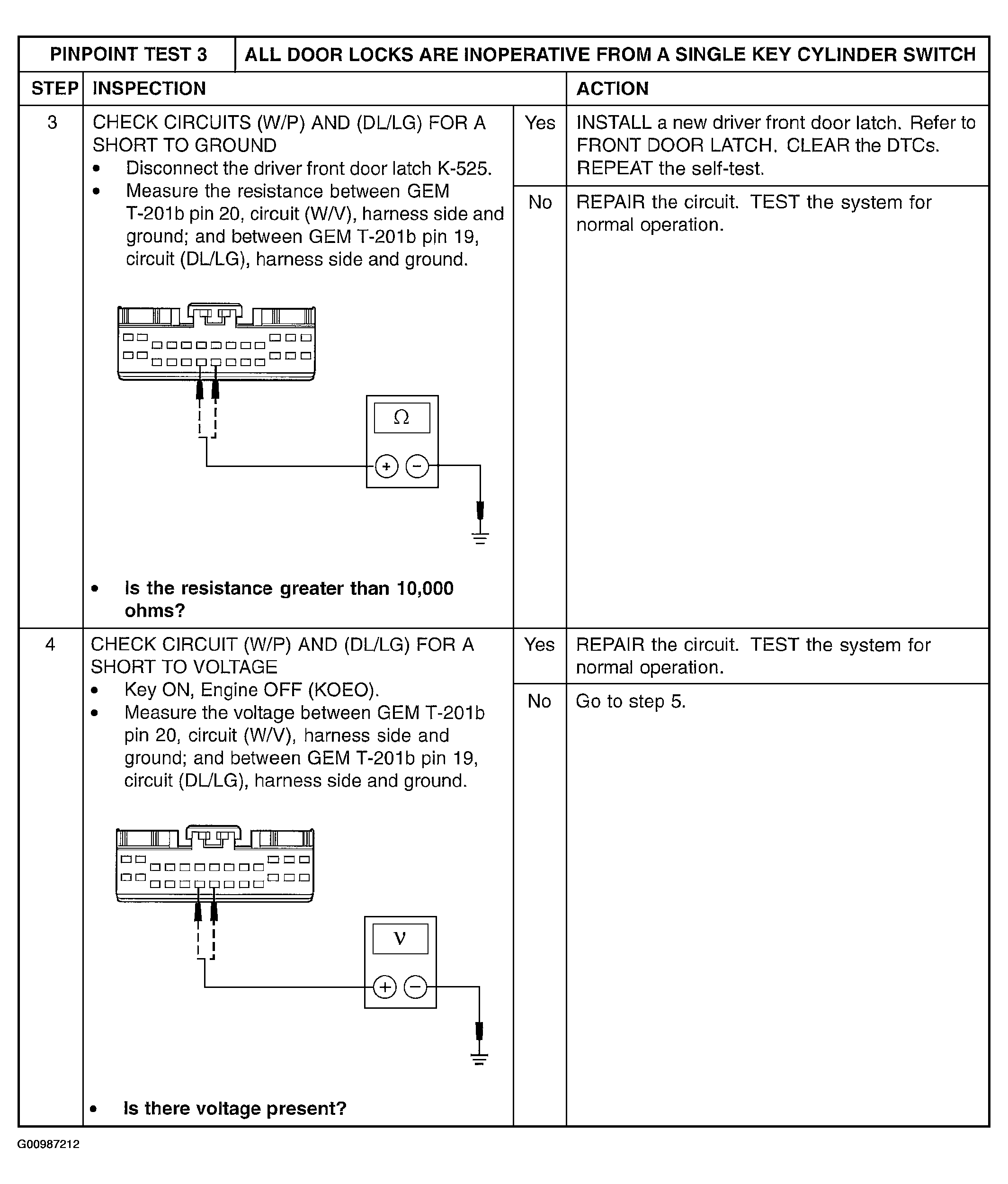

Fig 2: Pinpoint Test 3: All Door Locks Are Inoperative From A Single Key Cylinder Switch - Inspection Procedure Chart (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

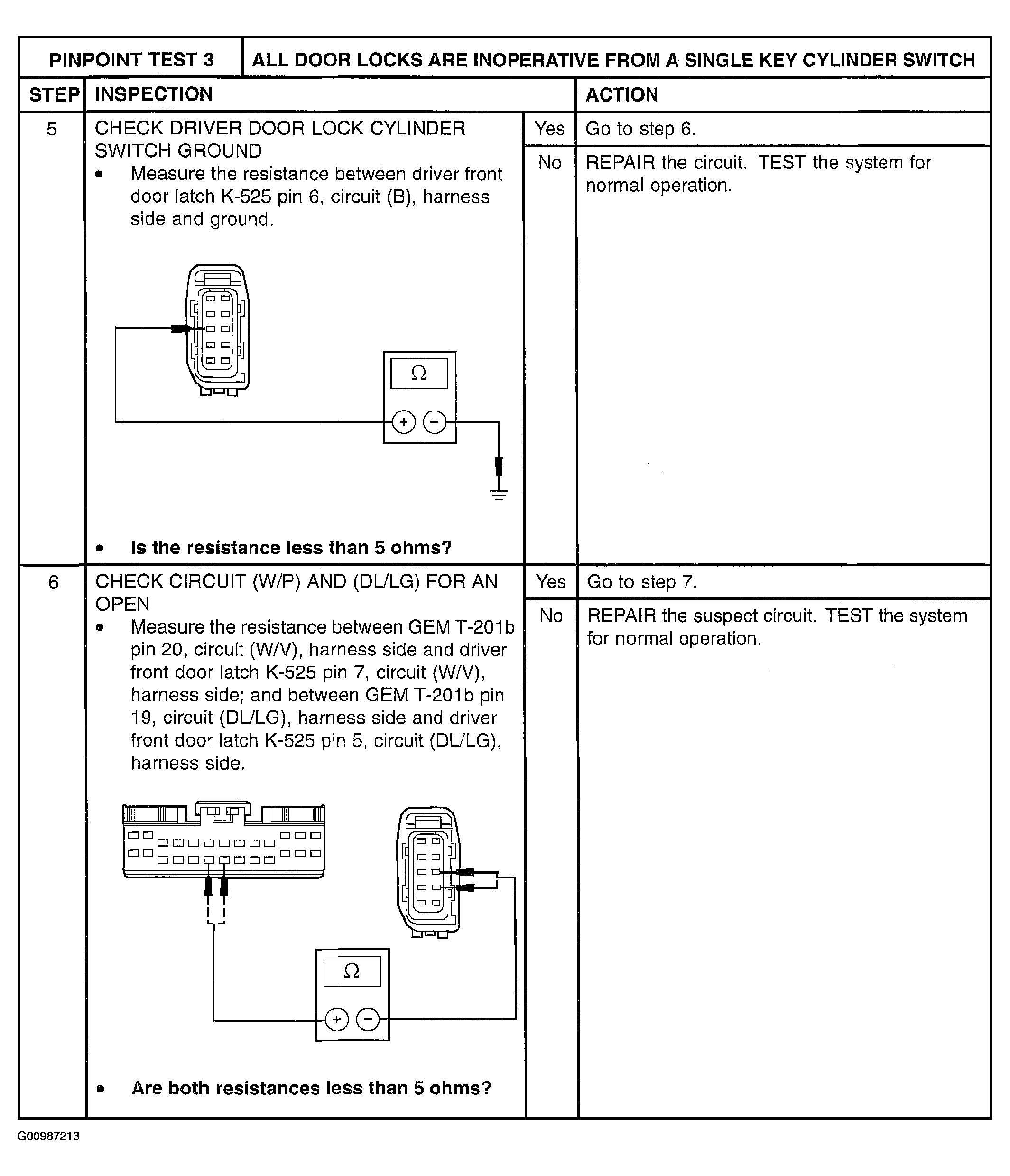

Fig 3: Pinpoint Test 3: All Door Locks Are Inoperative From A Single Key Cylinder Switch - Inspection Procedure Chart (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

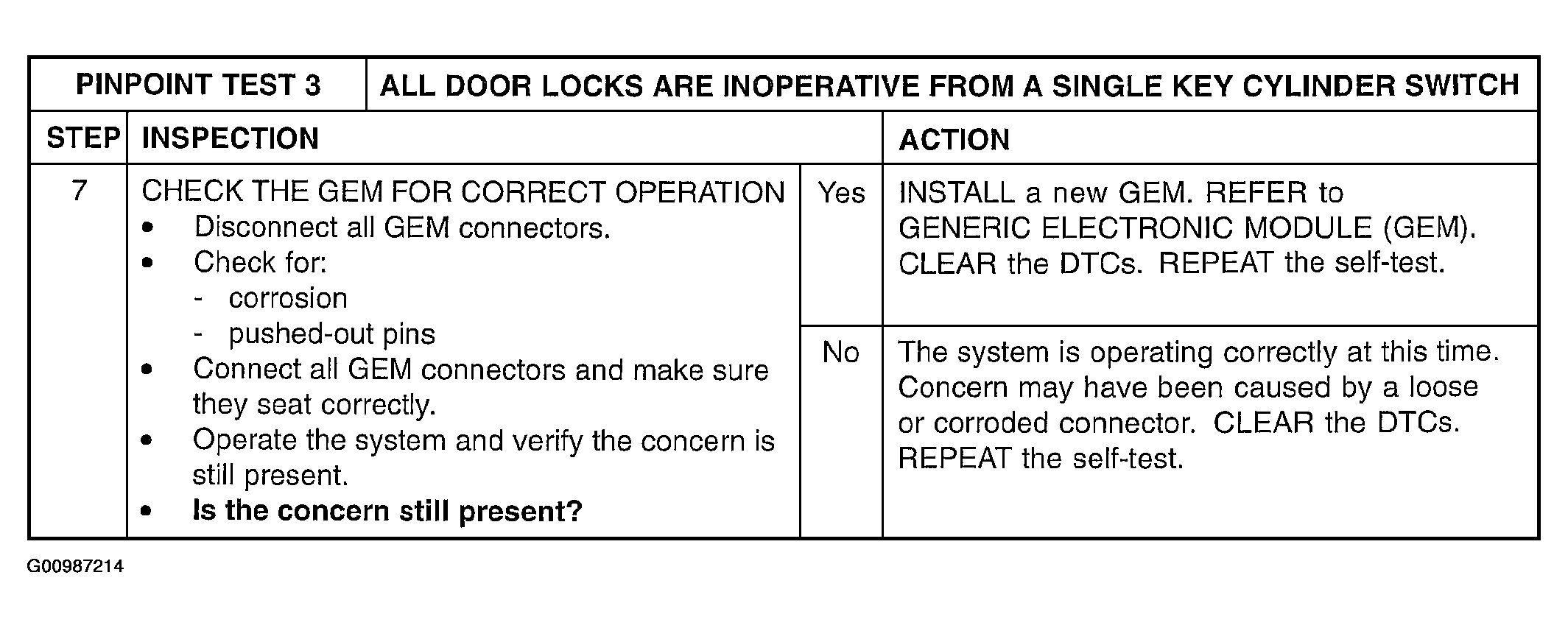

Fig 4: Pinpoint Test 3: All Door Locks Are Inoperative From A Single Key Cylinder Switch - Inspection Procedure Chart (Step 7)
