Pinpoint Test 7: The Doors Do Not Lock/Unlock Using The Keyless Entry Remote Transmitter

NOTE:

• All remote transmitters must be present to begin diagnosis of the Remote Keyless Entry (RKE) system.

NOTE:

• Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

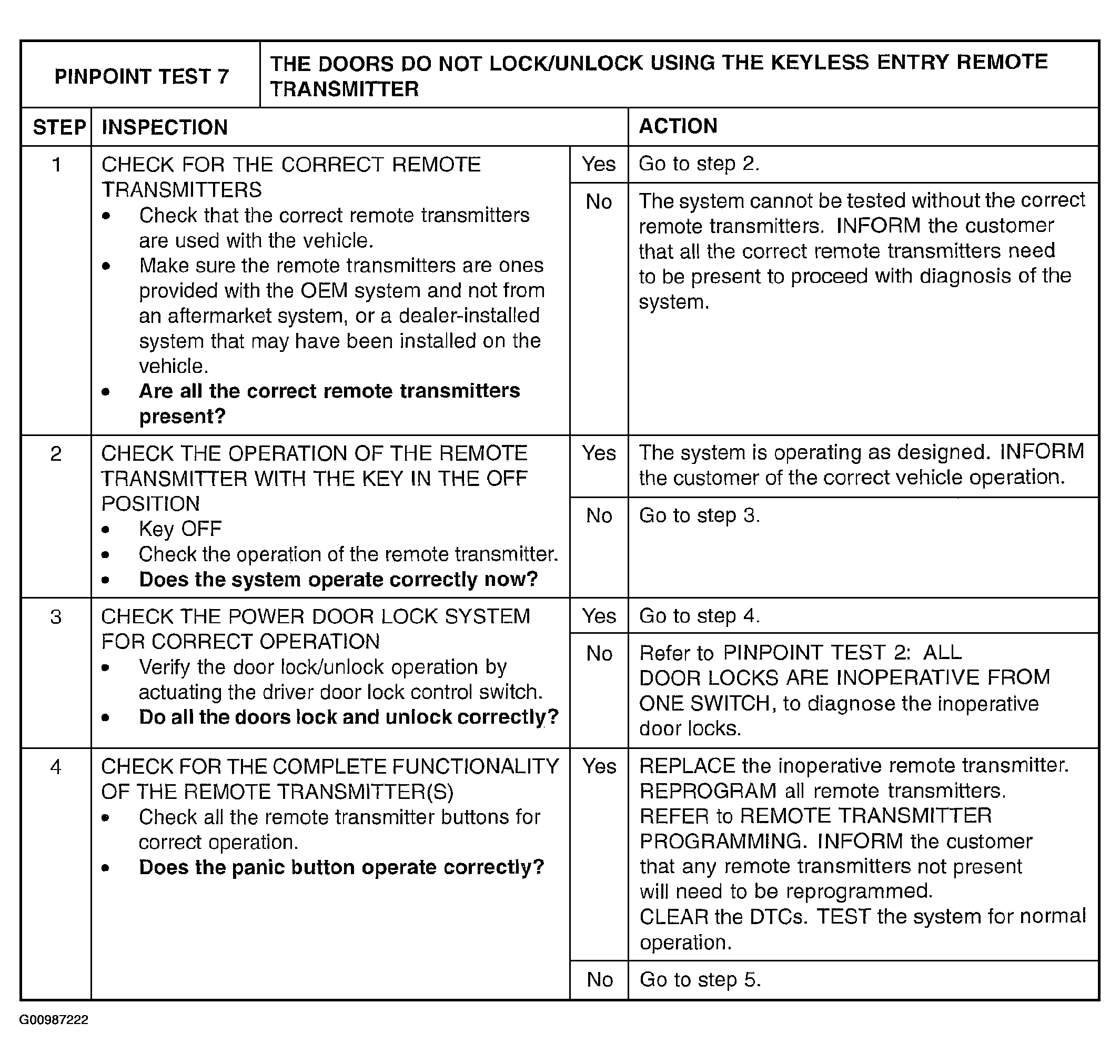

Fig 1: Pinpoint Test 7: The Doors Do Not Lock/Unlock Using The Keyless Entry Remote Transmitter - Inspection Procedure Chart (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

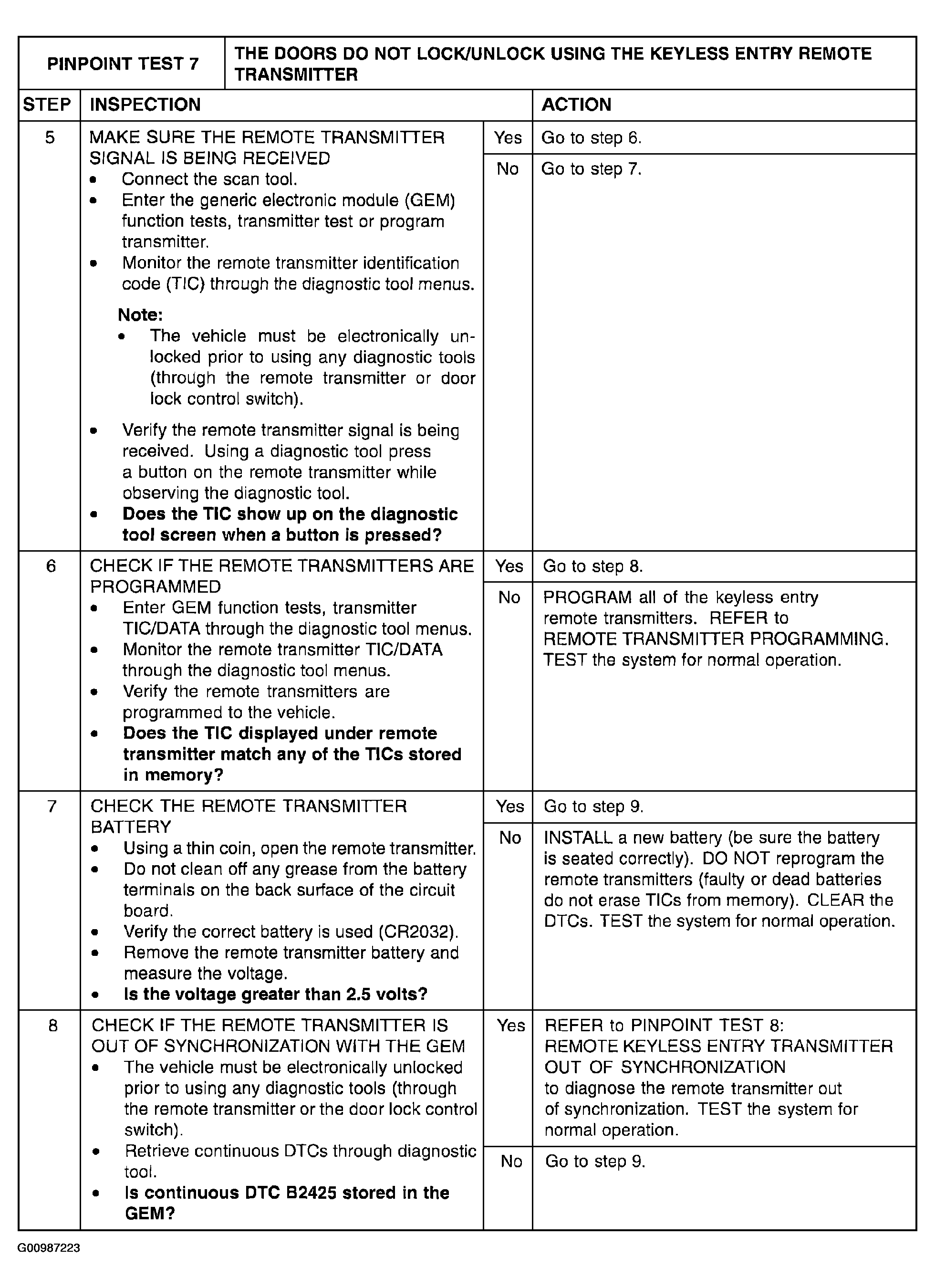

Fig 2: Pinpoint Test 7: The Doors Do Not Lock/Unlock Using The Keyless Entry Remote Transmitter - Inspection Procedure Chart (Steps 5-8)

Courtesy of MAZDA MOTORS CORP.

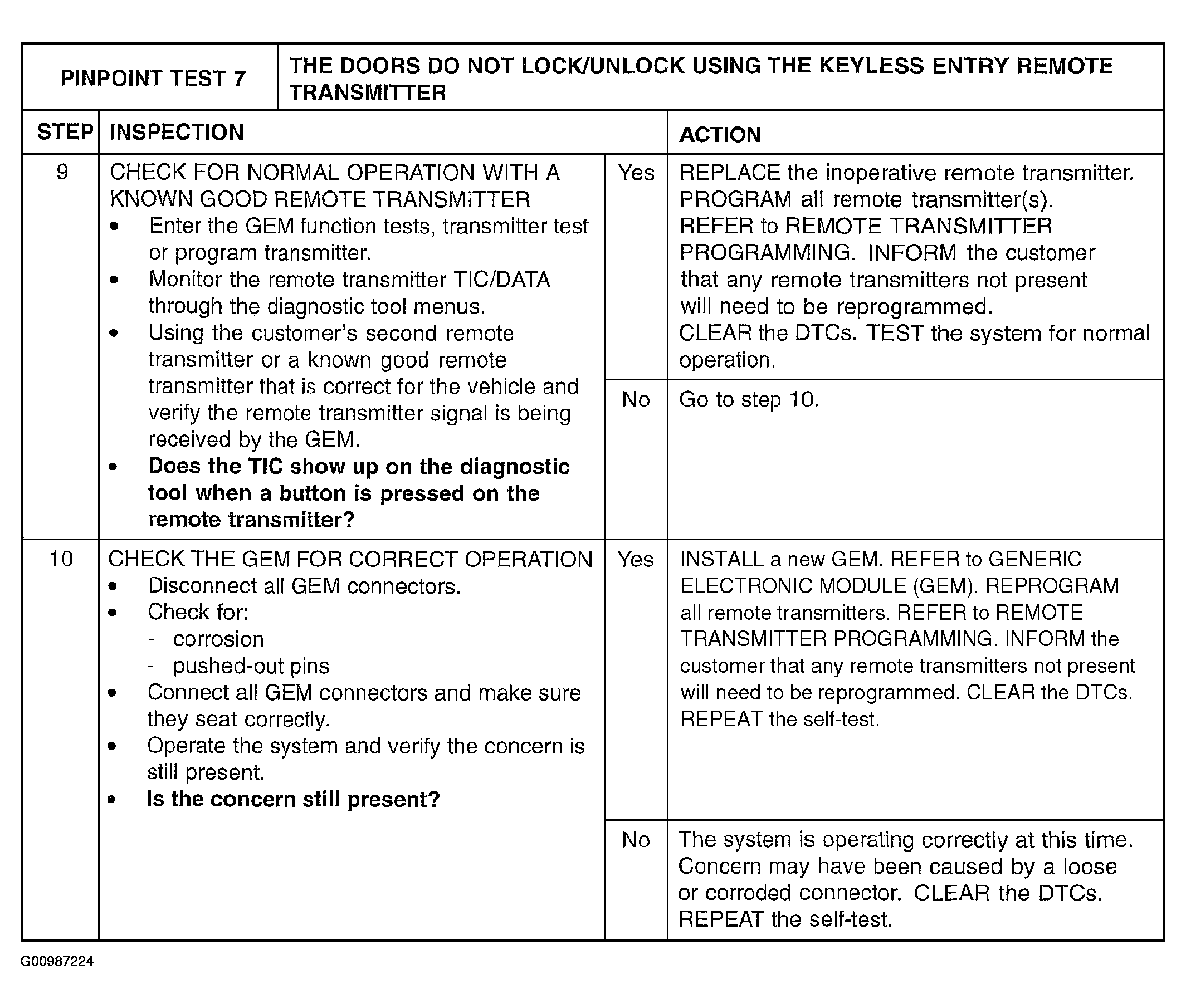

Fig 3: Pinpoint Test 7: The Doors Do Not Lock/Unlock Using The Keyless Entry Remote Transmitter - Inspection Procedure Chart (Steps 9-10)

Courtesy of MAZDA MOTORS CORP.
