Pinpoint Test 8: Remote Keyless Entry Transmitter Out Of Synchronization

NOTE:

• All remote transmitters must be present to begin diagnosis of the remote keyless entry system.

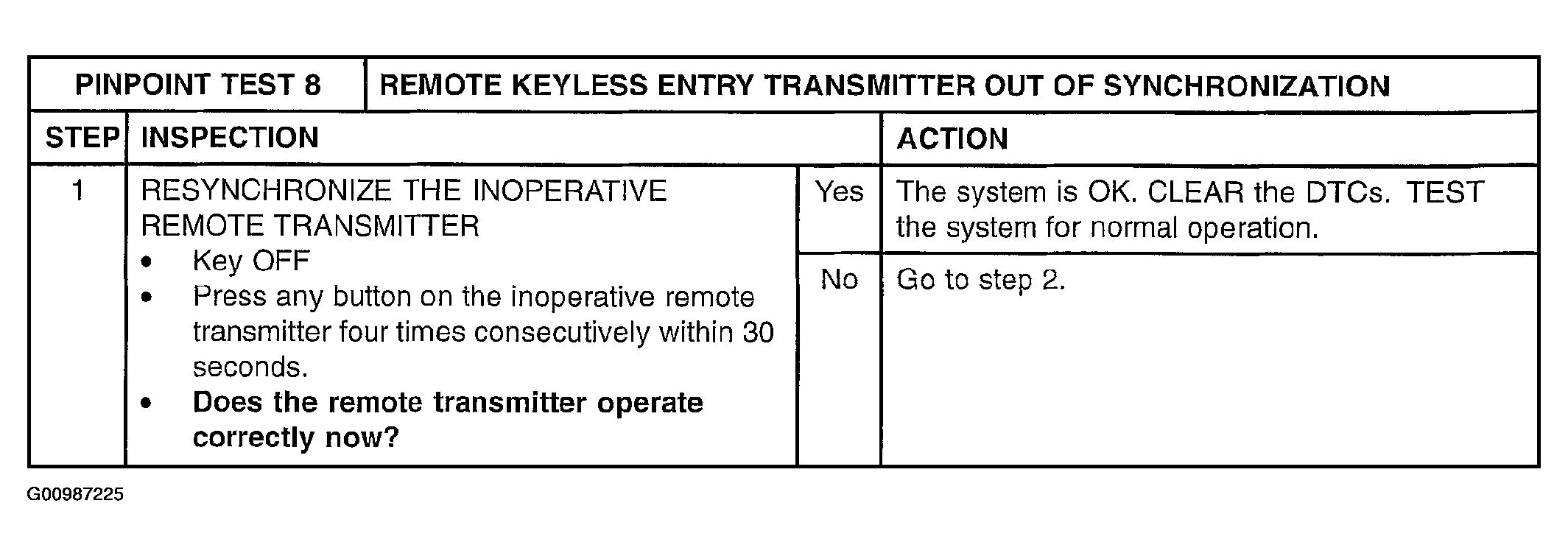

Fig 1: Pinpoint Test 8: Remote Keyless Entry Transmitter Out Of Synchronization - Inspection Procedure Chart (Step 1)

Courtesy of MAZDA MOTORS CORP.

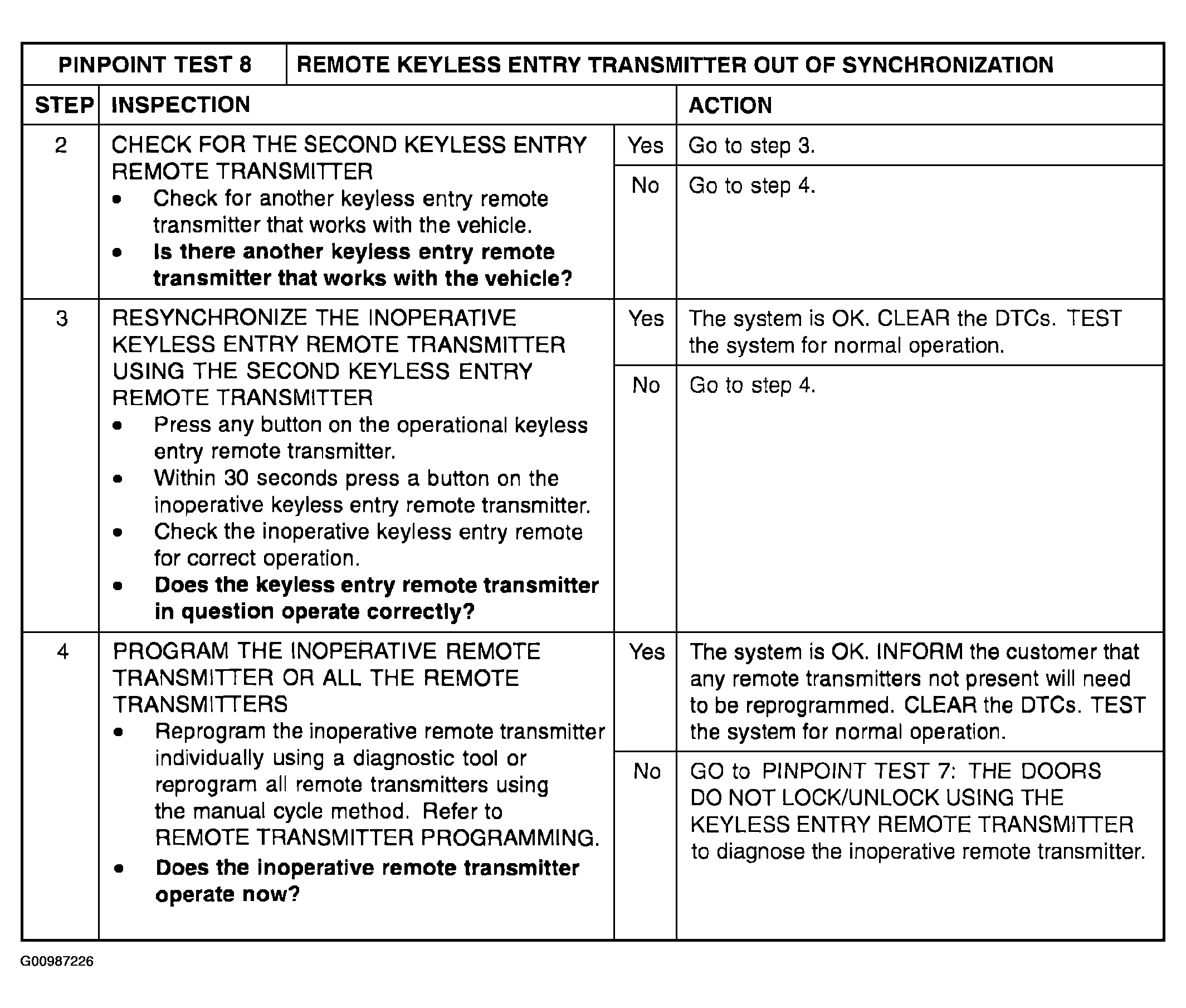

Fig 2: Pinpoint Test 8: Remote Keyless Entry Transmitter Out Of Synchronization - Inspection Procedure Chart (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.
