GEM Diagnostic Trouble Code (DTC) Index

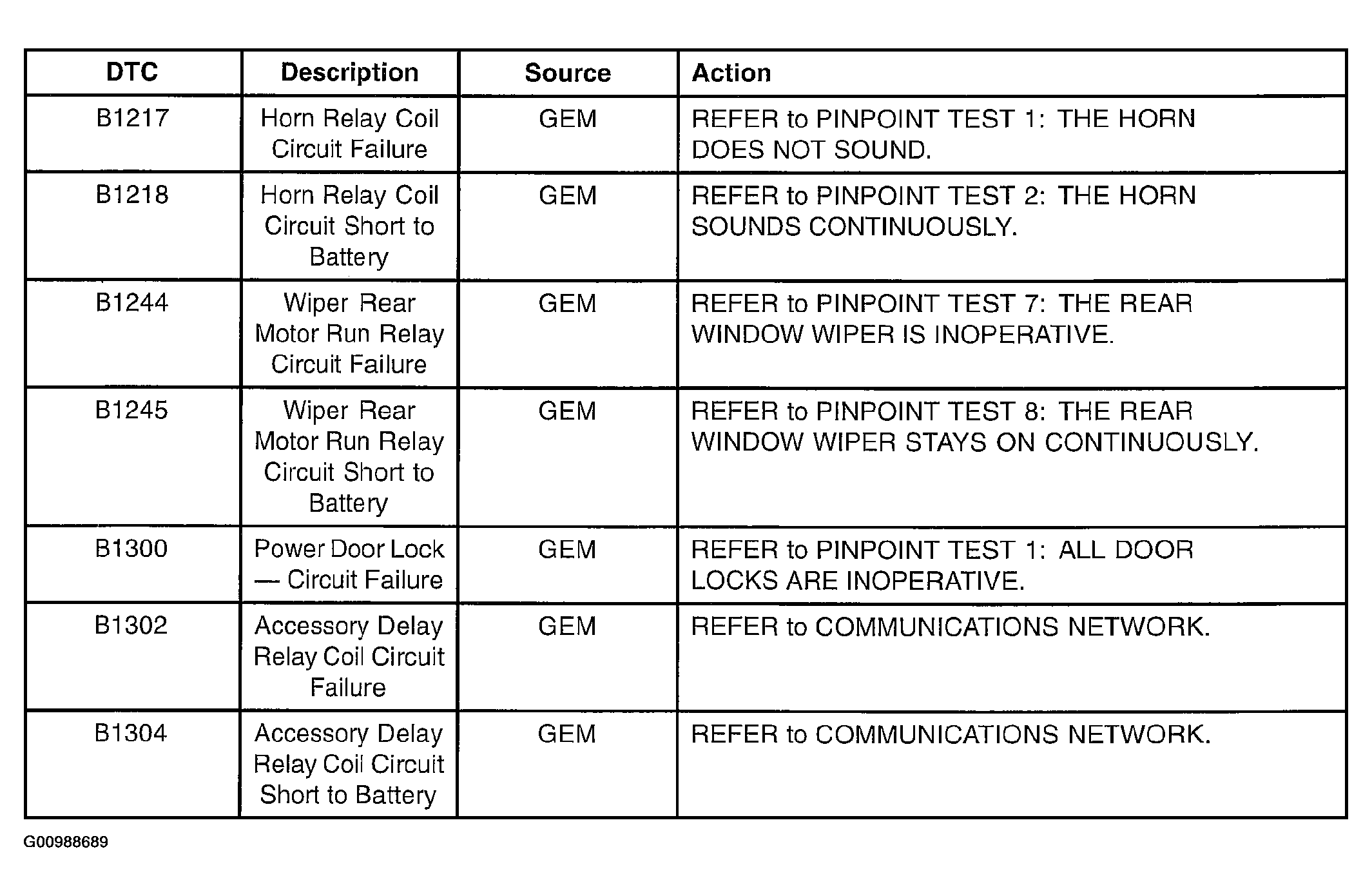

Fig 1: GEM Diagnostic Trouble Code Index (B1217, B1218, B1244, B1245, B1300, B1302 & B1304)

Courtesy of MAZDA MOTORS CORP.

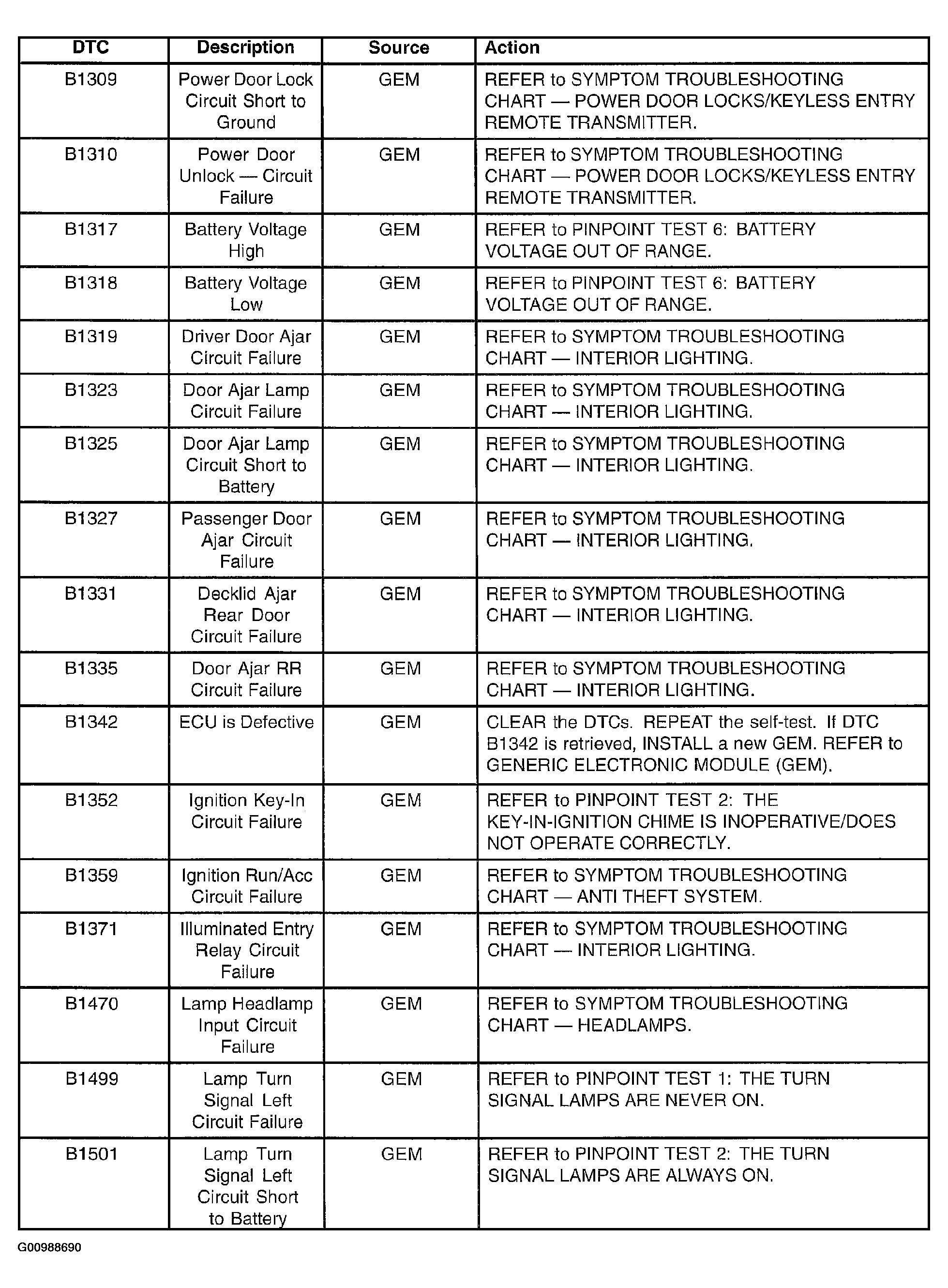

Fig 2: GEM Diagnostic Trouble Code Index (B1309, B1310, B1317, B1318, B1319, B1323, B1325, B1327, B1331, B1335, B1342, B1352, B1359, B1372, B1470, B1499 & B1501)

Courtesy of MAZDA MOTORS CORP.

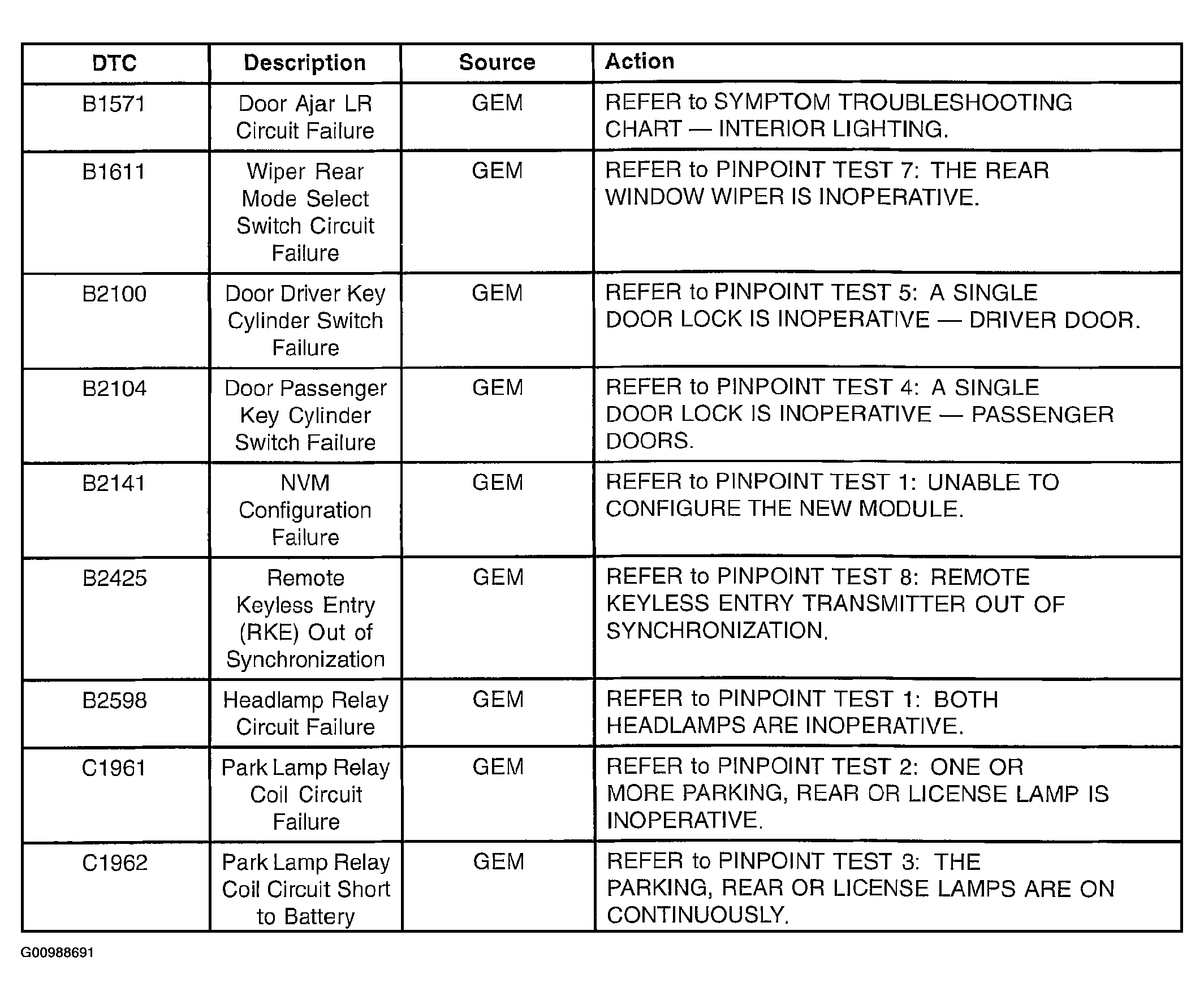

Fig 3: GEM Diagnostic Trouble Code Index (B1571, B1611, B2100, B2104, B2141, B2425, B2598, C1961 & C1962)

Courtesy of MAZDA MOTORS CORP.

DTC TABLE

DTC	Description
B1302	Accessory Delay Relay Coil Circuit Failure
B1304	Accessory Delay Relay Coil Circuit Short to Battery
