Pinpoint Test 1: No Communication With The Generic Electronic Module (Gem)

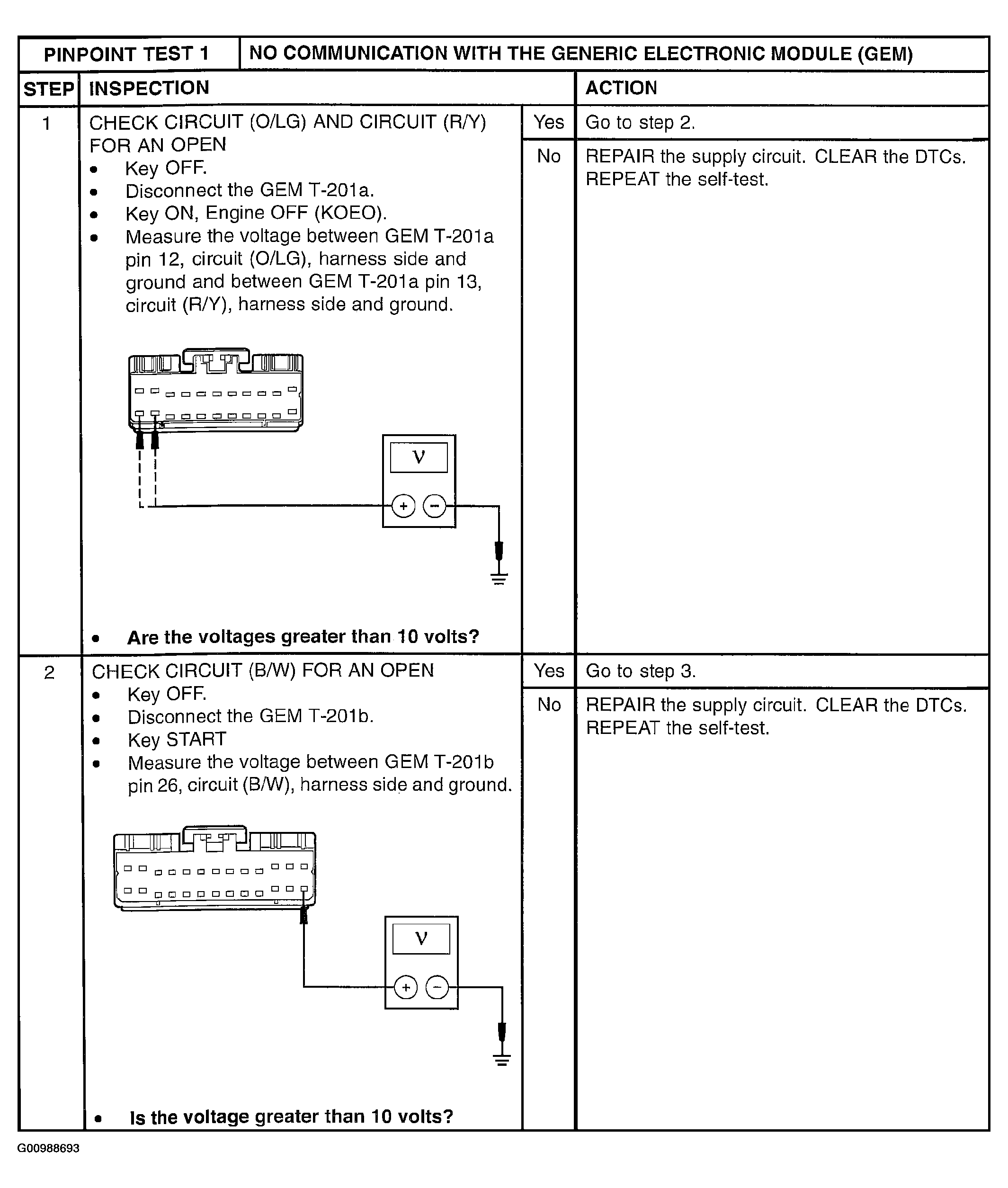

Fig 1: Pinpoint Test 1: No Communication With The Generic Electronic Module (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

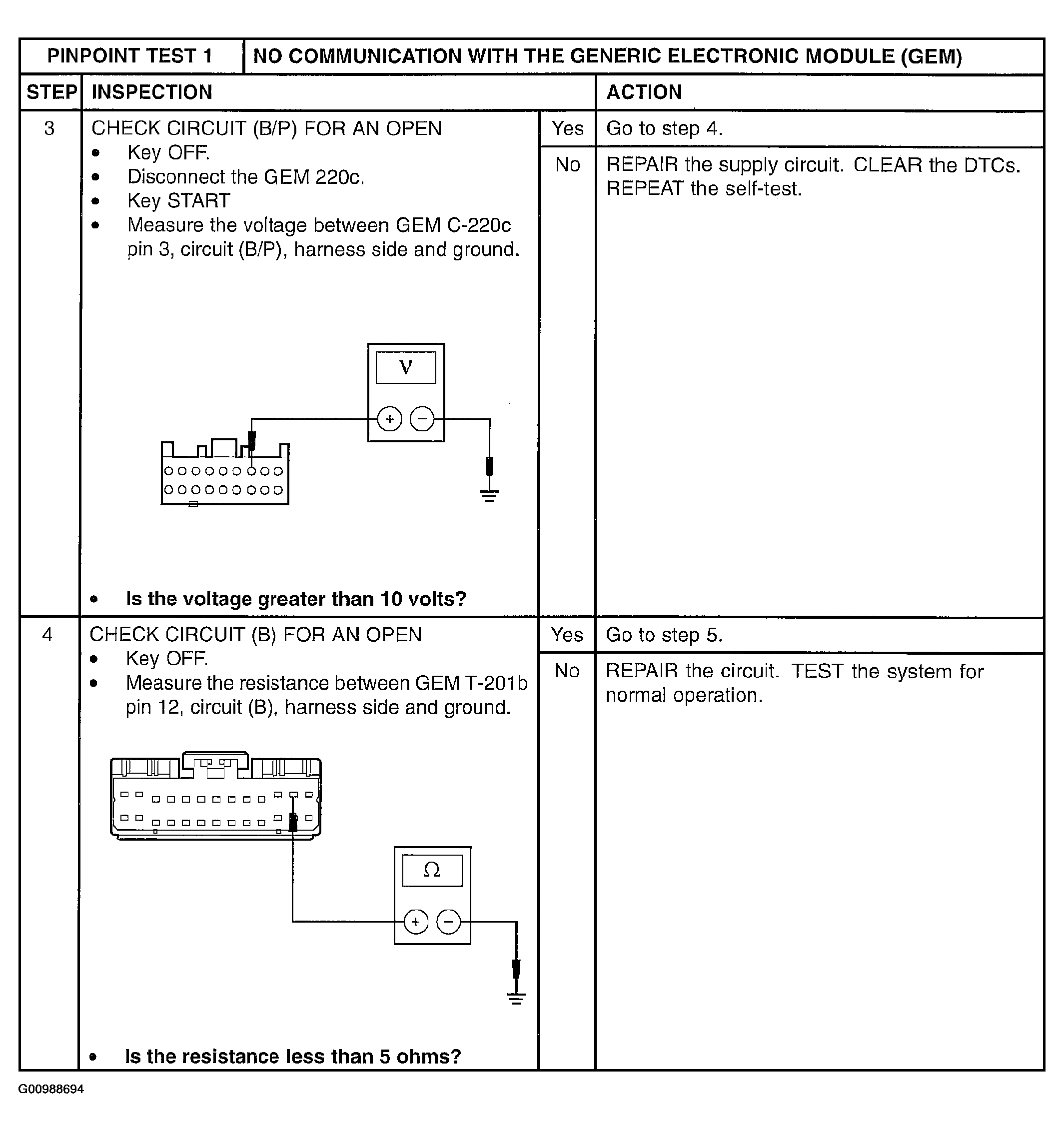

Fig 2: Pinpoint Test 1: No Communication With The Generic Electronic Module (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

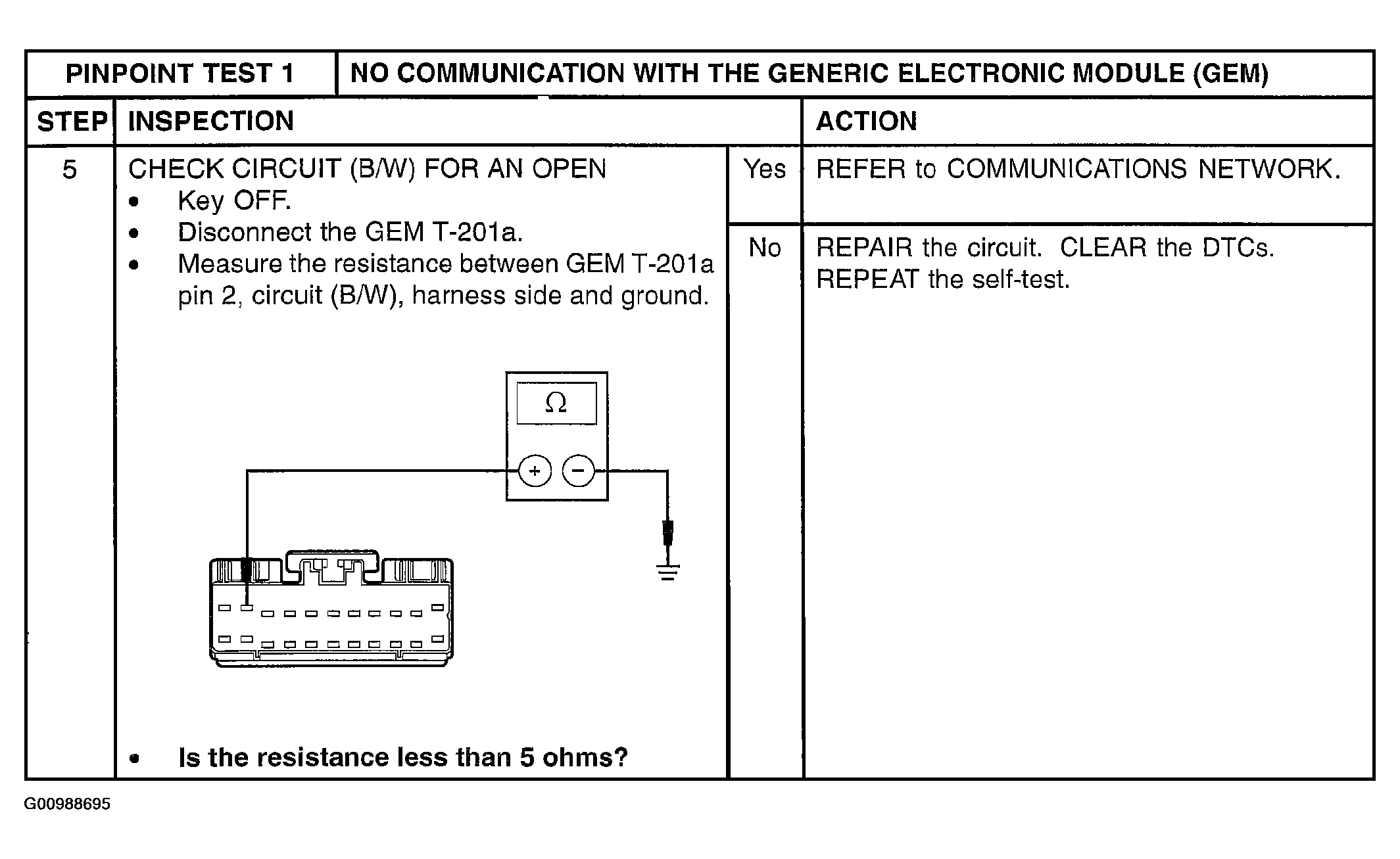

Fig 3: Pinpoint Test 1: No Communication With The Generic Electronic Module (Step 5)

Courtesy of MAZDA MOTORS CORP.
