Front

Brake Pad Service

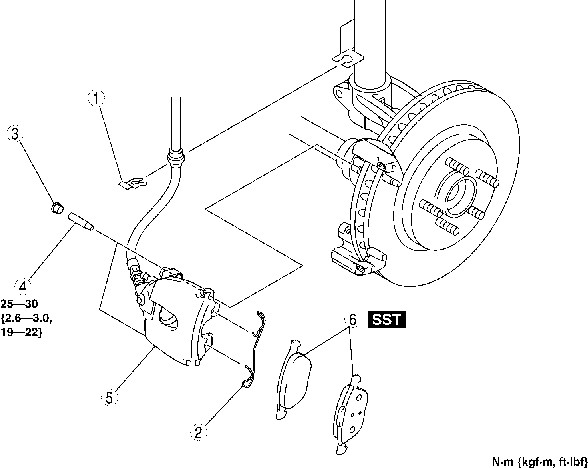

1. Remove parts using the sequence shown.
2. Installation is opposite of removal.
