Variable Valve Timing Solenoid: Service and Repair

OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [L3]
1. Disconnect the negative battery cable.
2. Remove the following parts.
^ Plug hole plate
^ Ignition coils
^ Oil control valve (OCV) connector
^ Ventilation hose
^ Cylinder head cover

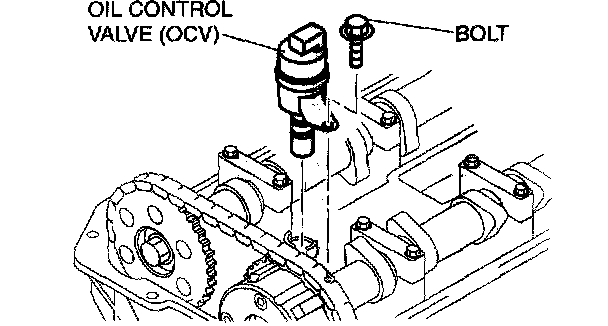

^ Oil control valve (OCV)





3. Install in the reverse order of removal.
Tightening torque 8.0 - 11.5 Nm (81.6 - 117.2 kgf-cm, 70.9 - 101.7 inch lbs.)
