Console Removal/Installation

Detach clips A, B and C and remove the upper panel.

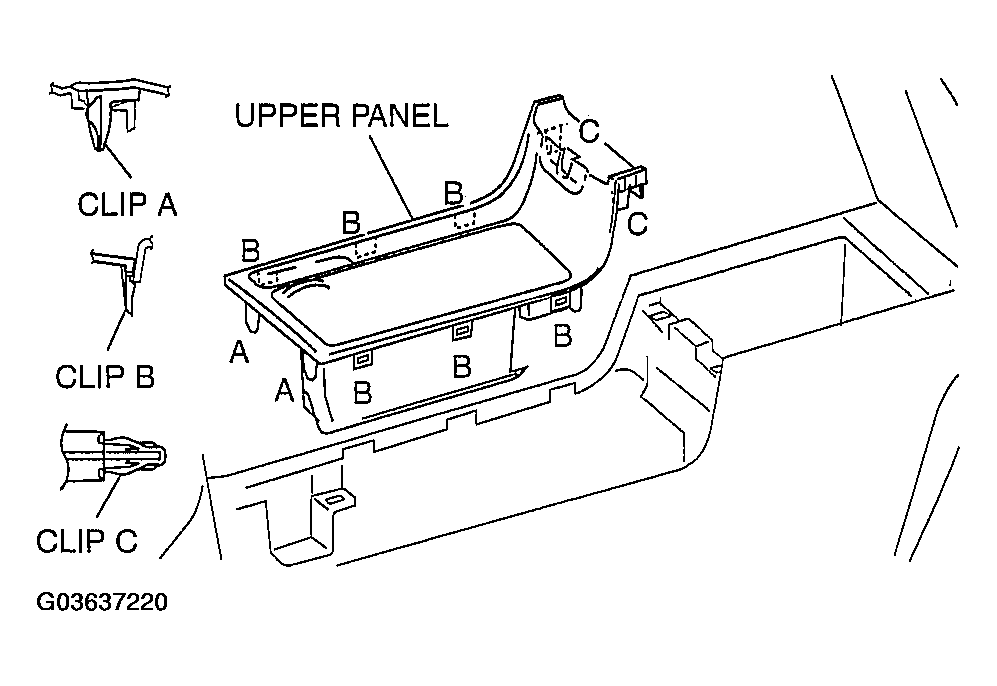

Fig 1: Detaching Clips A, B & C Of Console Upper Panel
Courtesy of MAZDA MOTORS CORP.
Detach clips D, E and F and remove the boot panel.

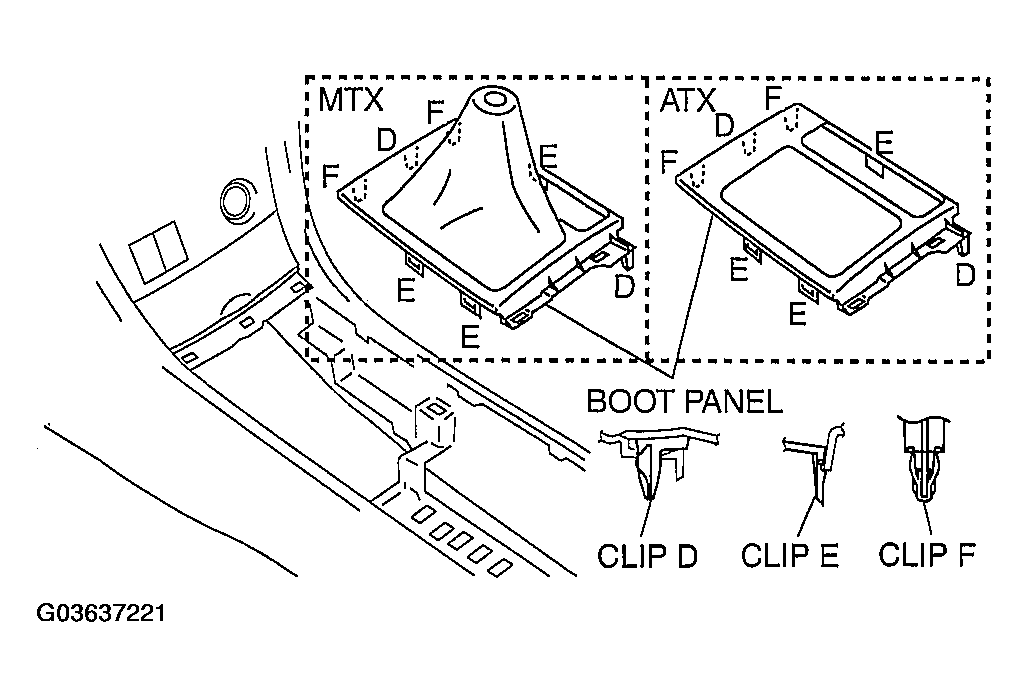

Fig 2: Detaching Clips D, E & F Of Boot Panel
Courtesy of MAZDA MOTORS CORP.
Remove screws A.
Detach clips G.
Disconnect the cigarette lighter connector.

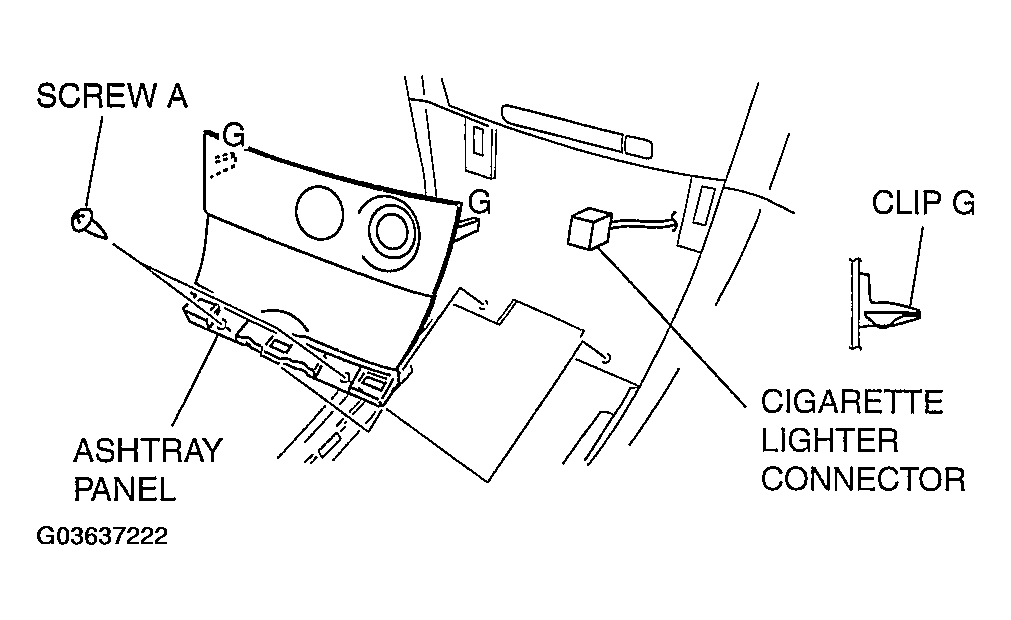

Fig 3: Disconnecting Cigarette Lighter Connector
Courtesy of MAZDA MOTORS CORP.
Remove the ashtray illumination, then remove the ashtray panel.
Remove the screws B.
Detach tabs H and remove the console.

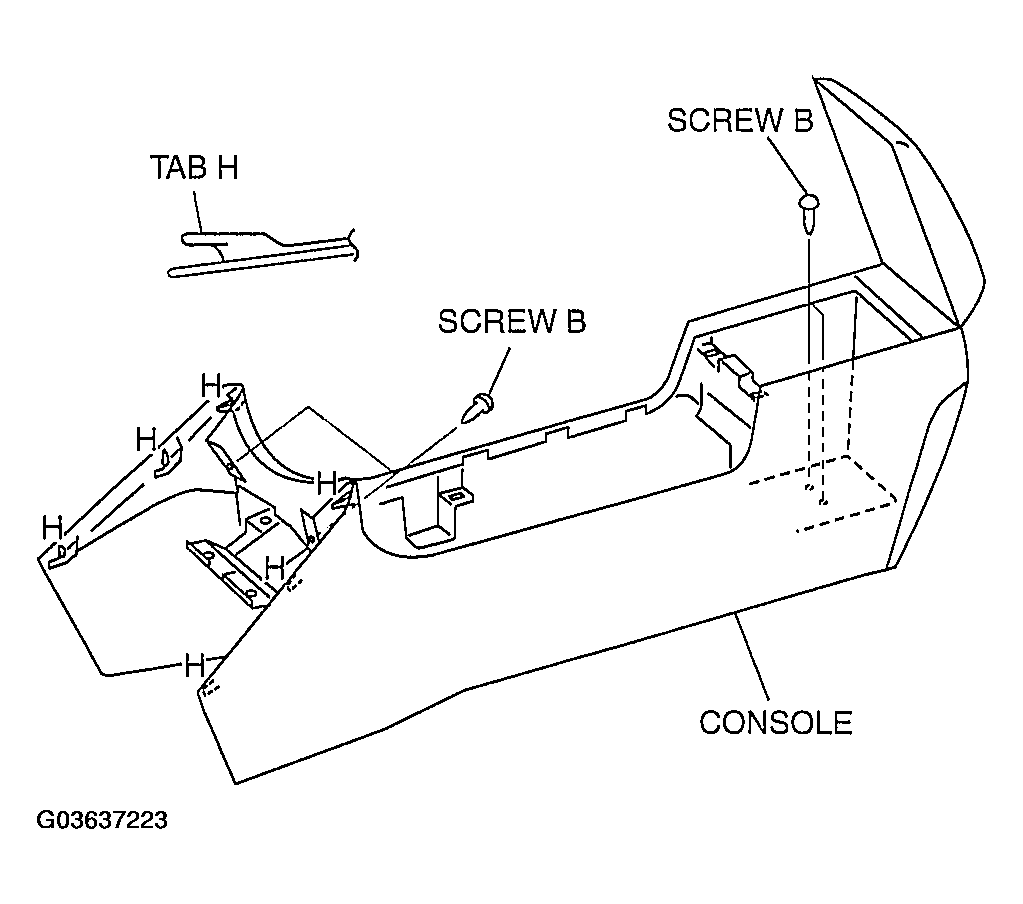

Fig 4: Detaching Tabs H & Remove Console
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
