Outer Mirror Glass Assembly Note

  1. Press area A of the mirror glass into the base to attach pin A.
  2. Press areas B of the mirror glass into the base to attach pins B.

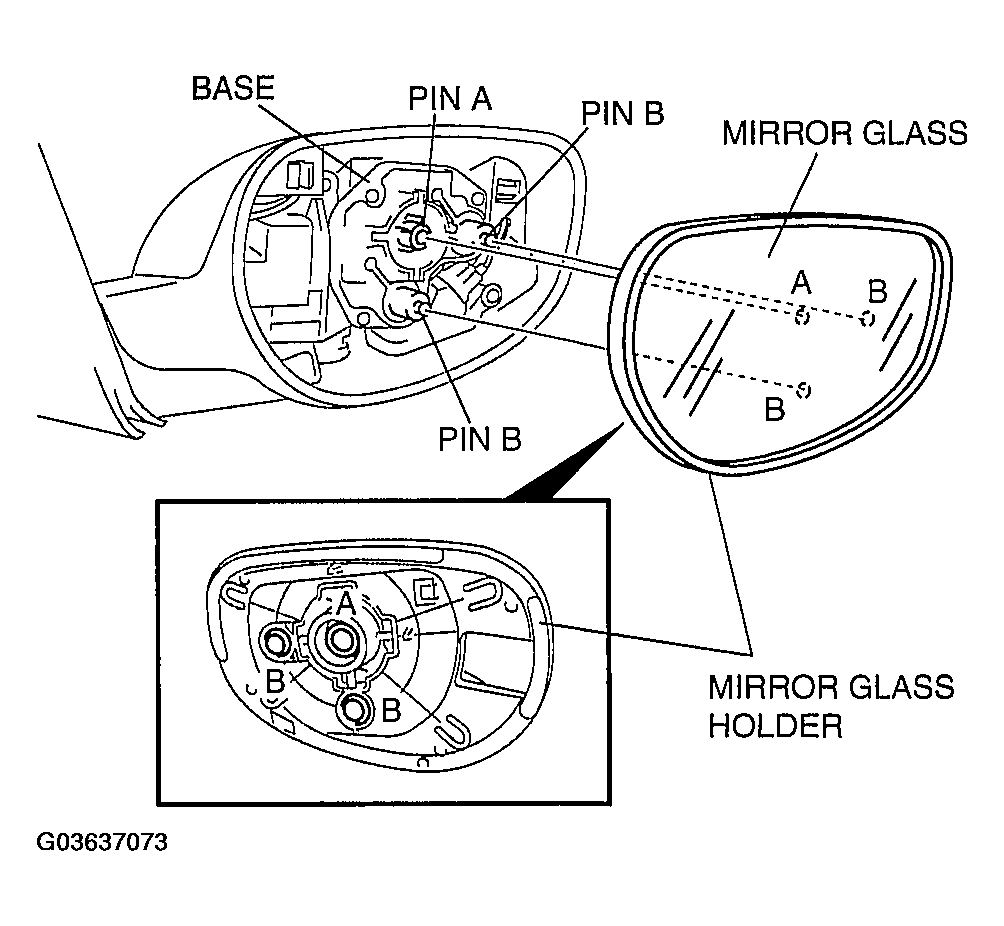

    Fig 1: Attaching Mirror Glass Base To Pins A & B
    G03637073Courtesy of MAZDA MOTORS CORP.
