Battery Cover Installation Note

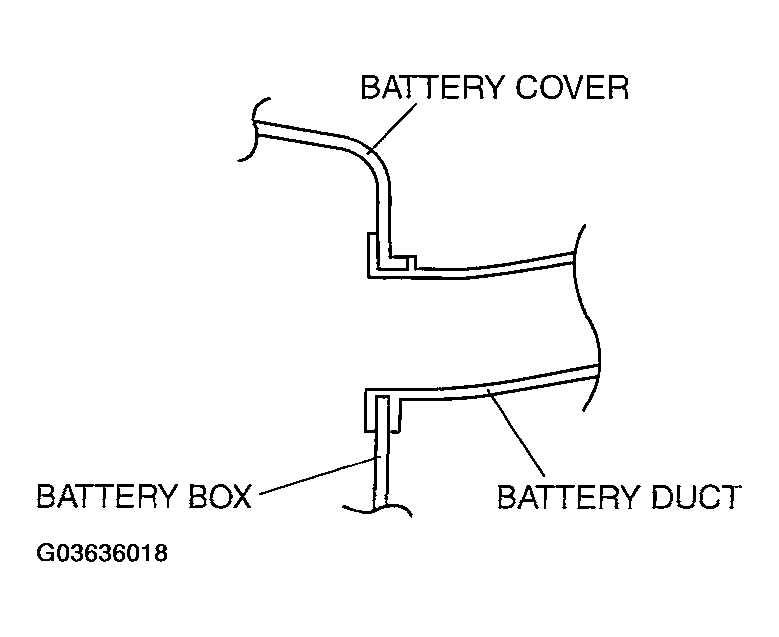

  1. Install the battery duct between the battery cover and the battery box.
    Fig 1: Installing Battery Duct Between Battery Cover And Battery Box
    G03636018Courtesy of MAZDA MOTORS CORP.

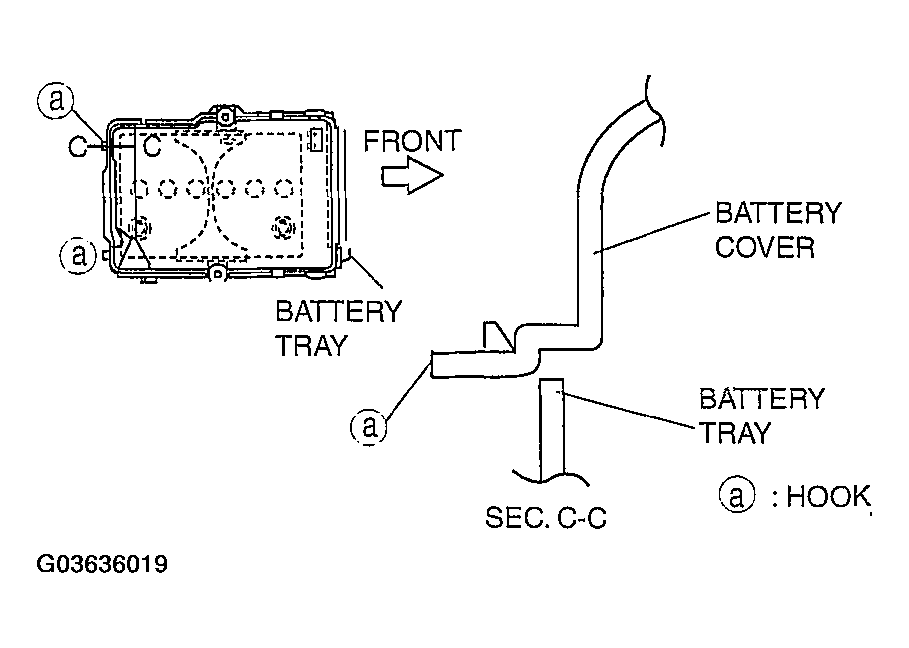

  2. Install with the battery cover hooks A aligned with the battery tray holes at two points.
    Fig 2: Aligning Battery Cover Hooks A With Battery Tray Holes
    G03636019Courtesy of MAZDA MOTORS CORP.

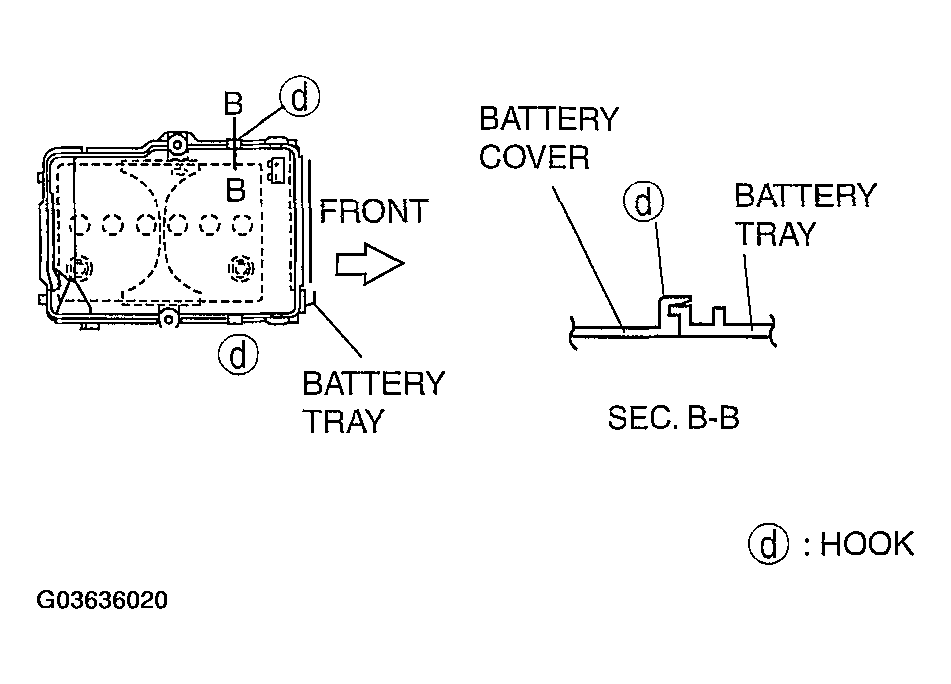

  3. Install with the battery cover hooks D aligned with the battery tray flange at two points.
    Fig 3: Aligning Battery Cover Hooks D With Battery Tray Flange
    G03636020Courtesy of MAZDA MOTORS CORP.

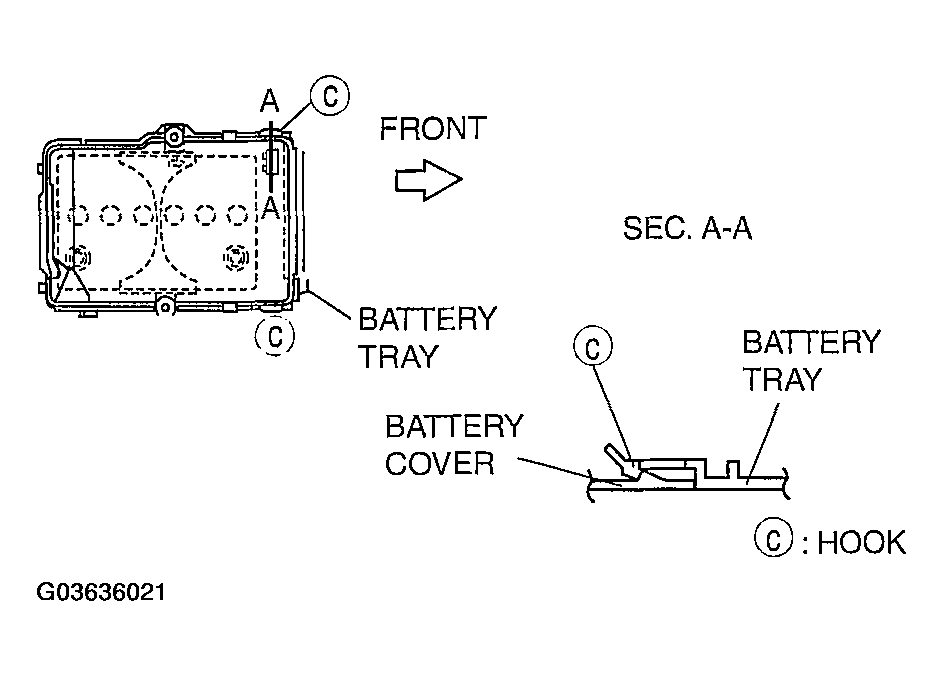

  4. Set the battery cover to the battery tray hooks C at two points.
    Fig 4: Setting Battery Cover To Battery Tray Hooks C
    G03636021Courtesy of MAZDA MOTORS CORP.
