Generator Disassembly/Assembly

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the figure.

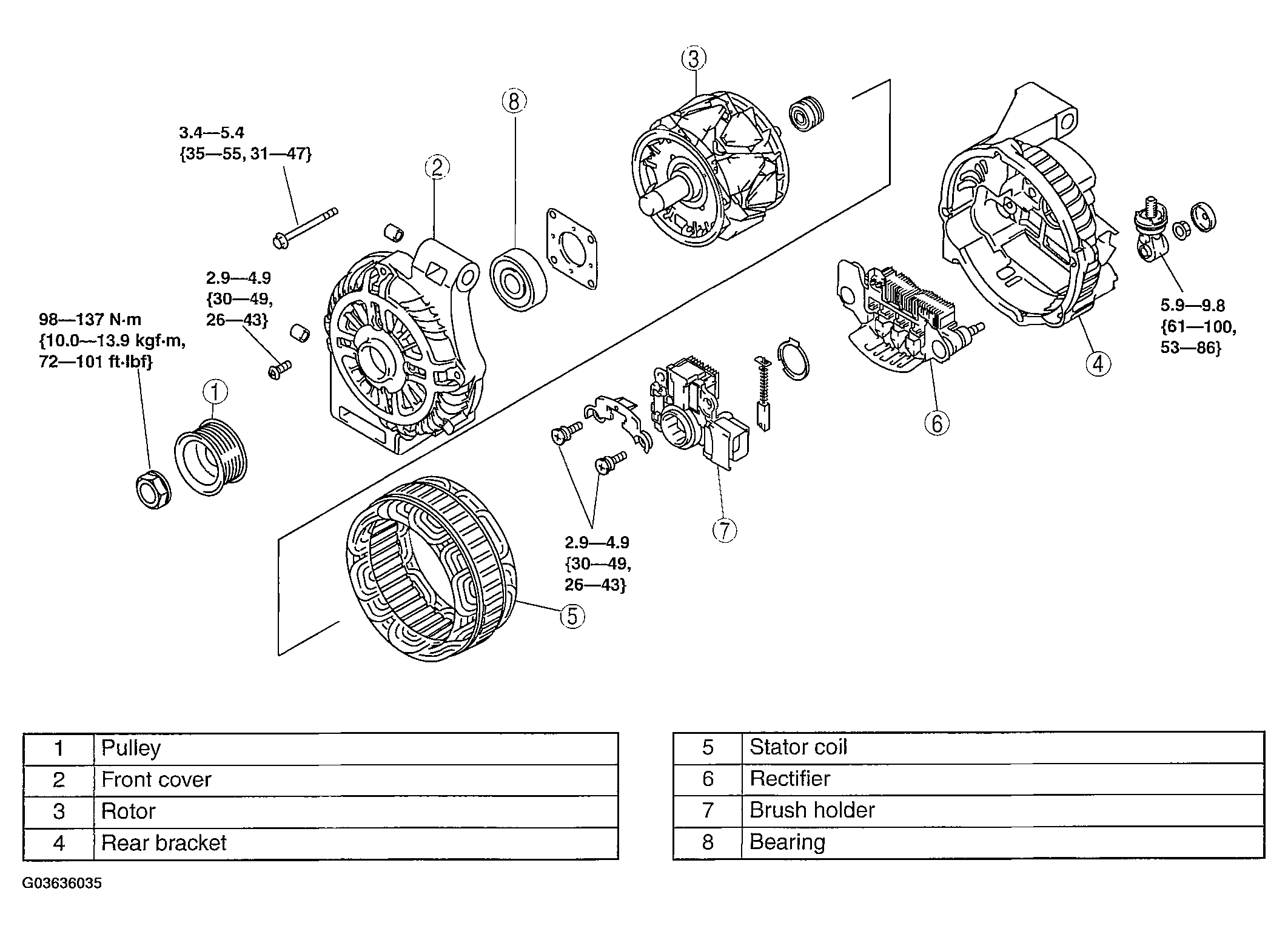

    Fig 1: Generator Disassembly Sequence
    G03636035Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
