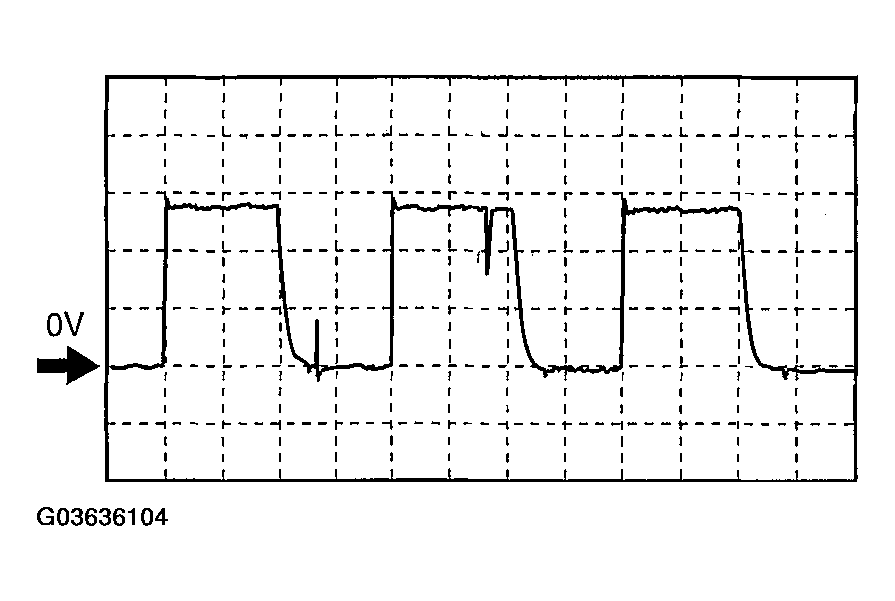

Generator field coil control signal
PCM terminals
Oscilloscope setting
- 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
- Idle after warm up (engine speed approx. 650 rpm, no load)
Courtesy of MAZDA MOTORS CORP.
