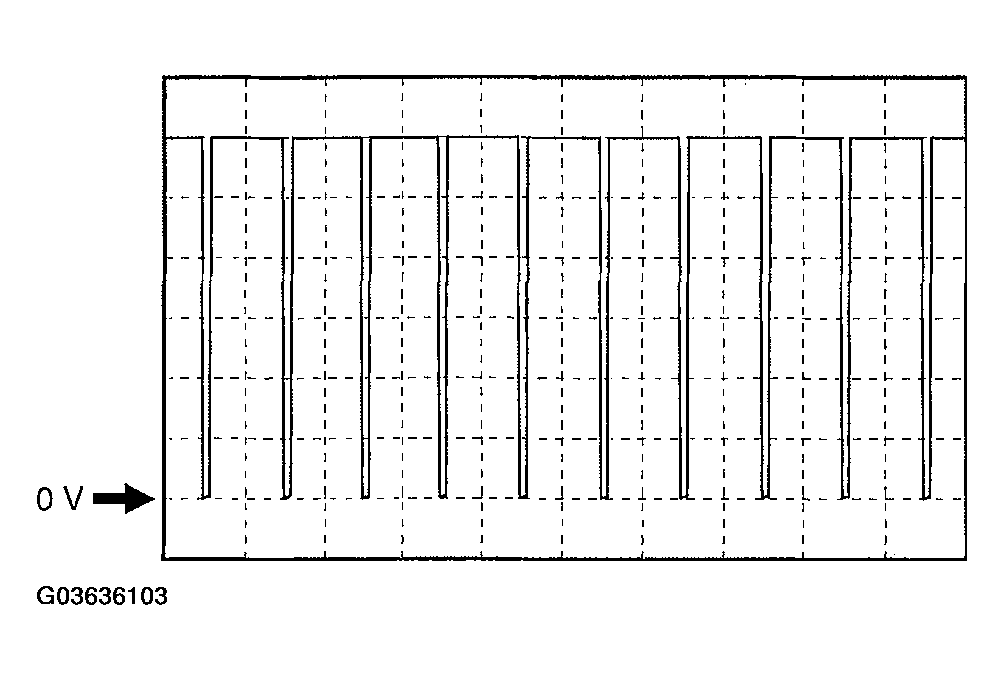

Purge control signal
PCM terminals
- 2AN (+)-Negative battery terminal (-)
Oscilloscope setting
- 2 V/DIV (Y), 0.1 s/DIV (X), DC range
Vehicle condition
Courtesy of MAZDA MOTORS CORP.
