Atomization Inspection

  1. Inspect the atomization status.
    • If not normal, replace the fuel injector.

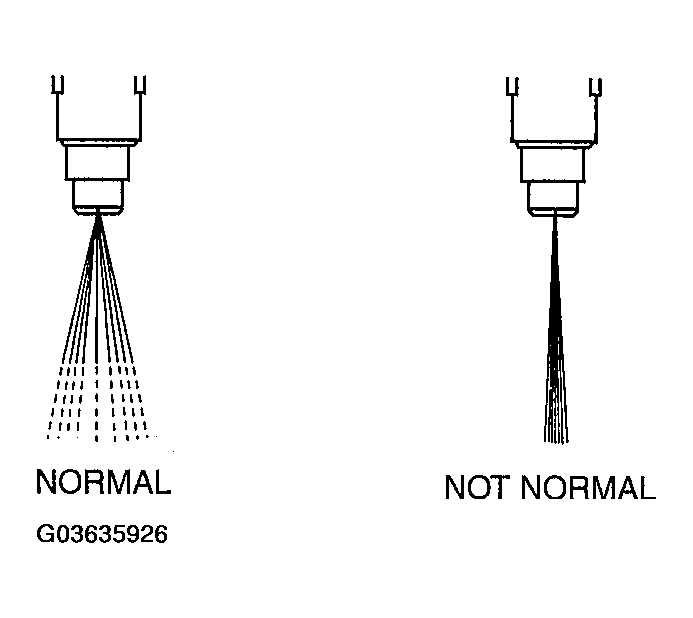

    Fig 1: Inspecting Atomization Status
    G03635926Courtesy of MAZDA MOTORS CORP.
