Engine Technical Data: Notes

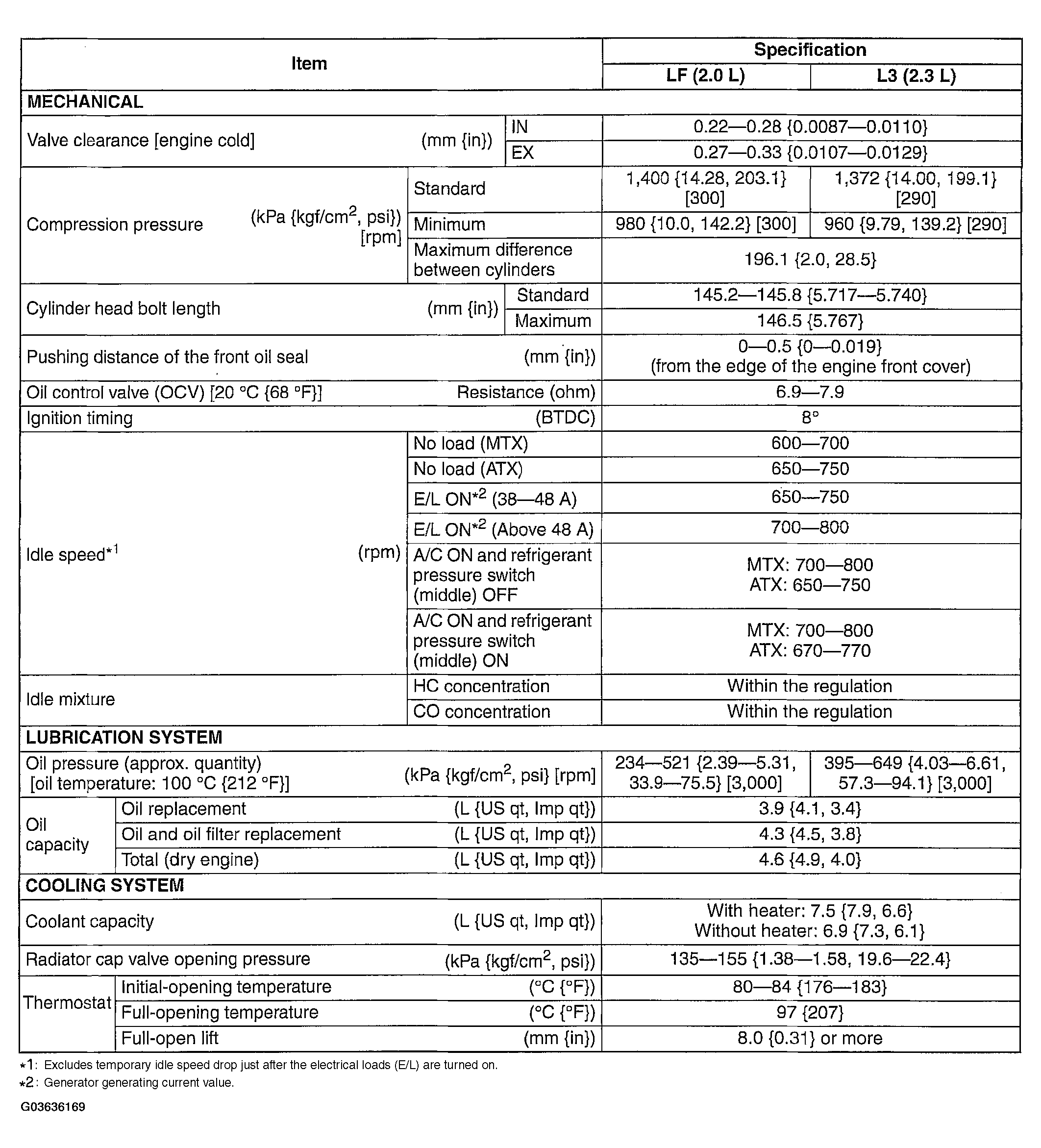

Fig 1: Engine Technical Data (1 Of 2)
G03636169Courtesy of MAZDA MOTORS CORP.

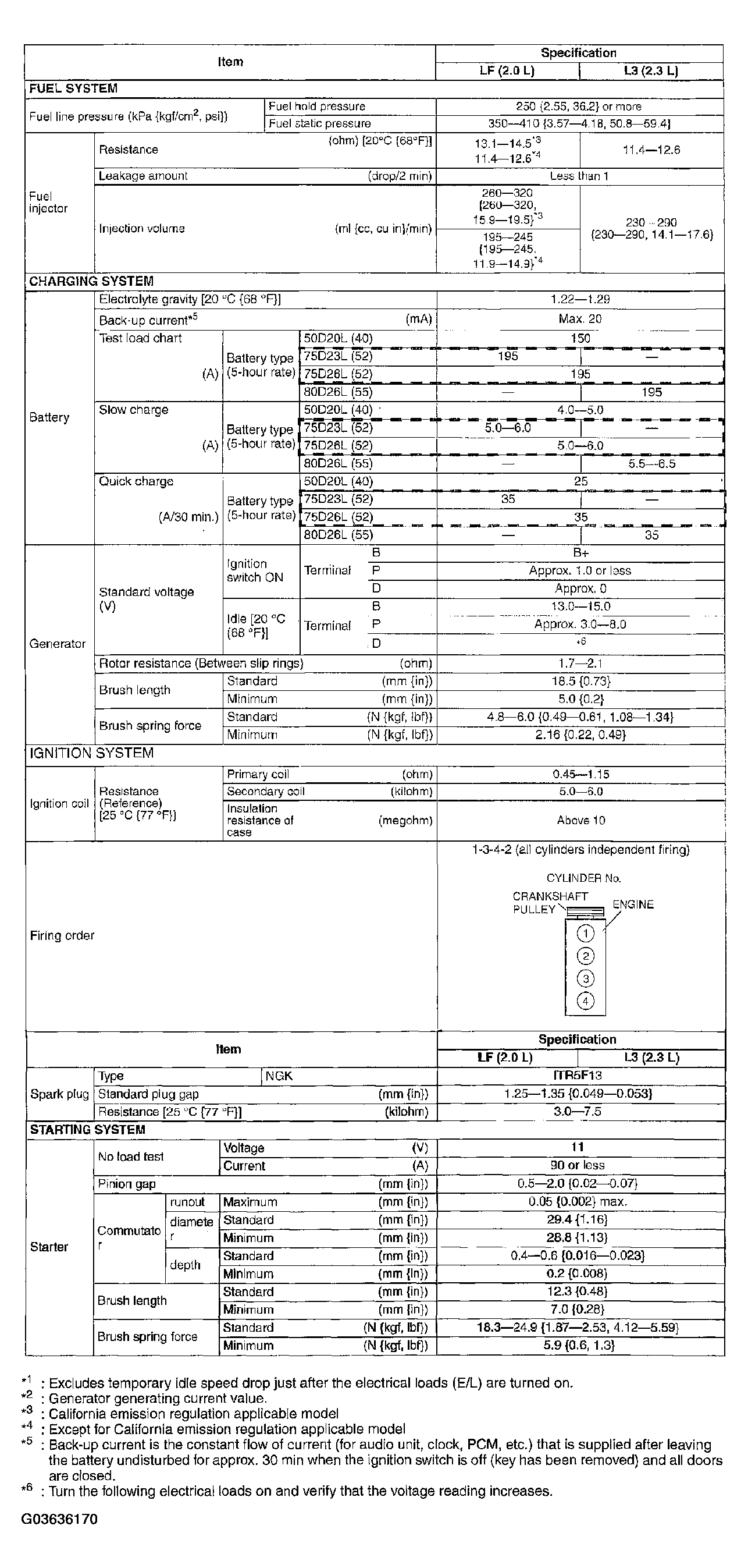

Fig 2: Engine Technical Data (2 Of 2)
G03636170Courtesy of MAZDA MOTORS CORP.
